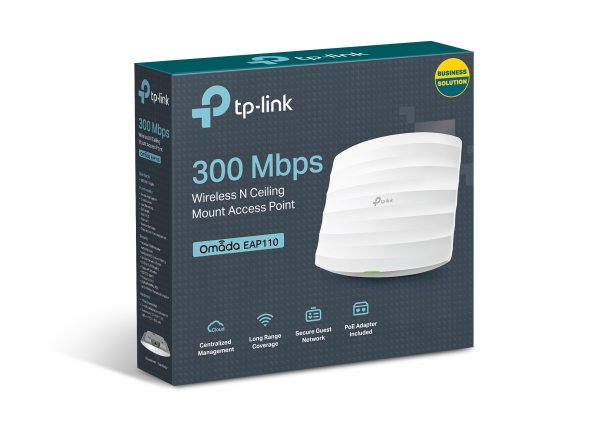

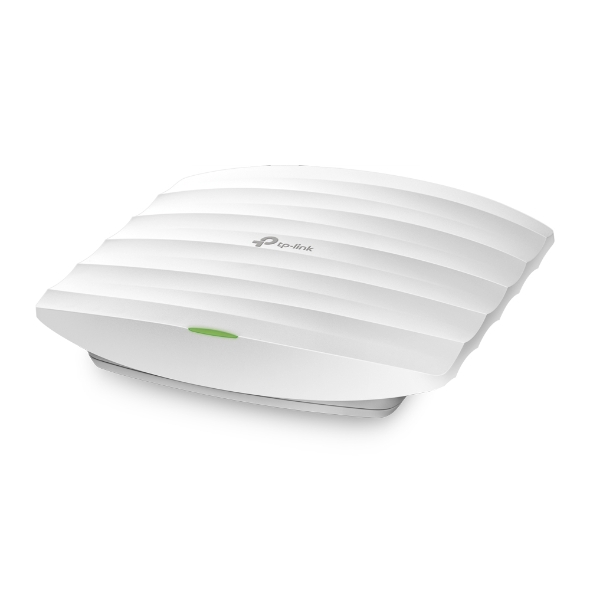

TP Link EAP110 Omada 300Mbps 2.4GHz Wireless Ceiling Mount Access Point
Product Ref: EAP110
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters
- Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Multi-SSID divides multiple wireless networks for different users
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management vlan for an enhanced network management
Technical Specifications
Hardware specifications
Interface

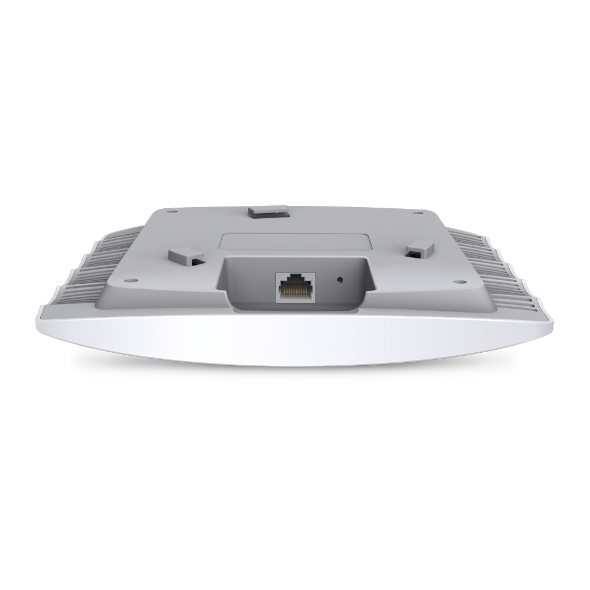

- 1 x Fast Ethernet (RJ45) Port (Supports Passive PoE)
Button
- Reset
Power Supply
- 24VDC / 0.6A Passive PoE Supply
Power Consumption
- 3.12 W
Dimensions ( W x D x H )
- 8.5 × 1.8 × 1.1 in. (216 × 46 × 27 mm)
Antenna Type
- 2 x 3dBi External Omni waterproof
Mounting
- Pole / Wall Mounting (Kits included)
Wireless specifications
Wireless Standards
- IEEE 802.11n/g/b
Frequency
- 2.4GHz
Signal Rate
- 11n: Up to 300Mbps(dynamic)
- 11g: Up to 54Mbps(dynamic)
- 11b: Up to 11Mbps(dynamic)
Transmit Power
- CE:
- <20dBm (EIRP)
- FCC:
- <22dBm
Wireless Functions
- Multiple SSIDs (up to 8)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Load Balance
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise
- WPA-PSK / WPA2-PSK
Management
Omada App
- Yes
Omada Controller Software
- Yes
Centralised Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300 - sold separately)
- Omada Hardware Controller (OC200 - sold separately)
- Omada Software Controller
Cloud Access
- Yes, through OC300/OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- Yes
System Logging Local/Remote Syslog
- Yes
Telnet
- Yes
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Other specifications
Certification
- CE, FCC, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment
- Operating Temperature: -30°C~65°C (-22°F~149°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- 1 x TP-Link EAP110-Outdoor
- 1 x Passive PoE Adapter
- 1 x Power Cord
- 1 x Set of Mounting Kits
- 1 x Waterproof Rubber Insert
- 2 x Waterproof Antennas
- 1 x Installation Guide
