BenQ W5700 4K Home Cinema Projector 1800 ANSI Lumens, UHD/HDR, DLP Projector

Product Ref: 9H.JKV77.1HE

MPN: 9H.JKV77.1HE

  • True 4K UHD 8.3M Pixel Resolution
  • CinematicColor for cinema industry’s 100% DCI-P3
  • HDR-PRO technology with HDR10/HLG compatibility

https://projectorcalculator.benq.com/

Technical Specifications

Display

  • Brightness (ANSI lumens)1800
  • Resolution4K UHD (3840×2160)
  • Native Aspect Ratio16:9
  • Contrast Ratio (FOFO)100,000:1
  • Display Color30-bit (1.07 billion colors)
  • Light SourceLamp
  • Light Source Lifea. Normal 4000 hrs, c. SmartEco 10000 hrs, b. ECO 10000 hrs

Optical

  • Throw Ratio1.36 ~ 2.18
  • Zoom Ratio1.6x
  • LensF/# = 1.81 - 2.1, f = 14.3 - 22.9 mm
  • Projection Offset (Full-Height)0%
  • Keystone Adjustment1D, Vertical ± 40 degrees
  • Lens Shift Vertical± 60%
  • Lens Shift Horizontal± 23%


  • DCI-P3 Coverage100%
  • Rec. 709 Coverage100%
  • Picture Modes3D, Bright, Cinema (Rec.709), D. Cinema, HDR, HLG, ISF Day, ISF Night, Silence, User, Vivid TV

Compatibility

  • Input Lag51 ms (1080P 60Hz)
  • Resolution SupportVGA (640 x 480) to 4K UHD (3840 x 2160)
  • Horizontal Frequency15K~135KHz
  • Vertical Scan Rate23~120Hz

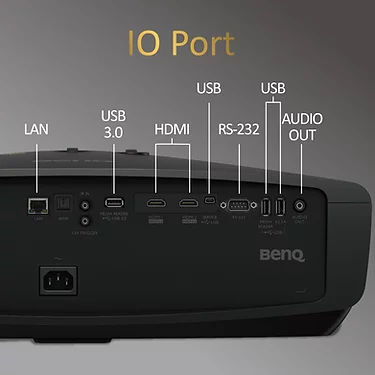

I/O Interface

  • HDMI in(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
  • LAN (RJ45)(x1)
  • USB Type A(x2), USB Type A-1 (2.0/Power Supply2.5A/Service), USB Type A-2 (2.0/Power Supply1.5A/Reader), USB Type A-3 (2.0/Power Supply2.5A)
  • USB Type Mini BUSB Type Mini B-1(service)
  • RS232 in (DB-9pin)(x1)
  • Wired Remote in (3.5mm Mini Jack)(x1)
  • DC 12V Trigger (3.5mm Jack)(x1)

Audio

  • SpeakerNo Speaker
  • Audio out (3.5mm Mini Jack)(x1)
  • S/PDIFMulti-Channel, RAW

Environment

  • Operating Temperature0~40℃
  • Power SupplyAC 100 to 240 V, 50/60 Hz
  • Typical Power Consumption (110V)330W
  • Stand-by Power Consumption<0.5W
  • Network Stand-by Power Consumption<2W
  • Acoustic Noise (Typ./Eco.)(dB)32/26

Accessories

  • Wireless USB dongle(Optional)
  • Remote Control w/ BatteryRCV016
  • Power Cord (by region)x1 (3.0M)
  • User Manual CD1 (27L)
  • 3D GlassesDGD5, (Optional)
  • Installation Guide1 (8L)
  • Warranty Card (by region)Yes
  • Lens coverYes
  • Universal Ceiling MountCM00G3

Dimension & Weight

  • Dimensions (WxHxD) (mm)492 x 168 x 349
  • Net Weight (kg)6.5kg

Projection System

  • Projection SystemDLP
