• Blustream USB 2.0 Extender set - 50m 4x USB-A devices to 1x USB-B host, PoC
  • UEX50B-KIT 1

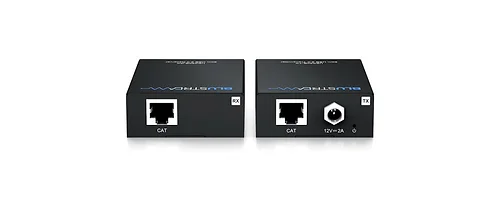

Blustream USB 2.0 Extender set - 50m 4x USB-A devices to 1x USB-B host, PoC

Product Ref: UEX50B-KIT

UEX50B-KIT delivers USB 2.0 extension up to 50m over a single CAT cable, allowing up to 4 x USB peripheral devices to be connected to a single USB host with charging / power.Supports a combined transmission data bandwidth of up to 480Mbps, and is backwards compatible with USB 1.1 devices.

Technical Specifications

UEX50B-RX

  • CAT Connectors: 1 x RJ45 connector

  • USB Port: 1 x USB Type-B

UEX50B-TX

  • CAT Connectors: 1 x RJ45 connector

  • USB Port: 4 x USB Type-A



  • Casing Dimensions (W x D x H ): 84mm x 60mm x 23.5mm (TX/RX)

  • Shipping Weight (kit): 0.5kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

  • Power Supply: 12V/2A DC

Product Features

  • Extends USB up to a distance of 50m over a single CAT cable
  • Supports USB 2.0 signal extension
  • Backwards compatible with USB 1.1 devices
  • Combined transmitted data bandwidth up to 480Mbps
  • 1 x USB Type-B on the Transmitter for connection to the Host device
  • 4 x USB Type-A hub on the Receiver for connection to peripheral devices
  • USB Type-A ports 1-2 support 5V 1A, with ports 3-4 supporting 5V 500mA
  • Simple plug and play, no driver installation or setup required
