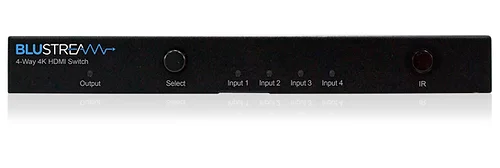

Blustream 4-Way 4K 18Gbps HDMI2.0 Switch with Audio Breakout, Auto-Switching, RS-2
Product Ref: SW41AB-V2
SW41AB-V2 is a 4-Way HDMI switch with an integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Technical Specifications

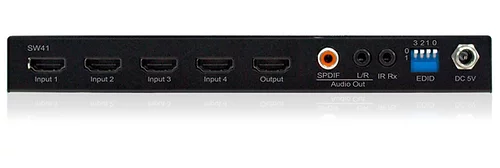

- Video Input Connectors: 4 x HDMI Type A
- Video Output Connectors: 1 x HDMI Type A
- Audio Output Connectors: 1 x RCA (S/PDIF) & 1 x Analogue audio L/R (3.5mm stereo jack)
- IR Input Ports: 1 x 3.5mm stereo Jack
- RS-232 Serial Port: 1 x DB-9, female
- Casing Dimensions (W x H x D): 196mm x 41mm x 94mm
- Dimensions including connections (W x H x D): 196mm x 41mm x 104mm
- Shipping Weight: 0.9kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/2A DC
Product Features
- Features 4 x HDMI inputs which can be switched to single HDMI output
- Auto-switching (HPD sensing) capabilities can be enabled / disabled
- Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
- HDCP 2.2 compliant
- Supports 3D signal display
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Control via front panel, RS-232 and IR
- Advanced EDID management
