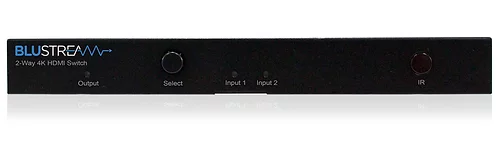

Blustream 2-Way 4K 18Gbps HDMI2.0 Switch with Audio Breakout, Auto-Switching, EDID
Product Ref: SW21AB-V2
Our SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.
Box Contents
1 x SW21AU
1 x SW41-REMOTE
1 x 5V/2A DC power supply
1 x IR receiver
1 x User manual
Technical Specifications

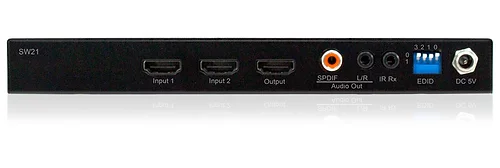

Video Input Connectors: 2x HDMI Type A
Video Output Connectors: 1x HDMI Type A
Audio Output Connectors:1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
IR Input Ports: 1x 3.5mm stereo Jack
Casing Dimensions (W x H x D): 196mm x 23mm x 94mm
Dimensions including connections (W x H x D): 196mm x 32mm x 104mm
Shipping Weight: 0.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/2A DC
Product Features
Features 2x HDMI inputs which can be switched to single HDMI output
Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
HDCP 2.2 compliant
Supports 3D signal display
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
Control via front panel and IR
Advanced EDID management
* Auto switching only available on units with serial no. 70522400001 or above
