Blustream 2 Input 4-Way 8K HDMI2.3 Splitter with Audio Breakout, and EDID

Product Ref: SP24AB-8K

The SP24AB-8K HDMI 2.1 splitter is designed to be used where HDMI 2.1 chipset are being utilised for signals up to 8K 60Hz and 4K 120Hz.

With selection of 2 x HDMI 2.1 input sources, a single source can be distributed to up to 4 x outputs simultaneously, the SP24AB-8K can auto-switch based on detecting a 5V hot plug, a new TMDS signal; or manually using IR or the front panel. Analogue and coaxial digital (S/PDIF) audio breakout allows for audio integration, HDCP2.3 compliant, and advanced EDID management.

Technical Specifications

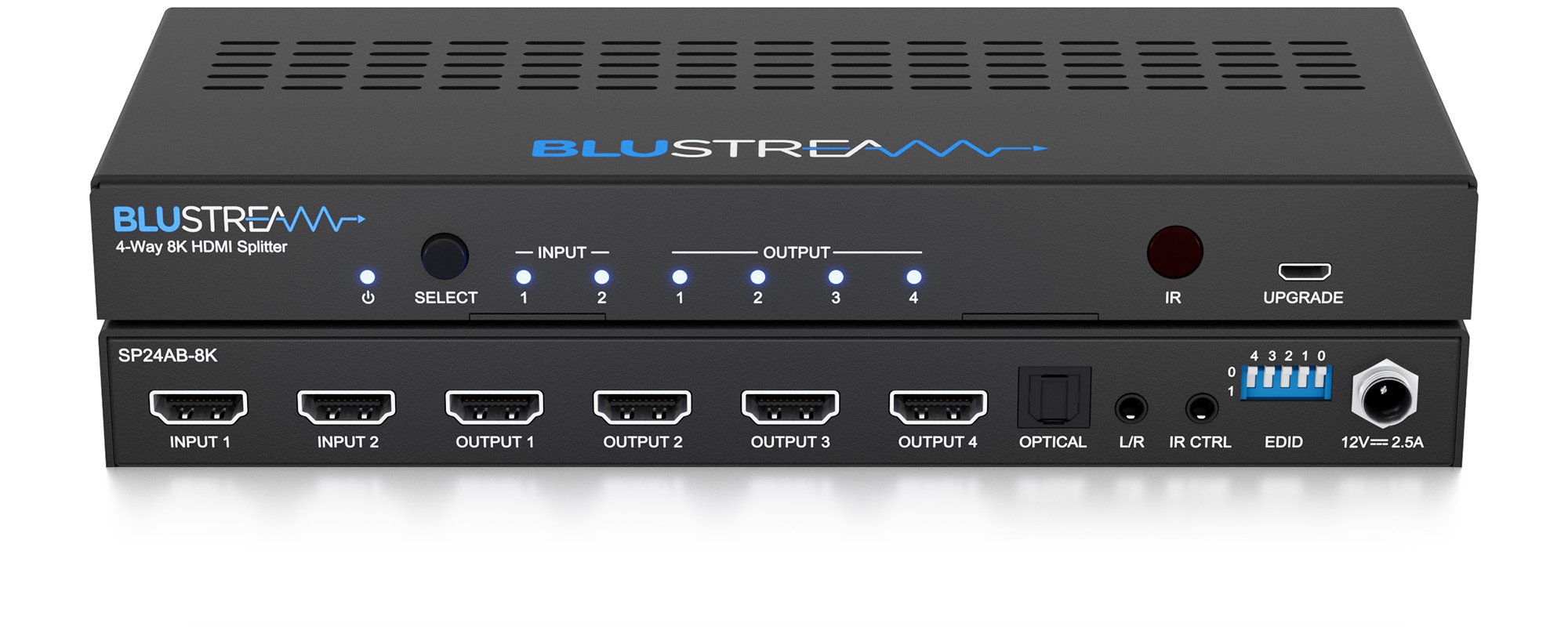

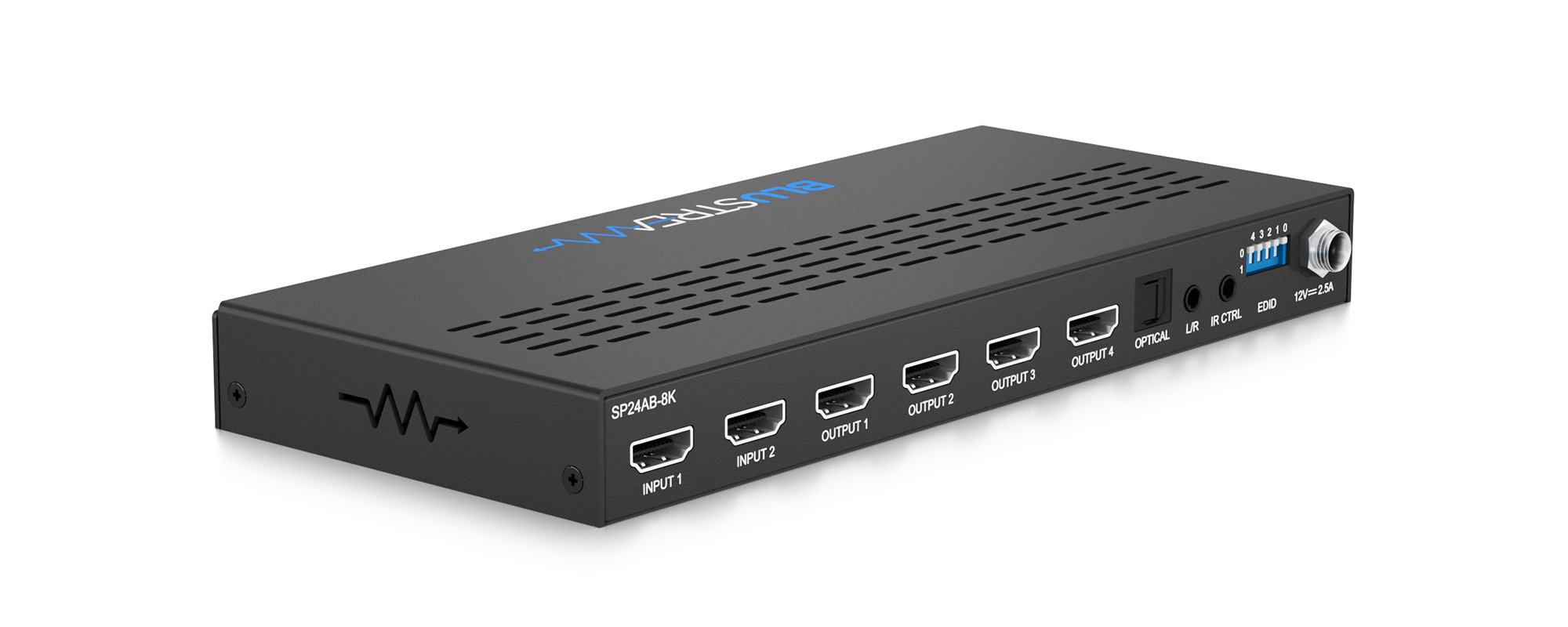

  • Video Input Connectors: 2x HDMI Type A, female

  • Video Output Connectors: 4x HDMI Type A, Female RJ45 connector

  • Audio Output Connectors: 1x Analogue left / right audio (3.5mm stereo jack), 1x Optical S/PDIF socket

  • IR Input Port: 1x 3.5mm stereo jack

  • Upgrade Port: 1x Micro USB connector

  • Casing Dimensions (W x D x H): 212mm x 94mm x 23mm

  • Power Supply: 12V/2.5A DC connector

  • Box Dimensions (W x D x H): 265 x 135 x 90mm

  • Shipping Weight: 1kg

  • Operating Temperature: 32°F to 104°F (0°C to +40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to +60°C)

Product Features

  • Features 2x selectable HDMI 2.1 inputs that are split to 4x HDMI outputs

  • Supports HDMI 2.1 specification including HDR (40Gbps maximum)

  • Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit

  • Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)

  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Auto HDMI source switching via 5V and / or TMDS signal sensing

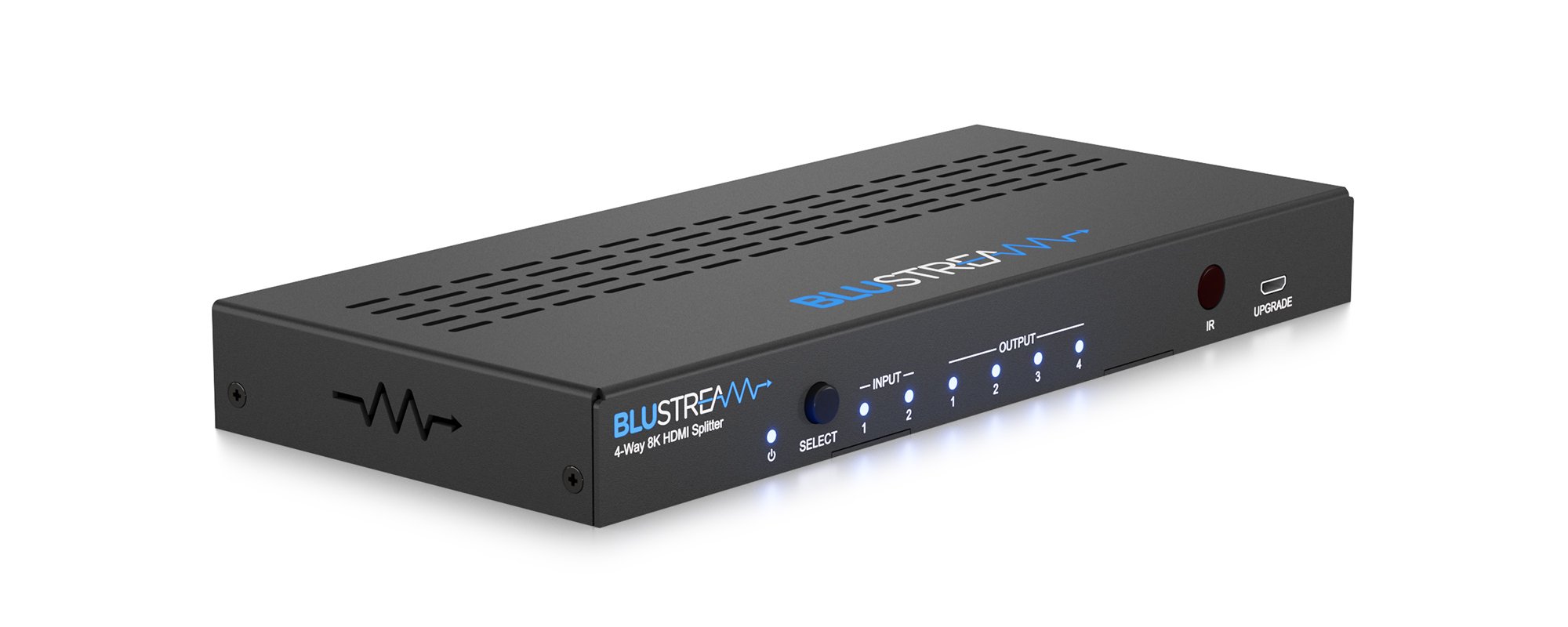

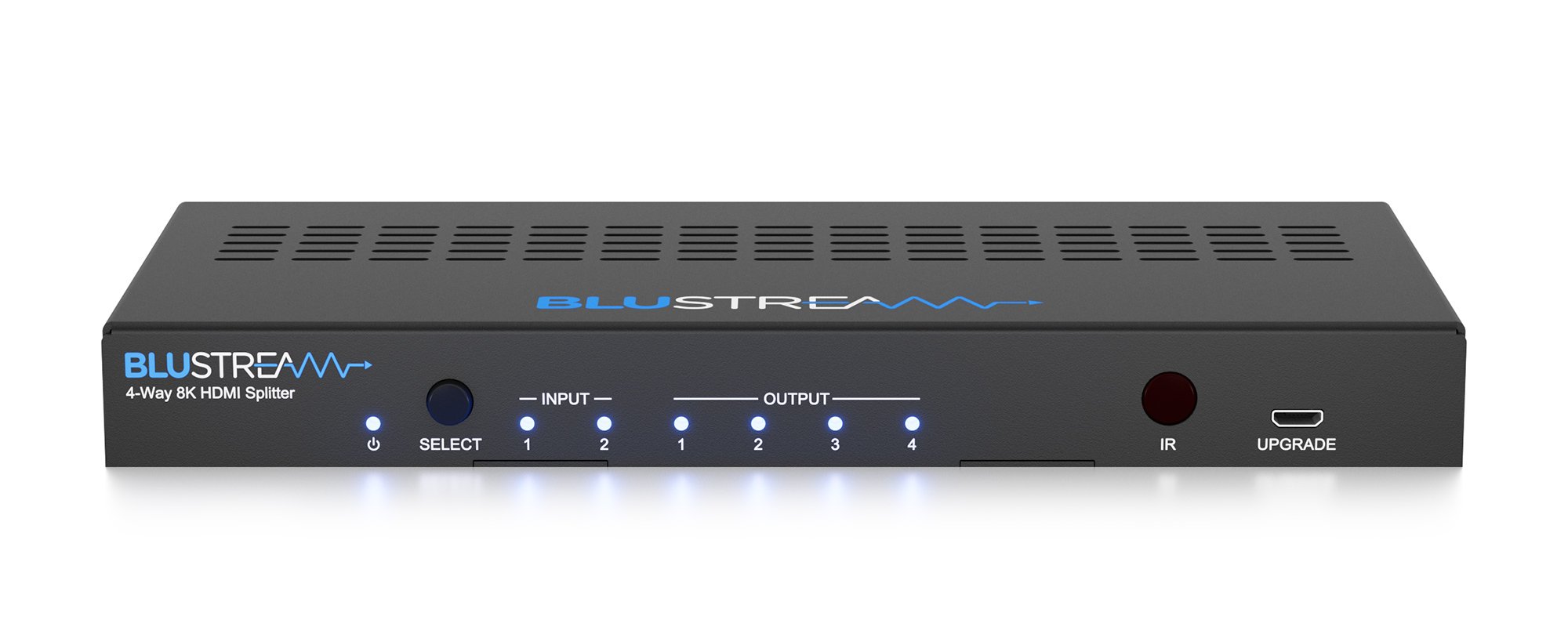

  • Manual HDMI source switching via front panel and IR

  • Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently

  • 5V / 12V IR Compatible

  • HDCP 2.3 compliant with advanced EDID management
