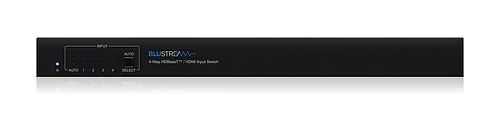

Blustream 4x1 CSC HDBaseT Input Switch HDMI 2.0 4K 60Hz 4:4:4, Simultaneous HDMI

Product Ref: SW41HDBT

The SW41HDBT is a 4-Way HDBaseT™ switch with HDBaseT™ or HDMI output. The SW41HDBT provides enhanced features including PoC to power Blustream Transmitter and Receiver products, web GUI for control and configuration, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP. The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used with our Blustream HDBaseT™ wall-plate solutions.

Technical Specifications

  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • IR Input Ports: 2 x 3.5mm stereo jack
  • Casing Dimensions (W x H x D): 305mm x 28mm x 220mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 24V/5A DC

Product Features

  • Switches 4x HDBaseT™ inputs to either HDBaseT™ or HDMI output
  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Extends HDMI 1080p up to a distance of 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports PoC when used with compatible HDBaseT™ Transmitters and Receivers
  • Compatible with all Blustream HDBaseT™ Transmitters and Receivers*
  • Web interface module for control and configuration of switch
  • Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP

• Auto source selection supported by compatible Blustream HDBaseT™ Transmitters only*

  • Bi-directional IR and CEC pass-through
  • HDCP 2.2 compliant with advanced EDID management

*Technical performance is subject to the features supported on the connected HDBaseT™ Transmitter/Receiver. Please see documentation for a list of compatible products
