Blustream HDBaseT CSC Receiver supporting HDMI 2.0 4K 60Hz 4:4:4 & up to 40m (1080p
Product Ref: RX70CS
RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology.
The product extends HDMI, Bi-directional IR & RS-232 and is powered by the matrix up to lengths of 70m at 1080p (4K 18Gbps to 40m).
The Receiver features ARC support when used with compatible Blustream hardware and simultaneous analogue stereo and Optical Toslink audio breakout.
Technical Specifications

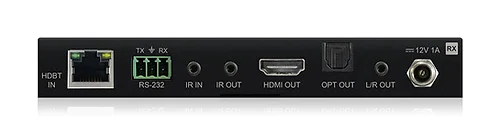

Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
Video Output Connectors: 1 x HDMI Type A, 19-pin, female
Audio Input Connectors: 1 x Toslink (S/PDIF) - for Optical Audio Return only
Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio - for audio breakout of HDBaseT™ input signal only
RS-232 Serial Port: 1 x 3-pin Phoenix connector
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
Mounting Kit: Included
Casing Dimensions (without connections) (W x D x H): 140mm x 84mm x 18mm
Casing Dimensions (with connections) (W x D x H): 140mm x 98mm x 18mm
Shipping Weight: 0.5kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 1 x 12V/1A DC, screw connector
Product Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR *
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream transmitter / matrix)*
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Bi-directional RS-232 pass-through
Supports bi-directional IR pass-through to compatible HDBaseT™ device
Supports bi-directional PoC to power RX70CS from compatible Blustream HDBaseT™ transmitter / matrix products or provide power to HDBaseT™ transmitter when RX70CS is powered with local power supply
HDCP 2.2 support
Recommended receiver for the Blustream AMF42AU, C6CS, C88CS, HMXL66ARC and HMXL88ARC matrix products
