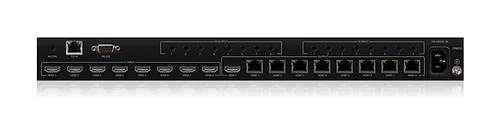

Blustream Contractor 8x8 HDBaseT CSC Matrix - 70m (4K 60Hz 4:4:4 up to 40m)
Product Ref: C88CS
The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs, and a web browser interface module for control and configuration of the matrix.
Technical Specifications
Video Input Connectors: 8 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connector
RS-232 Serial Port: 1 x DB9 Serial connector
TCP/IP Control: 1 x RJ45, female
IR Input Ports: 9 x 3.5mm stereo jack
IR Output Ports: 8 x 3.5mm mono jack
Rack Mountable: 1U rack height, rack ears included
Case Dimensions (without feet & connections) (W x D x H): 437mm x 377mm x 44mm
Case Dimensions (with feet & connections) (W x D x H): 437mm x 384mm x 53mm
Shipping Weight: 6.25kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: Internal 100-240V AC
Product Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
Output 1 features simultaneous HDMI and HDBaseT™ output
Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p video up to 70m
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Web interface module for control and configuration of matrix
Supports bi-directional IR on all HDBaseT™ outputs
Control via front panel, IR, RS-232 and TCP/IP
Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
Supplied with Blustream IR receivers and emitters
3rd party drivers available for major control brands
1U Design for 19" rack mount integration - mounting kit included
Advanced EDID management
HDCP 2.2 compliant
