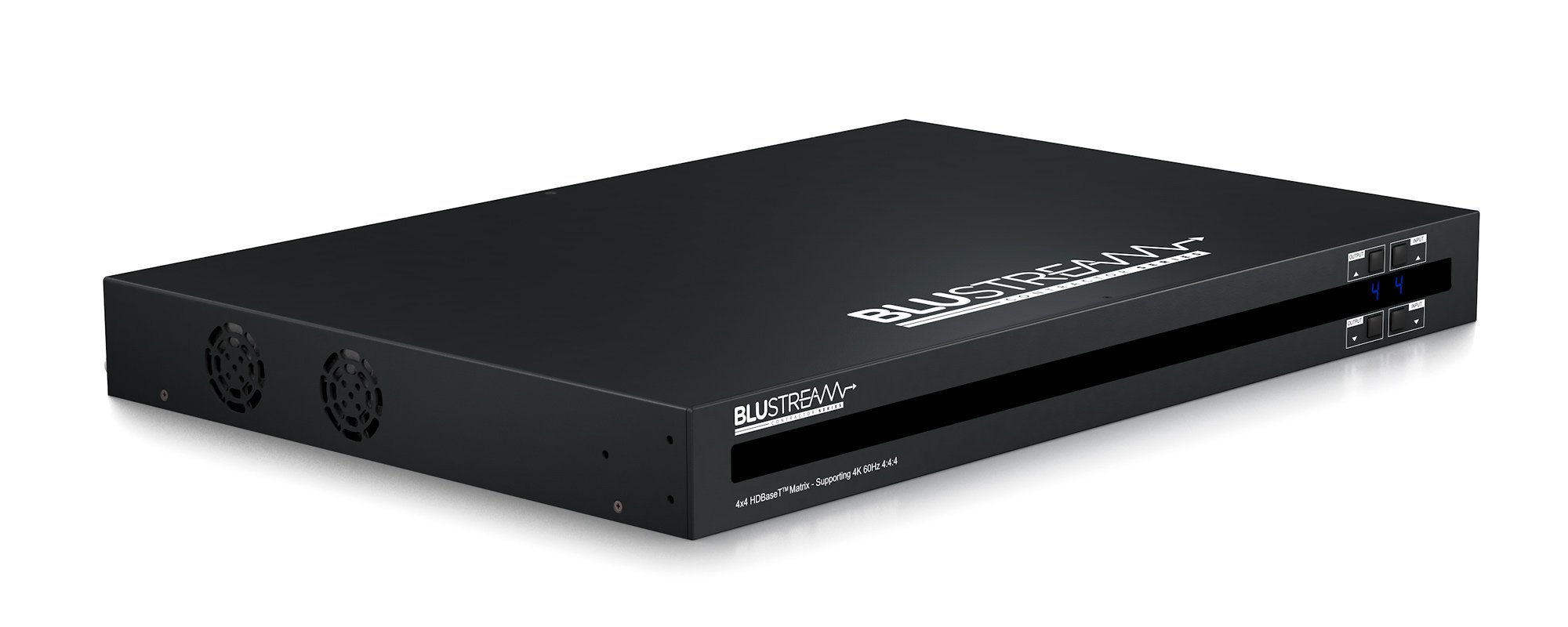

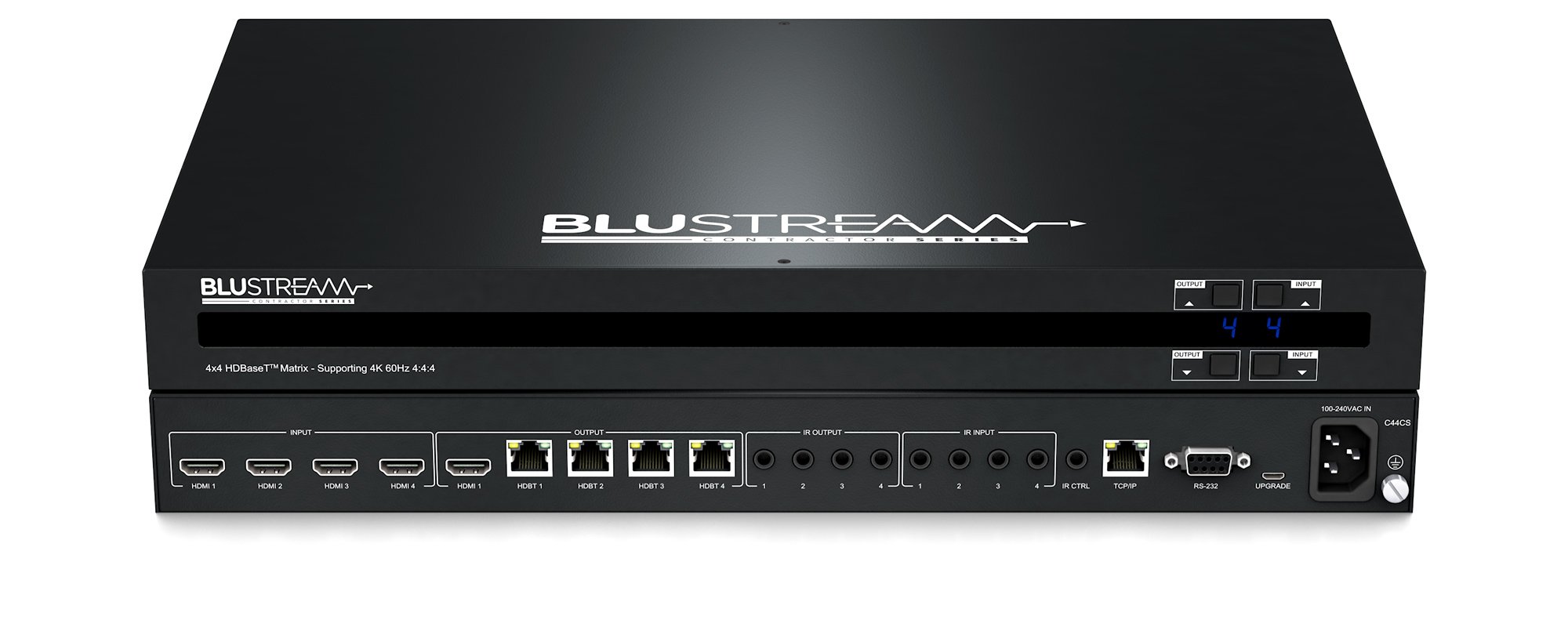

Blustream Contractor 4x4 HDBaseT Matrix (4K 60Hz 4:4:4 up to 40m)Bi directional IR

Technical Specifications

C44CS - Matrix

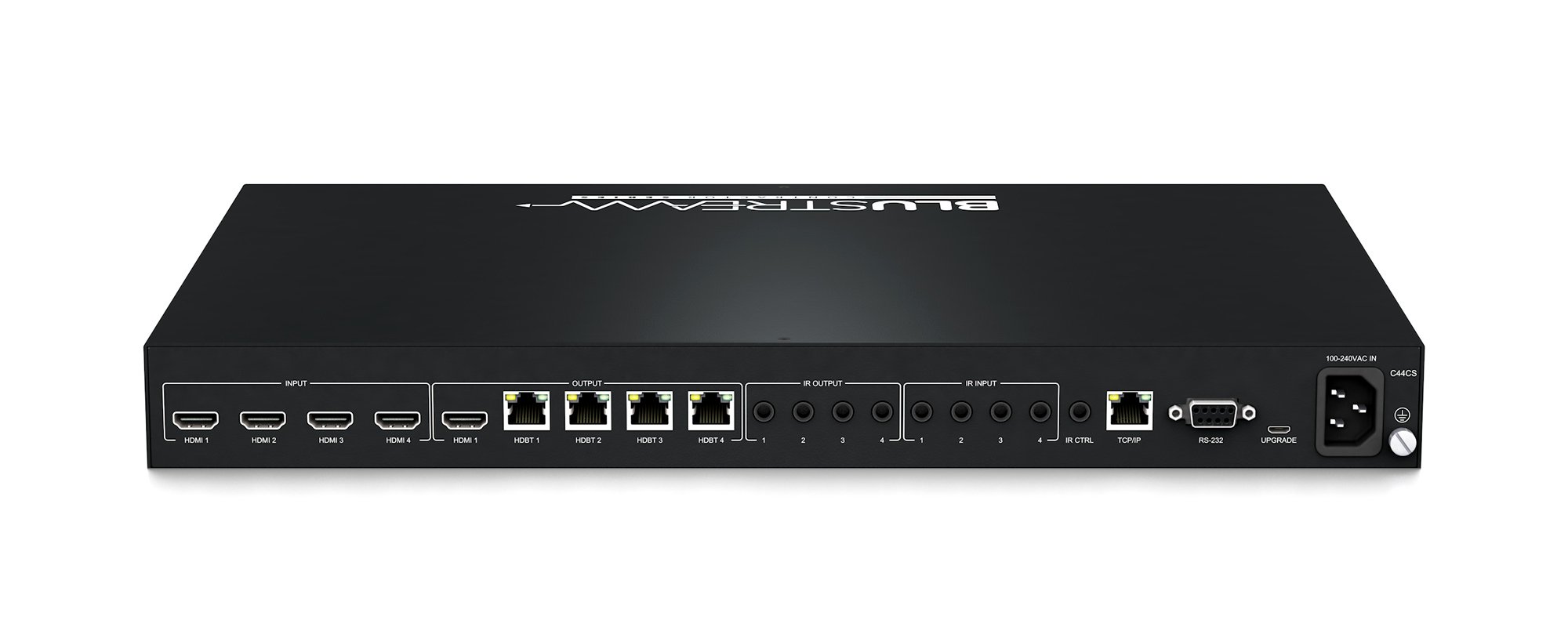

• Video Input Connectors: 4 x HDMI Type A, 19-pin, female

• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connectors

• TCP/IP Control: 1 x RJ45, female

• RS-232 Serial Ports: 1 x DB-9, female

• IR Input Ports: 5 x 3.5mm stereo jack

• IR Output Ports: 4 x 3.5mm mono jack

• Rack Mountable: 1U rack height, rack ears included

• Casing Dimensions (W x H x D): 437mm x 44mm x 300mm (without feet)


  RX70CSL Receiver

• Video Input Connectors: 1 x HDBaseT™ RJ45 connectors

• Video Output Connectors: 1 x HDMI Type A

• IR Input Ports: 1 x 3.5mm stereo jack

• IR Output Ports: 1 x 3.5mm mono jack

• Casing Dimensions (W x H x D): 85mm x 24mm x 120mm

• Mounting Wings: Supplied


  C44CS-KIT

• Power Supply: Internal 100-240V AC

• HDBT Power Output: 12V DC 0.8A per port

• Shipping Weight: 6.0kg

• Operating Temperature: 23°F to 122°F (-5°C to +50°C)

• Storage Temperature: -13°F to 158°F (-25°C to +70°C)

Product Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*

• Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

• Output 1 features simultaneous HDMI and HDBaseT™ output

• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Extends HDMI 1080p video up to 70m

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Web interface module for control and configuration of matrix

• Supports bi-directional IR on all HDBaseT™ outputs

• Control via front panel, iOS / Android App, IR, RS-232 or TCP/IP

• Supports 12V PoC (Power over Cable) to power compatible HDBaseT™ receivers

• Supplied with Blustream IR receivers and emitters

• 3rd party drivers available for all major control brands

• 1U design for 19” rack mount integration - mounting kit included

• Advanced EDID management and HDCP 2.2 compliant


  *CSC feature compatible with RX70CSL only
