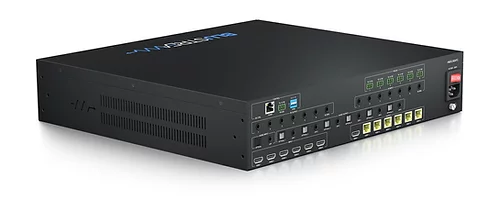

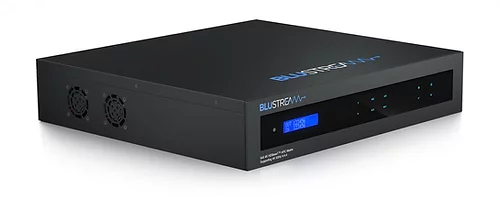

Blustream 6x6 HDBaseT CSC AV Matrix - 70 m (4K60Hz 4:4:4 up to 40m)

Product Ref: HMXL66ARC

The HMXL66ARC HDBaseT Matrix delivers new levels of advanced audio integration into our Essential range of 4K video matrix solutions. The HMXL66ARC is a 6x6 HDMI 2.0 4K 60Hz 4:4:4 matrix that uses CSC (Colour Space Conversion) technology to deliver 18Gbps HDMI over distances of up to 40m (1080p to 70m).

The HMXL66ARC features enhanced audio routing via an integrated 20x6 audio matrix. This enables the audio both from displays and sources, to be embedded and routed through the system at the users discretion.

The HMXL66ARC includes a simultaneous HDBaseT / HDMI output on output 1, video smart scaling on all HDBaseT outputs, and PoC (Power over Cable) to the remote RX70CS HDBaseT receivers. A in-built web browser interface for configuration and control of the Matrix, along with RS-232 and IR pass-through to enable seamless 3rd party control integration.

Technical Specifications

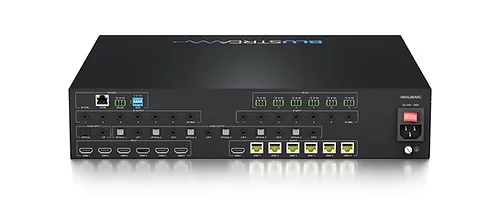

  • Video Input Connectors: 6 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connector, used with RX70CS receiver

  • Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)

  • Audio Output Connectors: 6 x Analogue audio L/R (3.5mm stereo jack), 6 x Optical (S/PDIF)

  • RS-232 Serial Ports: 7 x 3-pin Phoenix connector

  • TCP/IP Control: 1 x RJ45, female

  • IR Input Ports: 7 x 3.5mm stereo jack

  • IR Output Ports: 7 x 3.5mm mono jack

  • Rack Mountable: 2U rack height, rack ears included

  • Casing Dimensions (WxDxH): 436mm x 400mm x 88mm (without feet)

  • Shipping Weight: 10.5kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

  • Power Supply: Internal 100-240V AC

Product Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*

  • Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs

  • Output 1 features simultaneous HDMI and HDBaseT™ output

  • Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m

  • 20x6 Audio Matrix independently controllable from video. Audio source inputs include:

    - 6 x audio breakout from HDMI source inputs

    - 6 x audio breakout from zone outputs

    - 6 x ARC from zone outputs*

    - 1 x Optical and 1 x Analogue audio input

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Web interface module for control and configuration of matrix

  • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs

  • Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP

  • Supports 24V PoC (Power over Cable) to power compatible Blustream RX70CS receivers

  • Supplied with Blustream IR receivers and emitters

  • Advanced EDID management and HDCP 2.2 compliant
