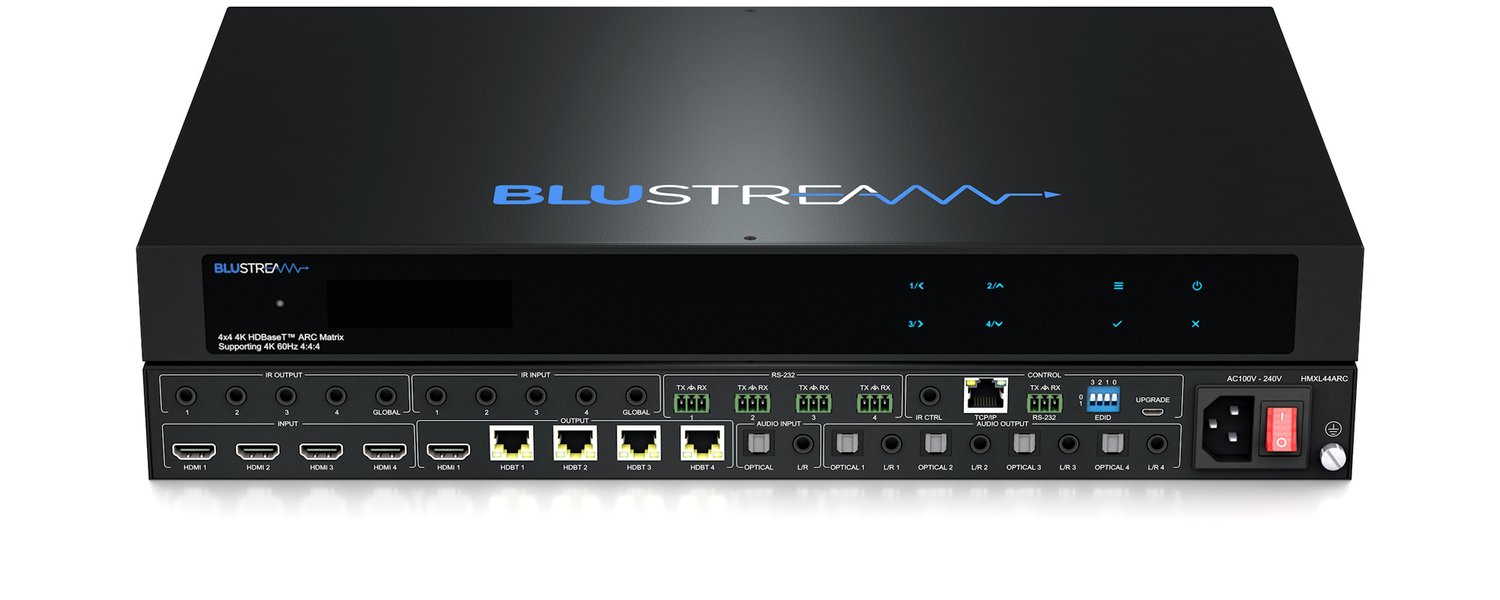

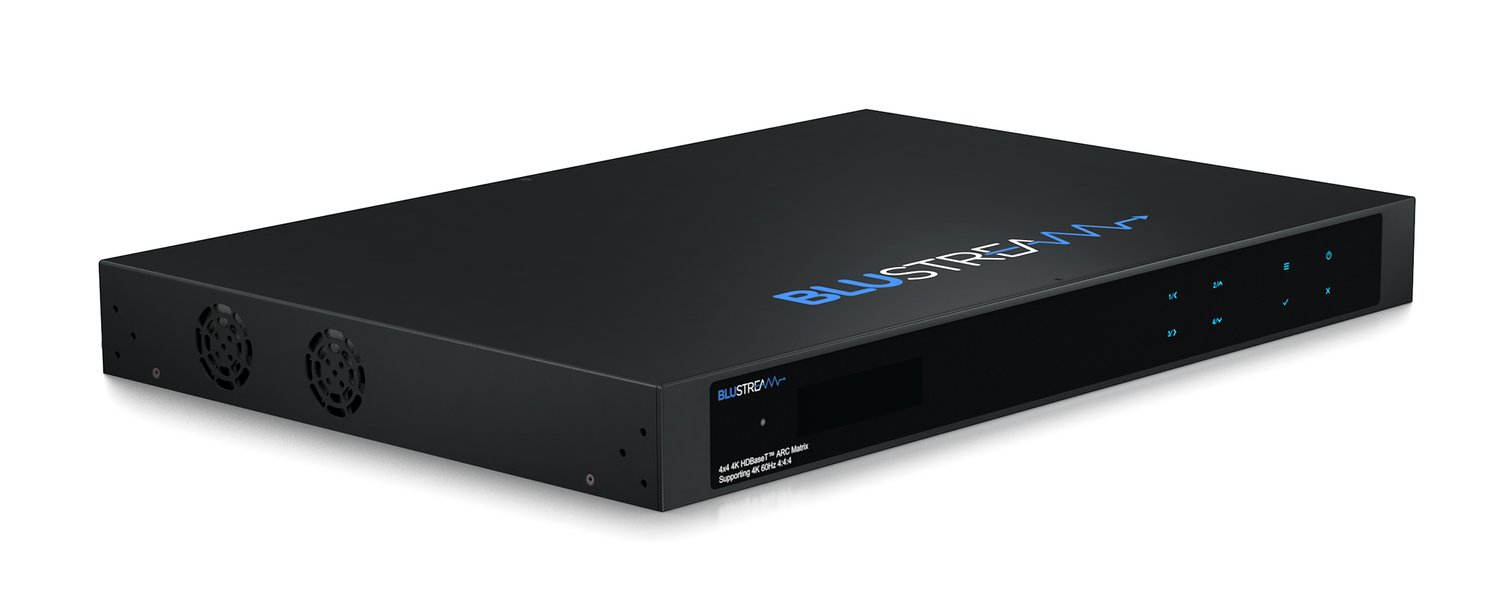

Blustream 4x4 HDBaseT CSC AV Matrix Kit (4K60Hz 4:4:4 up to 40m)ARC Bi Directional

Product Ref: HMXL44ARC-KIT

Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44ARC is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m (at 1080p) over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs and independent 14x4 audio matrix including Audio Return Channel (ARC). The HMXL44ARC includes in-built web browser interface module for control and configuration of the Matrix and RS-232 and IR pass through to enable seamless 3rd party control integration.

Technical Specifications

  • Video Input Connectors: 4x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1x HDMI Type A, 19-pin, female, 4x HDBaseT™ RJ45 connector

  • Audio Output Connectors: 1x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (SPDIF)

  • Audio Output Connectors: 4x Analogue audio L/R (3.5mm stereo Jack), 4x Optical (SPDIF)

  • RS-232 serial ports: 5x 3-pin phoenix connector

  • TCP/IP Control: 1x RJ45, female

  • IR Input ports: 5x 3.5mm stereo jack

  • IR Output ports: 4x 3.5mm mono jack

  • Rack-Mountable: 1U rack height, rack ears included

  • Casing Dimensions (WxDxH): 436 x 300 x 44 mm

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)

  • Power Supply: Internal 100-240v AC

Product Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*

  • Features 4 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs

  • Output 1 features simultaneous HDMI and HDBaseT™ output

  • Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

  • Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m

  • 14x4 Audio Matrix independently controllable from video. Audio source inputs include:

    - 4x audio breakout from HDMI source inputs

    - 4x audio breakout from zone outputs

    - 4x ARC from zone outputs*

    - 1x Optical and 1x Analogue audio input

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Web interface module for control and configuration of matrix

  • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs

  • Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP

  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers

  • Supplied with Blustream IR receivers and emitters

  • Advanced EDID management and HDCP 2.2 compliant

  • Supplied with 4x RX70CS HDBaseT Receivers

    *ARC feature supports HDMI ARC or Optical ARC

    *CSC and ARC Feature compatible with RX70CS only


Box Contents

4 x RX70CS
1 x Rack mounting kit
1 x Remote control
4 x IR emitters
5 x IR receivers
1x Serial Cable - DB9 to 3-pin phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable
IEC Power Cable(s)
1 x Quick Reference Guide
