Product Ref: HEX70SL-KIT
MPN: HEX70SL-KIT

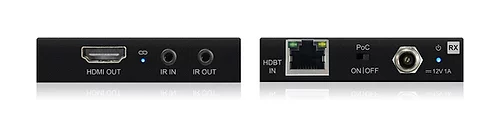

The HEX70SL-KIT 4K HDBaseT extender set offers market leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
HEX70SL-TX:
Video Input Connectors: 1 x HDMI Type A, 19-pin, female
Video Output Connectors: 1 x HDBaseT™ RJ45 connector
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
EDID: Pin hole button
HEX70SL-RX:
Video Input Connectors: 1 x HDBaseT™ RJ45 connector
Video Output Connectors: 1 x HDMI Type A, 19-pin, female
IR Input Ports: 1 x 3.5mm stereo jack
IR Output Ports: 1 x 3.5mm mono jack
Power Supply: 12V/1A DC
Dimensions: 106mm x 73mm x 16mm (LxWxH)
Shipping Weight: 0.8kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
Enhanced slimline chassis
Extends HDMI 1080p up to a distance of 70m over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Bi-directional IR pass-through
Supplied with Blustream IR receiver and emitter
Supports Bi-directional PoC to power extenders from either transmitter or receiver end
HDCP 2.2 compliant with smart EDID management
