Blustream Advanced HDBaseT Extender Set supporting uncompressed and unconverted

Technical Specifications

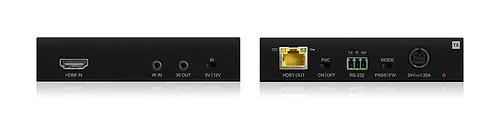

HEX18G-TX

• Video Input Connectors: 1x HDMI Type A, female

• Video Output Connectors: 1x HDBaseT™ RJ45 connector

• IR Input ports: 1x 3.5mm stereo jack

• IR Output ports: 1x 3.5mm mono jack

• RS-232 serial port: 1x 3-pin Phoenix connector

• Power Supply: 1x 24V/1.25A DC

HEX18G-RX

• Video Input Connectors: 1x HDBaseT™ RJ45 connector

• Video Output Connectors: 1x HDMI Type A, female

• IR Input ports: 1x 3.5mm stereo jack

• IR Output ports: 1x 3.5mm mono jack

• RS-232 serial port: 1x 3-pin Phoenix connector

• Power Supply: 1x 24V/1.25A DC

• Casing Dimensions (W x D x H ): 95mm x 116mm x 24mm (TX and RX)

• Shipping Weight (Kit): 1.5kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature : -4°F to 140°F (-20°C to 60°C)

• Mounting kits included

• Power Supply: 1x 24V/1.25A DC

Product Features

• HDBaseT spec 3.0 offers the first true solution for uncompressed and unconverted, bit-exact distribution of HDMI2.0 signals up to 18Gbps (4K 60Hz 4:4:4) over CAT6A cabling up to 100m

• Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision

• Supports HDMI video distribution up to 100m*

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues

• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

• Bi-directional IR & RS-232 pass through

• Supplied with Blustream IR receiver and emitter

• Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

• Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4

• *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
