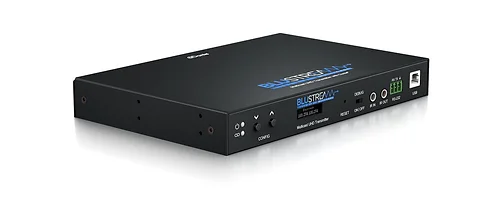

Blustream IP Multicast UHD Video Transmitter over 1Gb Network
Product Ref: IP250UHD-TX
UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb Managed Network.
Compatible with the current IP200 platform, the IP250UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 10Gb HDMI, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built fibre SFP port.
The IP250UHD-TX features dual RJ45 network ports for independent or combined HDMI and/or Dante signal distribution.
The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.
Box Contents
Technical Specifications
Video input: 1 x HDMI Type A, female
Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, female
Latency: 1 Frame (16-33ms depending on frame rate) No latency on HDMI Loop out
Audio input:1 x 5-pin Phoenix connector
Audio Output Connectors: 1 x 5-pin Phoenix connector
Ethernet port: 2 x LAN RJ45 connector
Fibre Port: 1 x SFP connector (fibre module not supplied)
RS-232 serial port: 1 x 3-pin Phoenix connector
USB/KVM Port: 1 x USB-Type B
IR input: 1 x 3.5mm stereo jack
IR output: 1 x 3.5mm mono jack
PoE draw: 8.0W (typical), 9.2W (max load)
Firmware Update: 1 x Micro-USB
Product Features
Advanced UHD video over 1Gb Managed Network
Operates as a stand-alone system, or together with existing IP200UHD products
Virtually unlimited system size
Extends HDMI and Dante up to a distance of 100m over a single CAT cable
Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Supports HDR input @ 4K 30/25/24Hz
Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
Analogue L/R audio embedding
Analogue L/R audio outputs support both balanced and unbalanced audio signals
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
OLED front panel display for advanced system information and manual configuration
PoE (Power over Ethernet) to power Blustream Multicast products from PoE switch
HDCP 2.2 compliant with advanced EDID management
Local 24V 1A power supply should Ethernet switch not support PoE (not included)
Features 4 operational modes:
- Matrix distribution (requires 1Gb network switch)
- Video wall (requires 1Gb network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required)
