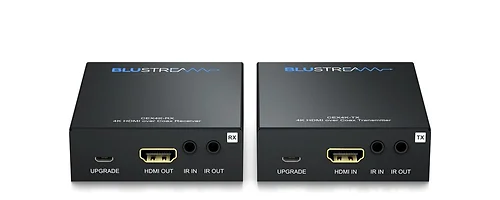

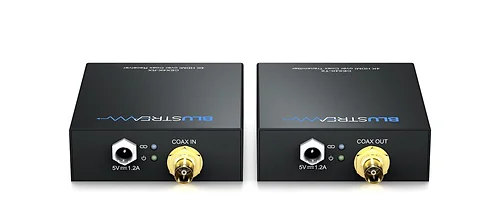

Blustream HDMI over Coax Extender Set HDMI2.0 4K 60Hz 4:4:4 up to 100m &
Product Ref: CEX4K-KIT
MPN: CEX4K-KIT
CEX4K-KIT HDMI extender set offers HDMI distribution over a single Coaxial cable. The product delivers HDMI & Bi-directional IR up to lengths of 100m @ 4K 60Hz 4:4:4
Technical Specifications
Specifications - TX
Video Input Connectors: 1 x HDMI Type A
Video Output Connectors: 1 x BNC connector
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
Product upgrade: 1 x Micro USB, female
Dimensions (Casing - W x D x H): 72.7mm x 88.8mm x 24mm
Dimensions Including Connections (W x D x H): 72.7mm x 106.8mm x 24mm
Specifications - RX
Video Input Connectors: 1 x BNC connector
Video Output Connectors: 1 x HDMI Type A
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
Product upgrade: 1 x Micro USB, female
Dimensions (Casing - W x D x H): 72.7mm x 88.8mm x 24mm
Dimensions Including Connections (W x D x H): 72.7mm x 106.8mm x 24mm
Product Features
Extends 4K HDMI signals up to a distances of 100m over a single 75 ohm coaxial cable
Supports up to 4K 60Hz 4:4:4 UHD video*
Supports Bi-directional IR from input and output locations
Supports PCM 2.0 channel audio
Supplied with Blustream IR receiver and emitter
Smart EDID management
HDCP 2.2 compliant
