Blustream Advanced Control Module For TCP/IP ,RS-232 And IR Control of IP300UHD
Product Ref: ACM210
The Multicast distribution platform allows distribution of HDMI video over a 1Gb Network switch. The ACM210 Advanced Control Module allows for third party control of the Multicast system using TCP/IP, RS-232 and IR.
The ACM210 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of video, audio, IR, RS-232, USB / KVM and CEC.
Major third party drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
Technical Specifications

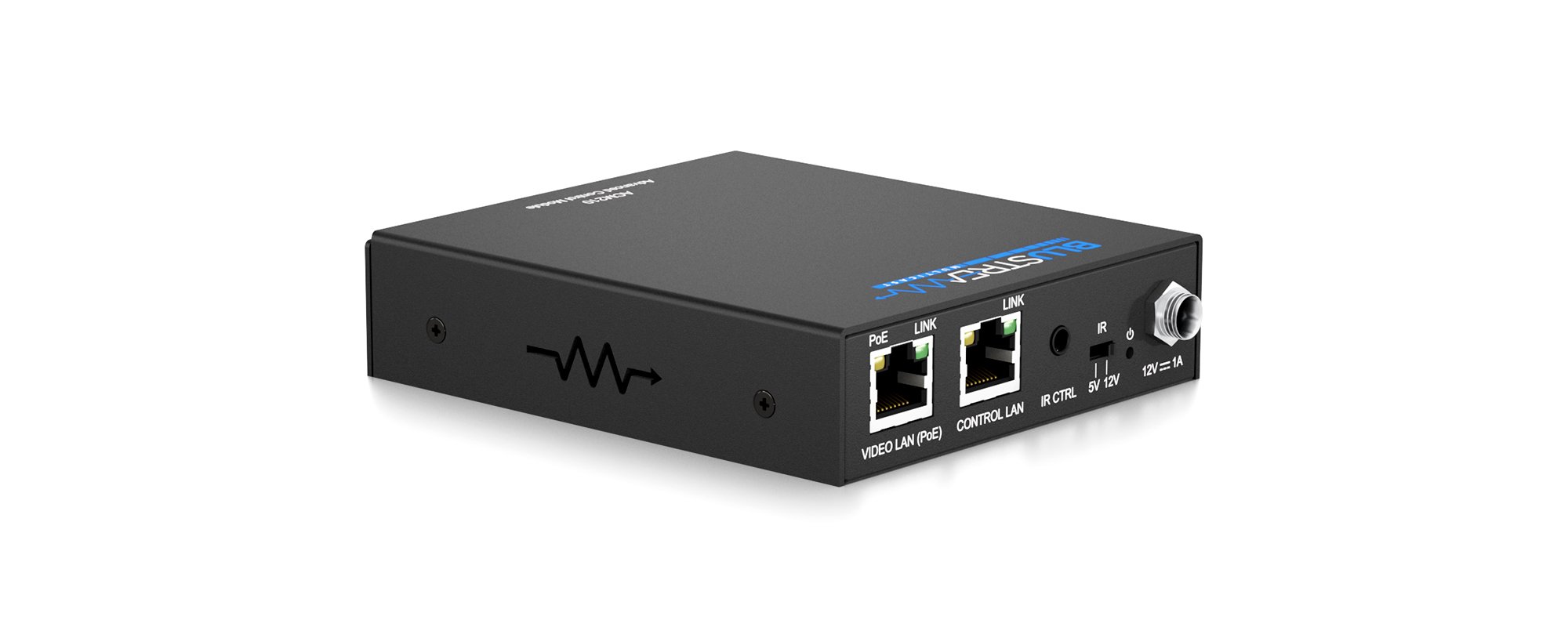

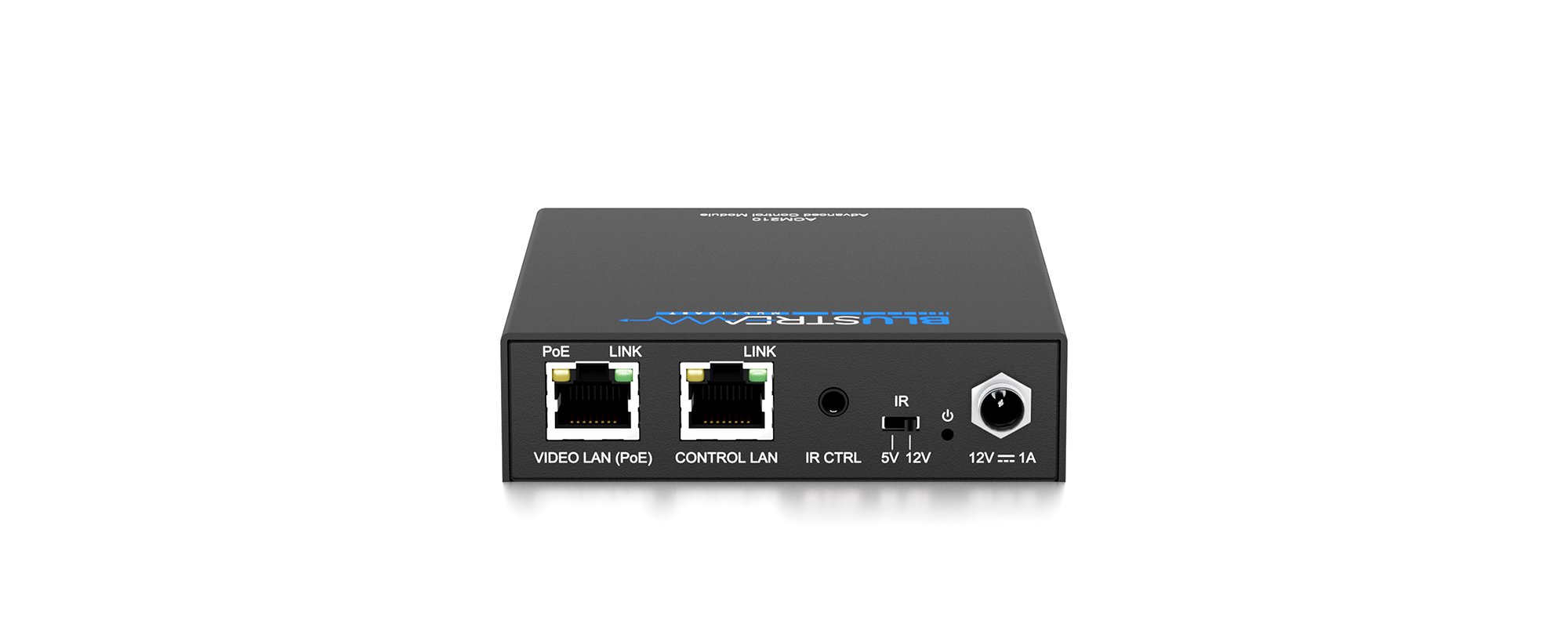

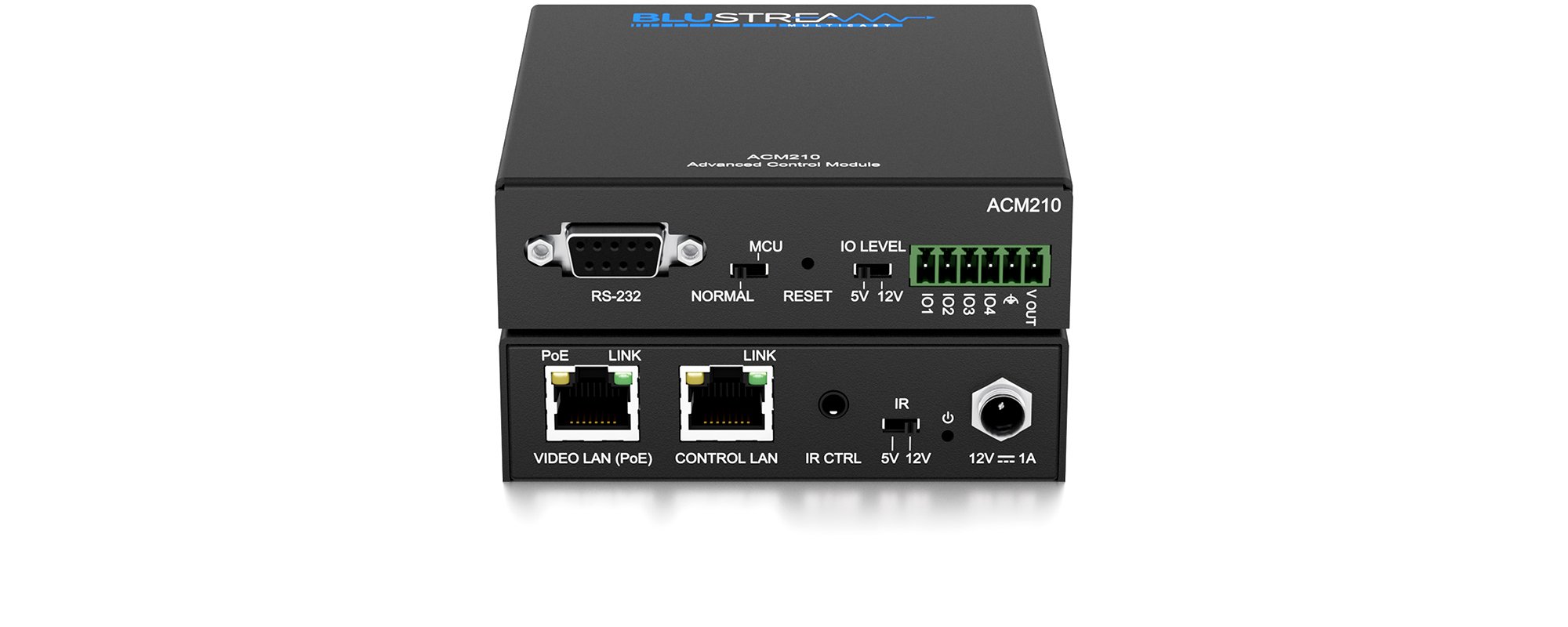

Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)

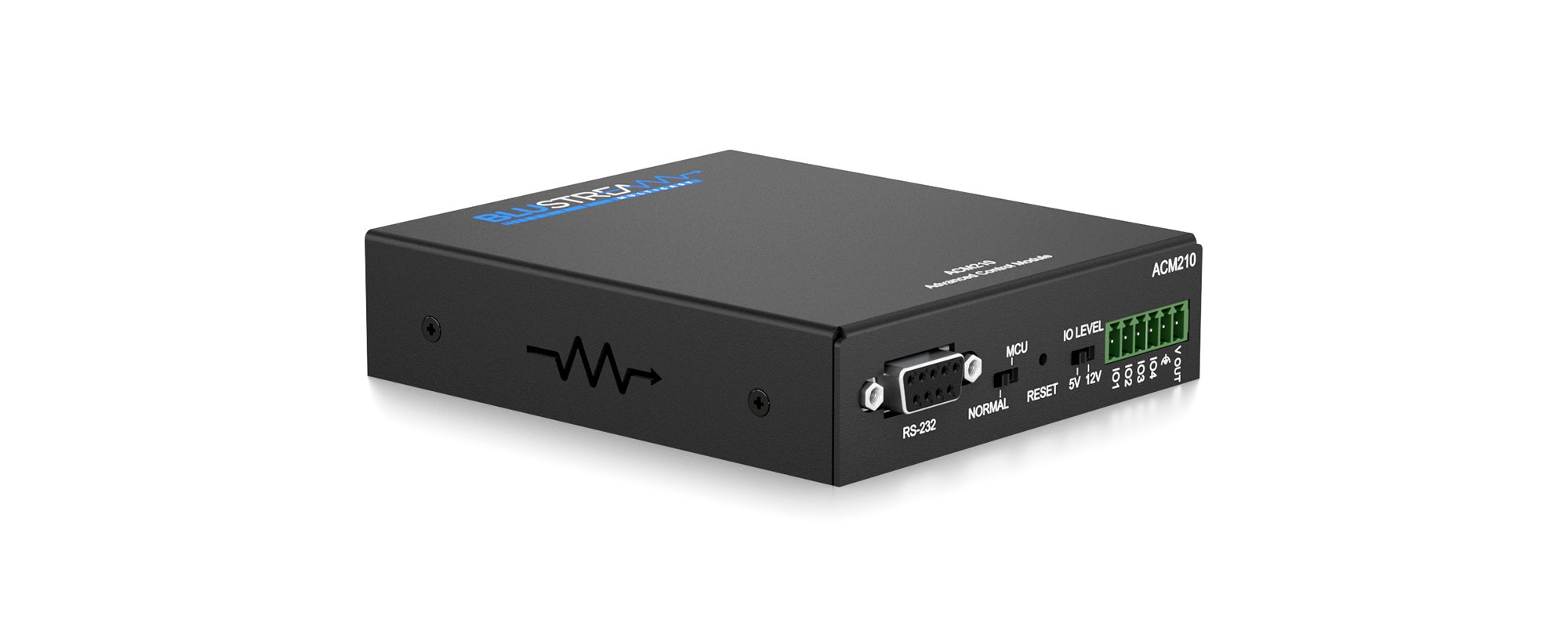

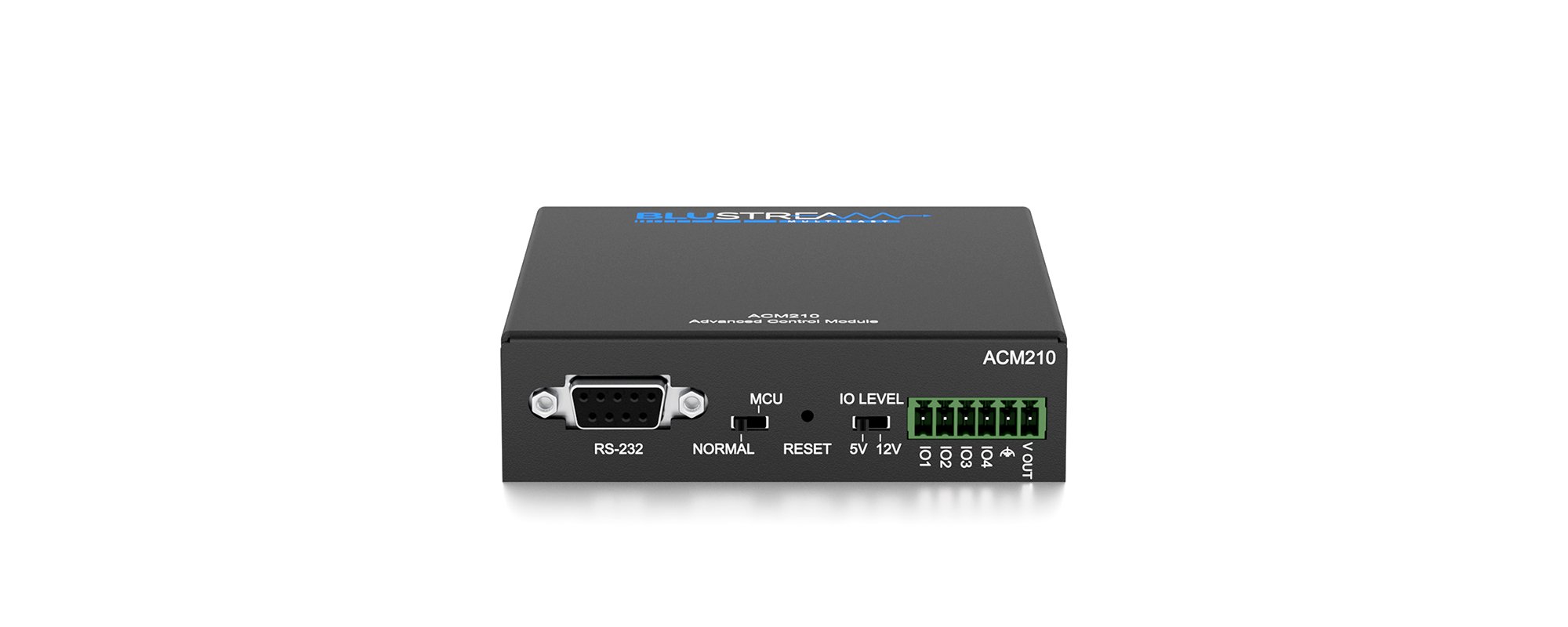

RS-232 Serial Port: 1 x DB-9 female
GPIO Port: 1 x 6-Pin Phoenix connector
IR Input Port: 1 x 3.5mm stereo jack
PoE consumption: 4.0W (typical), 4.5W (max load)
Dimensions (W x D x H ): 96mm x 110mm x 26mm
Shipping Weight: 0.6kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Product Features
Web interface module for configuration and control of the Blustream Multicast system
Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
Auto system configuration
2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
RS-232 integration for control of Multicast system
IR integration for control of Multicast system
PoE (Power over Ethernet) to power Blustream product from PoE switch
Local 12V power supply (optional) should Ethernet switch not support PoE
Support for iOS and Android App control
3rd Party drivers available for major control brands
