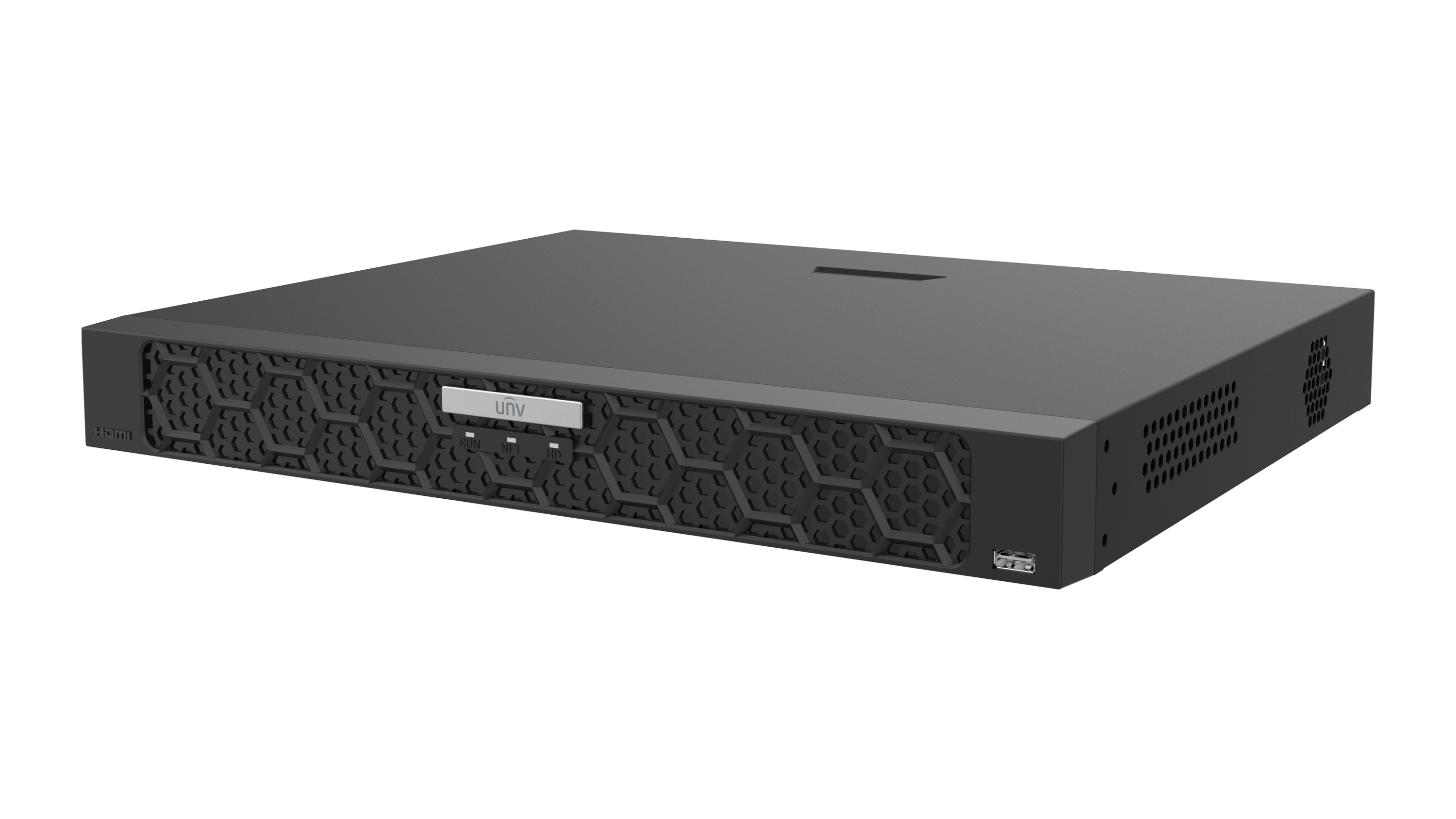

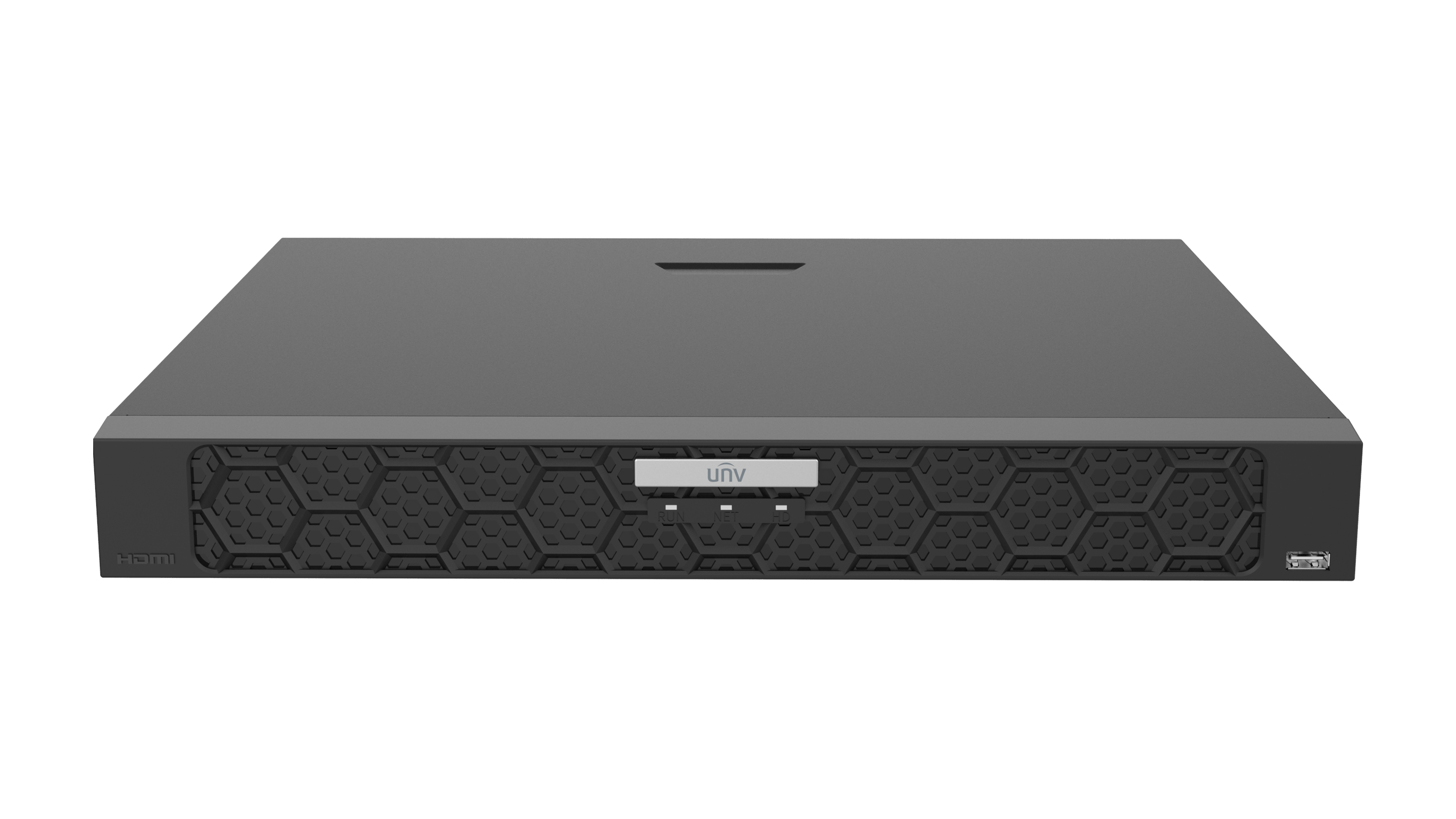

UNV NVR502-08B-P8 NVR 8 Channel PoE (2 HDD)

Product Ref: UNV-1001156

MPN: NVR502-08B-P8

Part of the UNV professional range, this NVR (Network Video Recorder) has HD recording and playback of all channels. It includes a user-friendly mouse-driven interface with full remote network and mobile phone access. The NVR can auto-detect ONVIF-compatible IP cameras; it can support up to 16MP IP cameras and includes 8 POE ports to power POE cameras locally.

- 8 Channel Video & Audio
- Plug & Play 8 Port POE
- Supports up to 16MP IP Cameras
- Bandwidth IN: 320Mbps (160Mbps with Smart On), OUT: 160Mbps
- License Plate Recognition (see Special Features)
- AI with Compatible Cameras (see Special Features)
- HDMI & VGA Output
- ONVIF Compliance (Profiles S, G, T)
- Supports H.264, H.265 or Ultra265
- ANR Technology to Enhance Storage (see Special Features)
- Mac Compatible
- Compatible with Sentinel and Immix Remote Monitoring

Technical Specifications

Video/Audio Input

Video Input: 8ch H.264/H.265/Ultra265Incoming Bandwidth: Smart Off: 320Mbps | Smart On: 160MbpsOutgoing Bandwidth: 160MbpsSupported Technologies: IP

Video/Audio Output

Live View/ Playback/ Recording Resolution: 16MP/12MP/8MP/5MP/4MP/3MP/1080P/720P/D1/2CIF/CIFFrame Rate: 16MP, 12MP, 8MP, 5MP, 4MP, 3MP, 1080P@30fpsPlayback Capacity: 16ch 1080P/8ch 4MP/4ch 8MP/2ch 12MP/2ch 16MPHDMI Output: 3840x2160, 1920x1080, 1280x720, 1024x768VGA Output: 1920x1080, 1280x720, 1024x768

Hard Disk

Drive quantity: Up to 2 SATA drivesDrive capacity: Up to 12TB each

Network

Network Interface: 1 RJ45 10M/100M/1000MProtocol: RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoEPOE Interface: 8Ch 100Mbps, IEEE802.3af/IEEE802.3atPOE Max Power: 30W for single port/130W for all ports

Storage and Backup

Recording Mode: Manual, Continuous, Schedule, Motion, Sensor, Pre/PostPlayback: Search by Time, Calendar, EventsBackup Devices: Via USB Memory Stick, HDD or over the networkLive View: 1, 4, 6, 8 or 9 screens, Digital Zoom

General

Power Supply: 100~240V ACPower Consumption: Max ≤12W (without HDD, USB)Operating Temperature: -10°C ~ 55°COperating Humidity: 0% - 90% RHProduct Dimensions: 380mm(W) x 322mm(D) x 53mm(H)

Application

Supported OS: Windows 7+, MacOS X 10.11+Remote Software: Chrome, Edge, Firefox, Internet Explorer 11, EZStation VMSSupported Devices: iOS, AndroidMobile App: EZViewNotifications: Email or Push

Interface

Video Outputs: HDMI (x1), VGA (x1)USB: USB 3.0 (x1), USB 2.0 (x1)Audio I/O: Microphone in (x1), Audio line out (x1)Alarm I/O: Alarm input (x8), Alarm output (x2)PTZ Control: OnvifControl: Mouse control
