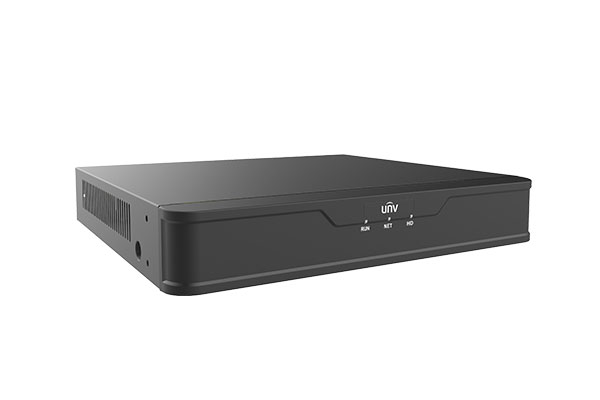

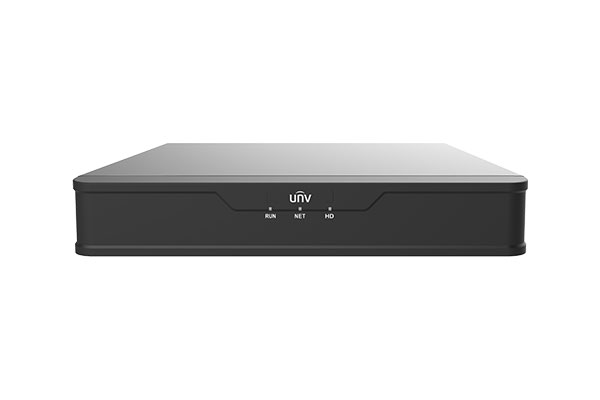

UNV NVR301-08S3-P8 Easy NVR 8 Channel PoE (1 HDD)
Product Ref: UNV-1001158
MPN: UV-NVR301-08S3-P8
Part of the UNV professional range, this NVR (Network Video Recorder) has HD recording and playback of all channels. It includes a user friendly mouse driven interface with full remote network and mobile phone access. The NVR can auto detect ONVIF compatible IP cameras; it can support up to 8MP IP cameras and includes 8 POE ports to power POE cameras locally.
- 8 Channel Video & Audio
- Plug & Play 8 Port POE
- Supports up to 8MP IP Cameras
- Bandwidth IN: 64Mbps, OUT: 48Mbps
- HDMI & VGA Output
- VCA with Compatible Cameras (see Special Features)
- ONVIF Compliance (Profiles S, G, T)
- Supports H.264, H.265 or Ultra265
- Fanless design
- ANR Technology to Enhance Storage (see Special Features)
- Mac Compatible
- Compatible with Sentinel and Immix Remote Monitoring
Technical Specifications
Video/Audio Input
Video Input: 8ch H.264/H.265/Ultra265Incoming Bandwidth: 64MbpsOutgoing Bandwidth: 48MbpsSupported Technologies: IP
Video/Audio Output
Live View/ Playback/ Recording Resolution: 8MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF/QCIFFrame Rate: 8MP, 5MP, 4MP, 3MP, 1080P@30fpsPlayback Capacity: 8ch 720P/4ch 1080P/2ch 4MP/1ch 8MPHDMI Output: 3840x2160, 1920x1080, 1280x720, 1024x768VGA Output: 1920x1080, 1280x720, 1024x768
Hard Disk
Drive quantity: Up to 1 SATA drivesDrive capacity: Up to 8TB
Network
Network Interface: 1 RJ45 10M/100MProtocol: RTP/RTCP, TCP/UDP ,HTTP, DHCP, DNS, NTP, P2P, UPnP, PPPoEPOE Interface: 8Ch 100Mbps, IEEE802.3af/IEEE802.3atPOE Max Power: 30W for single port/75W for all ports
Storage and Backup
Recording Mode: Manual, Continuous, Schedule, Motion, Sensor, Pre/PostPlayback: Search by Time, Calendar, EventsBackup Devices: Via USB Memory Stick, HDD or over the networkLive View: 1, 4 or 9 screens, Digital Zoom
General
Power Supply: DC52VPower Consumption: Max ≤9W (without HDD, USB)Operating Temperature: -10°C ~ 55°COperating Humidity: 0% - 90% RHProduct Dimensions: 260mm(W) x 240mm(D) x 46mm(H)
Application
Supported OS: Windows 7+, MacOS X 10.11+Remote Software: Internet Explorer 9+, EZStation VMSSupported Devices: iOS, AndroidMobile App: EZViewNotifications: Email or Push
Interface
Video Outputs: HDMI (x1), VGA (x1)USB: USB 2.0 (x2)PTZ Control: OnvifControl: Mouse control
