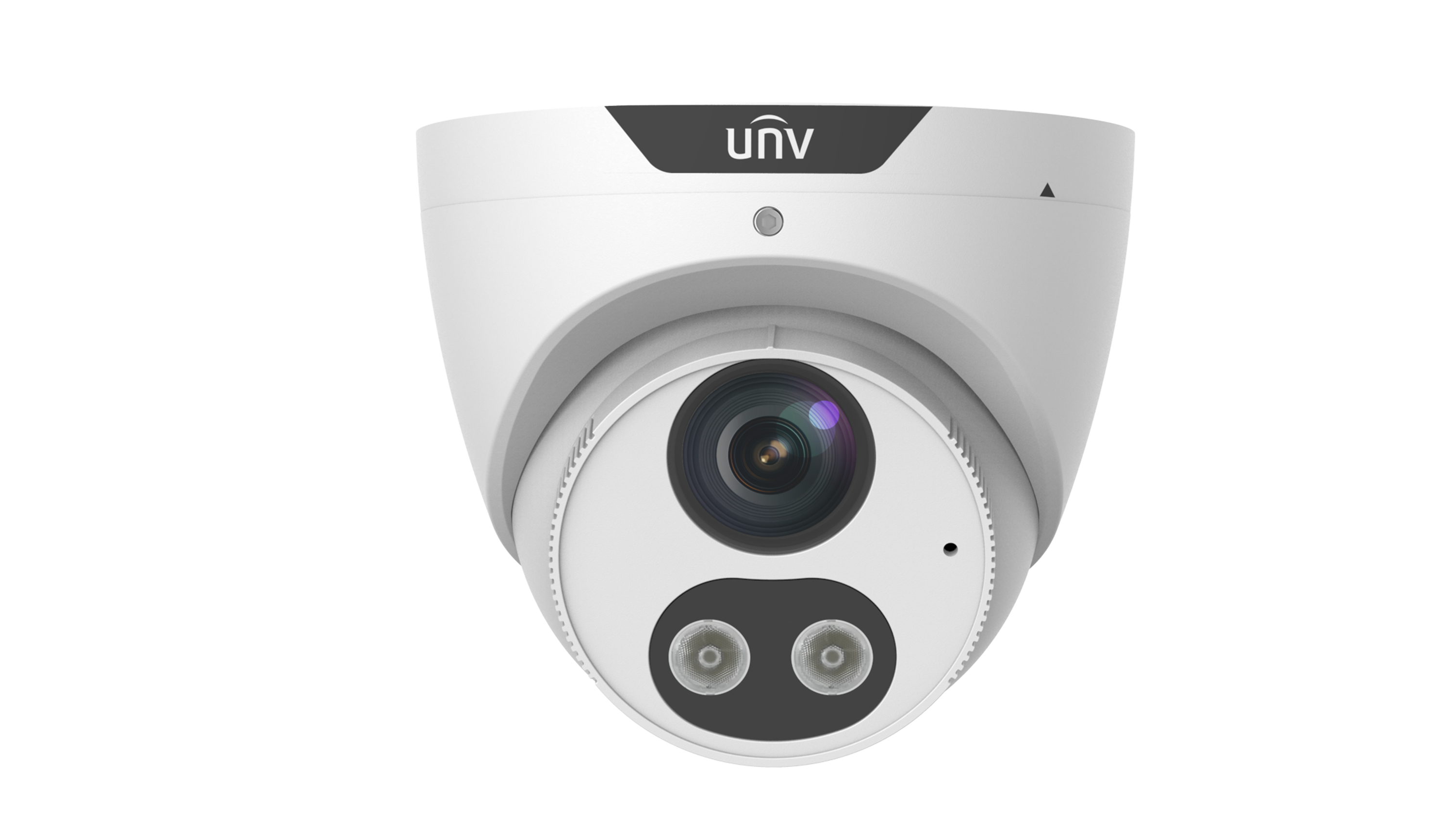

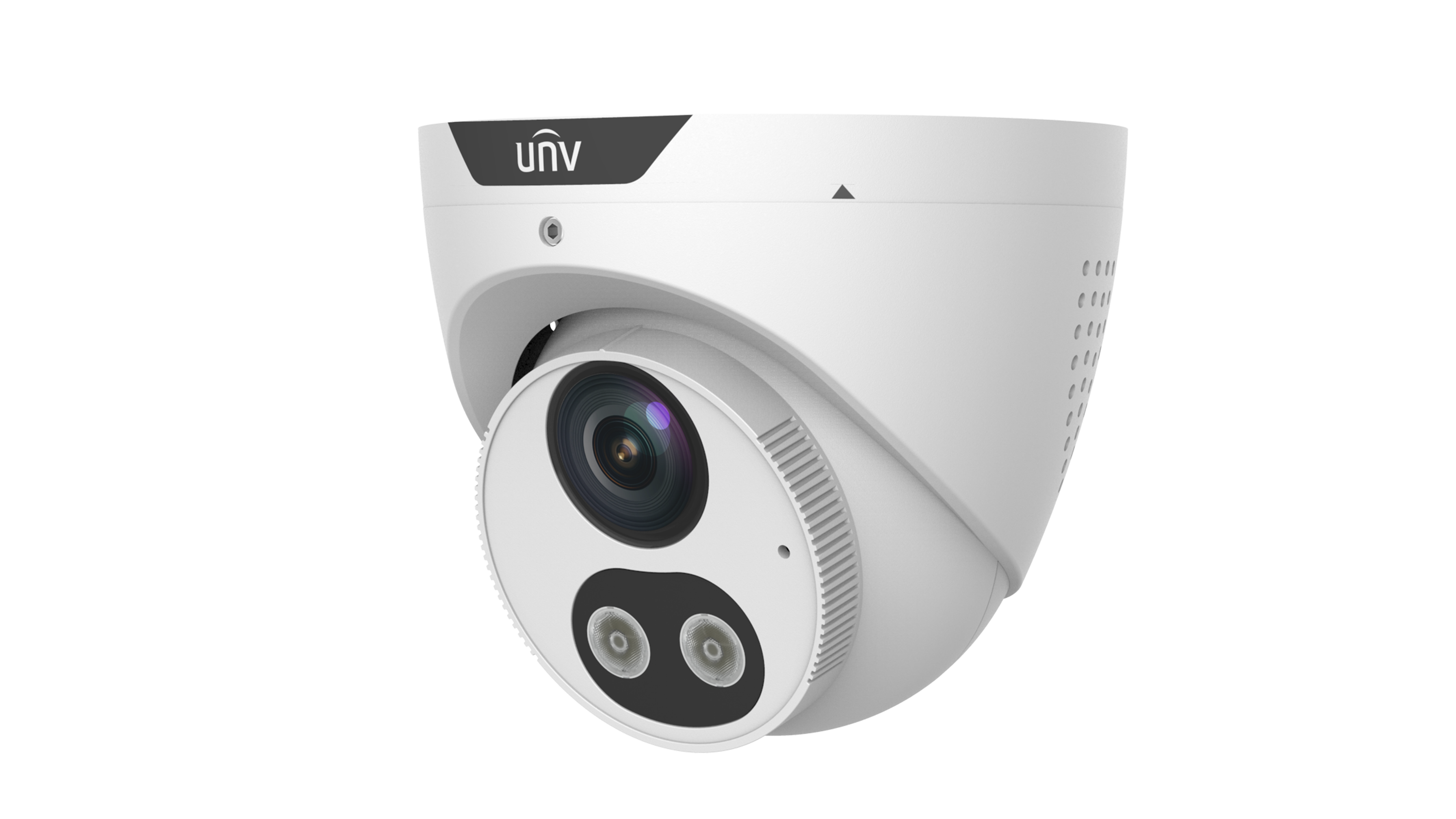

UNV 8MP Tri-Guard Fixed Dual-light Turret Network Camera
Product Ref: UNV-1001129
MPN: IPC3618SB-ADF28KMC-I0
Part of the Uniview Tri-Guard series, this turret IP camera has an impressive 8 megapixel UHD resolution with a 2.8mm fixed-focal lens. This camera has the ColourHunter chipset, allowing for full colour at night. It has 30m of IR range and up to 30m of White Light; this camera also features a built-in microphone and speaker for two-way audio as well as a MicroSD card slot. Alongside this, it also uses deep-learning AI (Artificial Intelligence), allowing it to analyse the picture for movement and only alert/record when a human or vehicle is detected, ignoring animals and nature.
- Resolution 4K/8MP (3840 x 2160), POE
- Fixed 2.8mm Lens, Viewing Angle 106.7° (H)
- Smart IR, Up To 30m of Infrared and 30m White Light Range
- Built-in Microphone and Speaker
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Format Support
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Special Features)
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -30° C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP67 Rated
Technical Specifications
Camera
Image Sensor: ColourHunter CMOS (1/2.8")Aperture: F1.6Resolution: 8MP (4K)Effective Pixels (H x V): 3840 x 2160TV System: PAL / NTSCShutter Speed: Auto/Manual, 1~1/100000sSignal-to-noise Ratio: >56dBIris: ElectronicBack Light Compensation: Via OSD MenuWide Dynamic Range: 120dBDigital Noise Reduction: 2D/3DGain Control: AutoSync Mode: InternalWhite Balance: Auto/ManualLens: Fixed 2.8mm LensField of View: 106.7°Scanning: Progressive ScanOnboard Recording: Yes, to MicroSD card up to 256GB
DORI
Detect: 86.9mObserve: 34.8mRecognise: 17.4mIdentify: 8.7m
Day/Night
Day & Night: IR Cut Filter (Smart IR)Minimum Illumination: Colour 0.0025Lux, 0Lux with IR onIR Range: 25-30mIR Control: CDS AutoWhite Light Range: 25-30m
Network
Ethernet: RJ45 10/100Supported Protocols: IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSLONVIF: Supports ONVIF (Profile G, Profile S, Profile T)POE: YesMain Stream: 3840x2160@20fpsSub Stream: 720x576@30fps
General
Power: DC 12V±25% / PoE (IEEE 802.3af)Housing: MetalPower Consumption: Max 10.5WOperating Temperature: -30°C ~ +60°COperating Humidity: 0% - 95% RHIngress Protection: IP67Approvals: CE / FCCWeight: 400g
Interface
Built-in Microphone: YesBuilt-in Speaker: Yes
