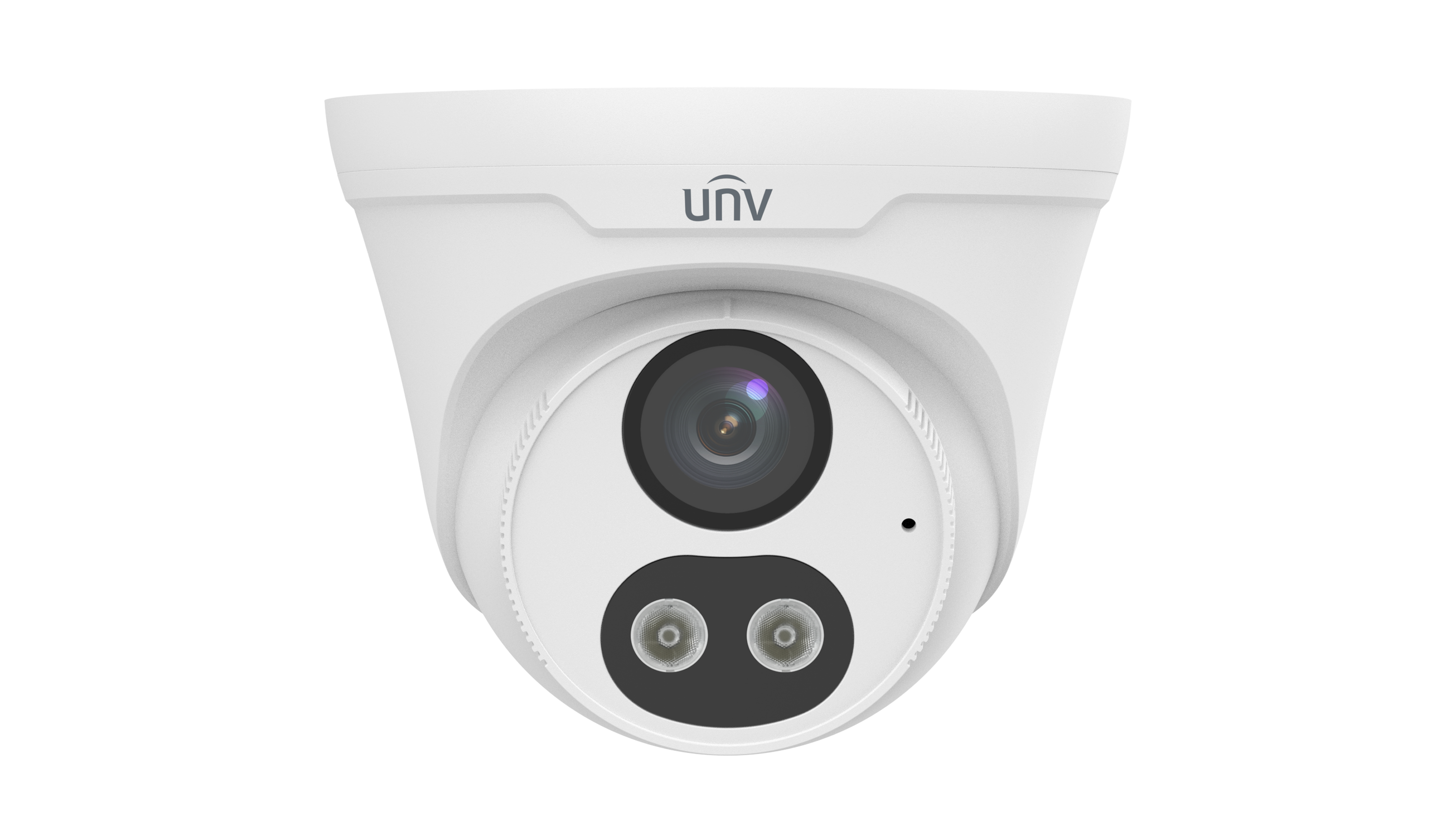

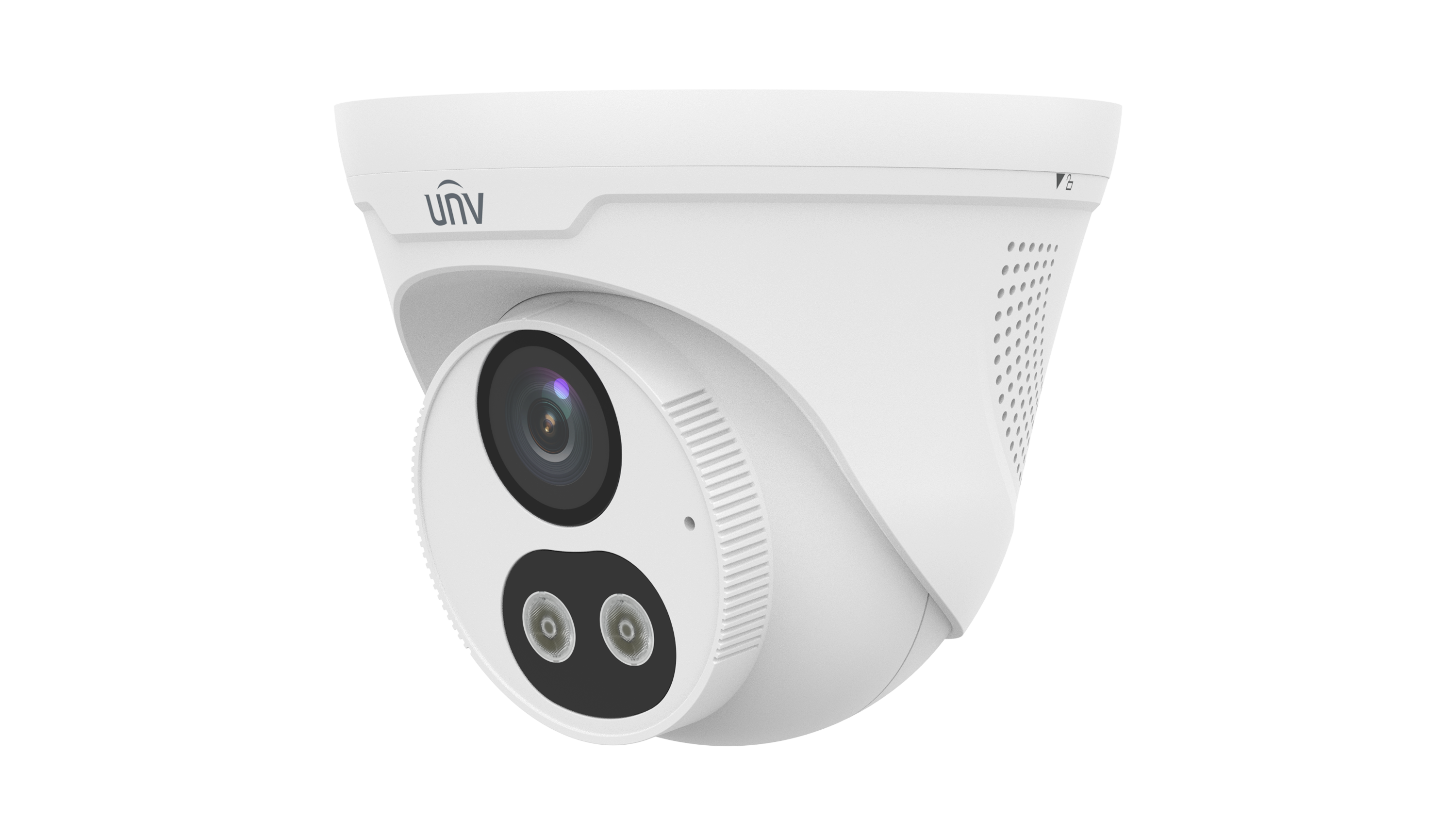

UNV 4MP ColorHunter Fixed Dual-light Turret Network Camera

Product Ref: UNV-1001145

MPN: IPC3614LE-ADF28KC-DL-W

Part of the UNV ColourHunter range, this Uniview turret IP camera boasting an impressive 4 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supporting Ultra265 compression, up to 30m of IR range and up to 30m of White Light. Alongside this, it also features a built-in speaker and microphone allowing for 2-way audio.

- Supports Dual Light (using white light when an event is triggered, otherwise uses IR)
- Two-way audio (built-in microphone and speaker)
- Resolution: 4MP (2688 x 1520), POE
- Fixed 2.8mm Lens, Viewing Angle 97° (H)
- Smart IR, Up to 30m IR Range
- Up to 30m White Light Range
- Anti-Reflection Design To Improve IR Effectiveness
- Human Body Detection, For Advanced Motion Detection
- MicroSD Card Slot (see Special Features)
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI, 9:16 Corridor Mode
- Supports H.264, H.265 or Ultra265
- ONVIF Compliance
- Temperature Range -30°C to 60°C
- Wide Voltage Range (±25%)
- IP67 Rated
- 4kV Surge Protection

Technical Specifications

Camera

Image Sensor: ColourHunter CMOS (1/3")Resolution: 4MPEffective Pixels (H x V): 2688 x 1520TV System: PAL / NTSCShutter Speed: Auto/Manual, 1~1/100000sSignal-to-noise Ratio: >52dBIris: ElectronicBack Light Compensation: Via OSD MenuWide Dynamic Range: 120dbDigital Noise Reduction: 2D/3DGain Control: AutoSync Mode: InternalWhite Balance: Auto/ManualLens: Fixed 2.8mm LensField of View: 97°Scanning: Progressive ScanOnboard Recording: Yes, to MicroSD card up to 512GB

DORI

Detect: 63.0mObserve: 25.2mRecognise: 12.6mIdentify: 6.3m

Day/Night

Day & Night: IR Cut Filter (Smart IR)Minimum Illumination: Colour 0.003Lux, 0Lux with IR onIR Range: 25-30mIR Control: CDS AutoWhite Light Range: 25-30m

Network

Ethernet: RJ45 10/100Supported Protocols: IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSLONVIF: Supports ONVIF (Profile G, Profile S, Profile T)POE: YesMain Stream: 2688x1520@25fpsSub Stream: 1280x720@30fps

General

Power: DC 12V±25% / PoE (IEEE 802.3af)Housing: Metal / PlasticPower Consumption: Max 8WOperating Temperature: -30°C ~ +60°COperating Humidity: ≤95% RHIngress Protection: IP67Approvals: CE / FCCWeight: 320g

Interface

Built-in Microphone: YesBuilt-in Speaker: Yes
