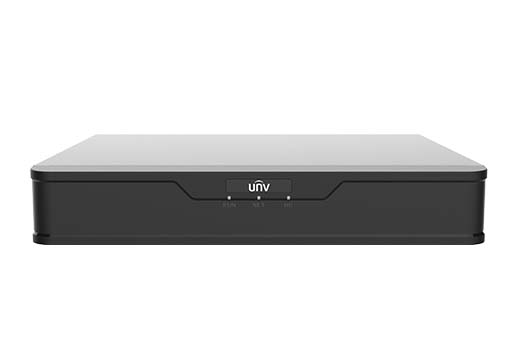

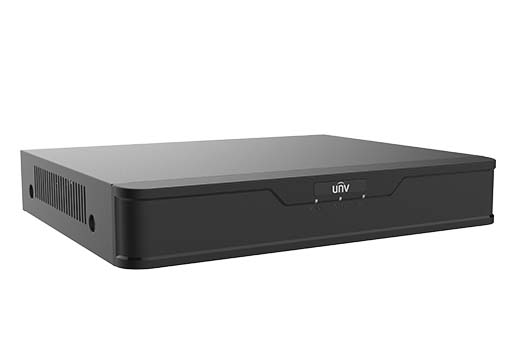

UNV XVR301-08Q3 Lite Hybrid DVR 8 Channel (1 HDD)
Product Ref: UNV-1001174
MPN: UV-XVR301-08Q3
UNV Hybrid DVR range, this DVR (Digital Video Recorder) has HD recording and playback of all channels. It includes a user-friendly mouse driven interface with full remote network and mobile phone access. The DVR can also auto-detect ONVIF compatible IP cameras; it also supports AHD, TVI, CVI, and Analogue cameras.
- 12 Channel Video & Audio (up to 8 BNC and up to 4 IP cameras)
- Hybrid DVR (5-in-1)
- Supports up to 5MP Cameras
- Supports Audio-over-Coax Cameras (TVI only)
- Bandwidth IN: 56Mbps, OUT: 64Mbps
- HDMI, VGA & CVBS Output
- ONVIF Compliance (Profiles S, T)
- Supports H.264 and H.265
- Fanless design
- Two-way Audio
- Mac Compatible
- Compatible with Sentinel Remote Monitoring
Technical Specifications
Video/Audio Input
Video Input: 12ch H.264/H.265Incoming Bandwidth: 56MbpsOutgoing Bandwidth: 60MbpsAudio Input: 1ch, RCASupported Technologies: AHD, TVI, CVI, Analogue, IP
Video/Audio Output
Live View/ Playback/ Recording Resolution: 5MP/4MP/3MP/1080P/720P/D1/VGA/CIF/QCIFFrame Rate: 5MP Lite@12fps / 4MP Lite@15fps / 1080P@15fpsPlayback Capacity: 8ch 1080PHDMI Output: 3840x2160, 1920x1080, 1280x720, 1024x768VGA Output: 1920x1080, 1280x720, 1024x768Audio Output: 1ch, Line out
Hard Disk
Drive quantity: Up to 1 SATA driveDrive capacity: Up to 8TB
Network
Network Interface: 1 RJ45 10M/100MProtocol: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTPPOE Interface: N/APOE Max Power: N/A
Storage and Backup
Recording Mode: Manual, Continuous, Schedule, Motion, Sensor, Pre/PostPlayback: Search by Time, Calendar, EventsBackup Devices: Via USB Memory Stick, HDD or over the networkLive View: 1, 4, 6, 8, 9 or 16 screens, Digital Zoom
General
Power Supply: 12V DCPower Consumption: Max 10W (without HDD, USB)Operating Temperature: -10°C ~ 55°COperating Humidity: 0% - 90% RHProduct Dimensions: 260mm(W) x 226mm(D) x 47mm(H)
Application
Supported OS: Windows 10+, MacOS X 10.11+Remote Software: Internet Explorer 11+, EZStation VMSSupported Devices: iOS, AndroidMobile App: EZViewNotifications: Email or Push
Interface
Video Outputs: HDMI (x1), VGA (x1), BNC (x1)USB: USB 2.0 (x2)Audio I/O: Microphone in (x1), Audio line out (x1)Alarm I/O: Alarm input (x4), Alarm output (x1)PTZ Control: Onvif / RS-485Control: Mouse control
