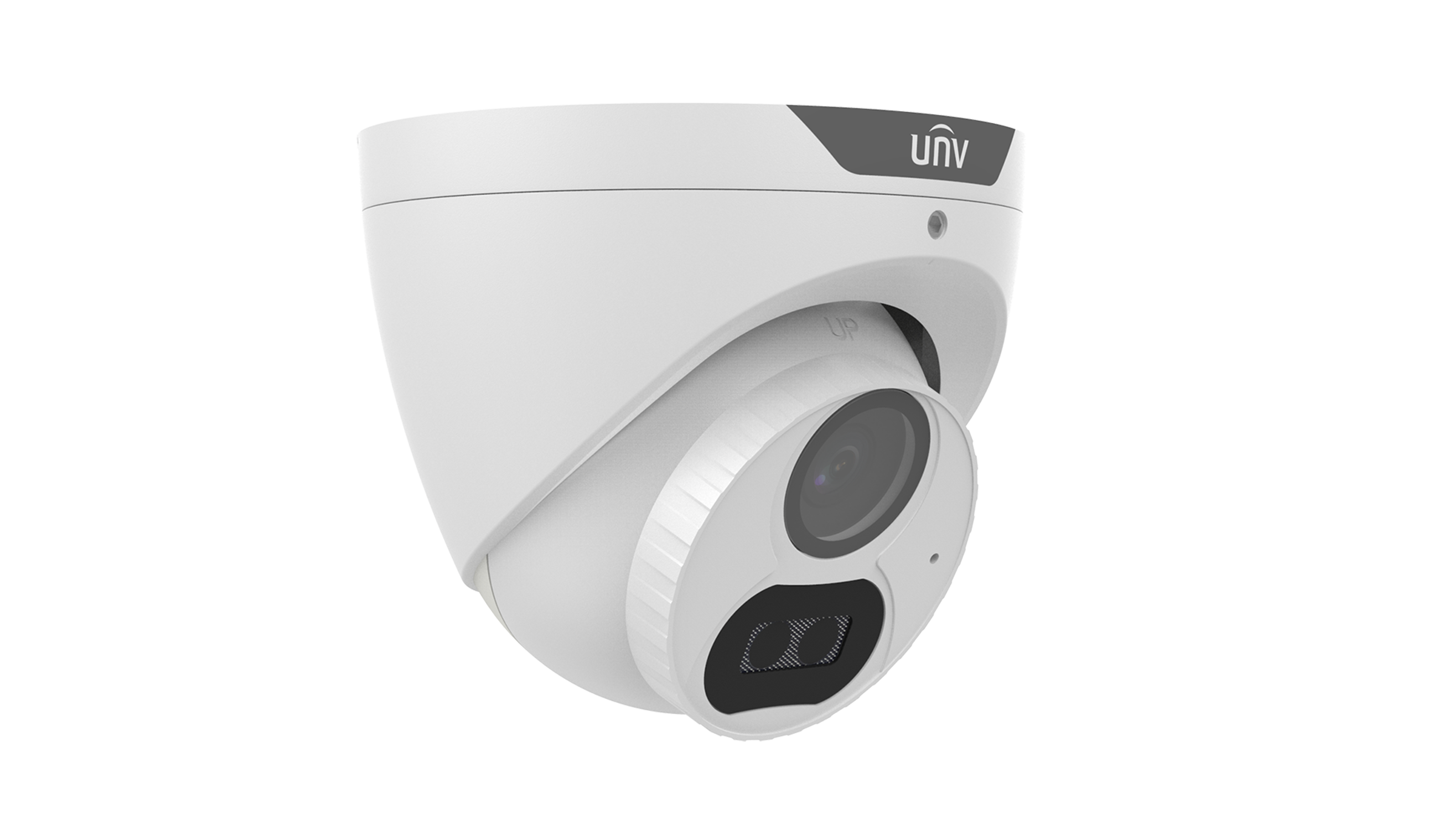

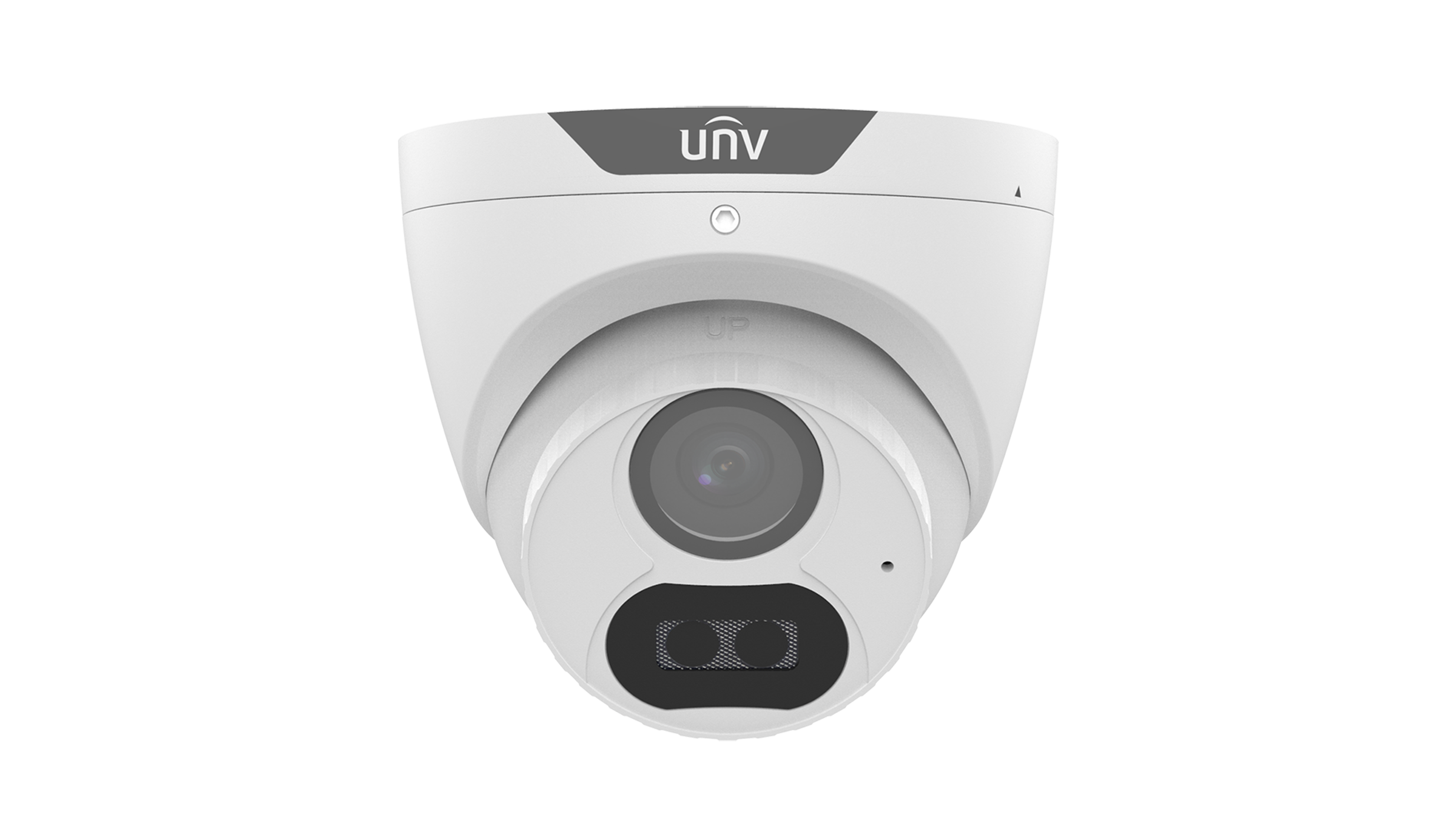

UNV 5MP LightHunter Fixed IR Turret Analog Camera

Product Ref: UNV-1001102

MPN: UV-UAC-T125-AF28LM-W

Part of the LightHunter range, this Uniview turret HD camera boasting an impressive 5 megapixel HD recording resolution and a 2.8mm fixed-focal lens. Supports AHD, TVI, CVI & 960H technologies and has a night vision range of 40m.

- Resolution 5MP (2880 x 1620)
- Fixed 2.8mm Lens, Viewing Angle 109.1° (H)
- Smart IR, Up To 40m IR Range
- Built-in Microphone (only TVI or CVI)
- Day/Night, IR Cut Filter, 2D DNR
- WDR, OSD
- Supports H.264 or H.265
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Built-in surge protection, up to 4kV
- IP67 Rated

Technical Specifications

Camera

Image Sensor: LightHunter CMOS (1/2.7")Resolution: 5MPEffective Pixels (H x V): 2880 x 1620TV System: PAL / NTSCShutter Speed: Auto/Manual, 1/25~1/50000sSignal-to-noise Ratio: >56dBIris: ElectronicBack Light Compensation: Via OSD MenuWide Dynamic Range: dWDRDigital Noise Reduction: 2DGain Control: AutoSync Mode: InternalWhite Balance: Auto/ManualLens: Fixed 2.8mm LensField of View: 109.1°Scanning: Progressive Scan

Day/Night

Day & Night: IR Cut Filter (Smart IR)Minimum Illumination: Colour 0.005Lux, 0Lux with IR onIR Range: 35-40mIR Control: CDS Auto

General

Power: DC 12V±25%Housing: Metal / PlasticPower Consumption: Max 3.4WOperating Temperature: -30°C ~ +60°COperating Humidity: ≤95% RHIngress Protection: IP67Approvals: CE / FCC / ULWeight: 334g
