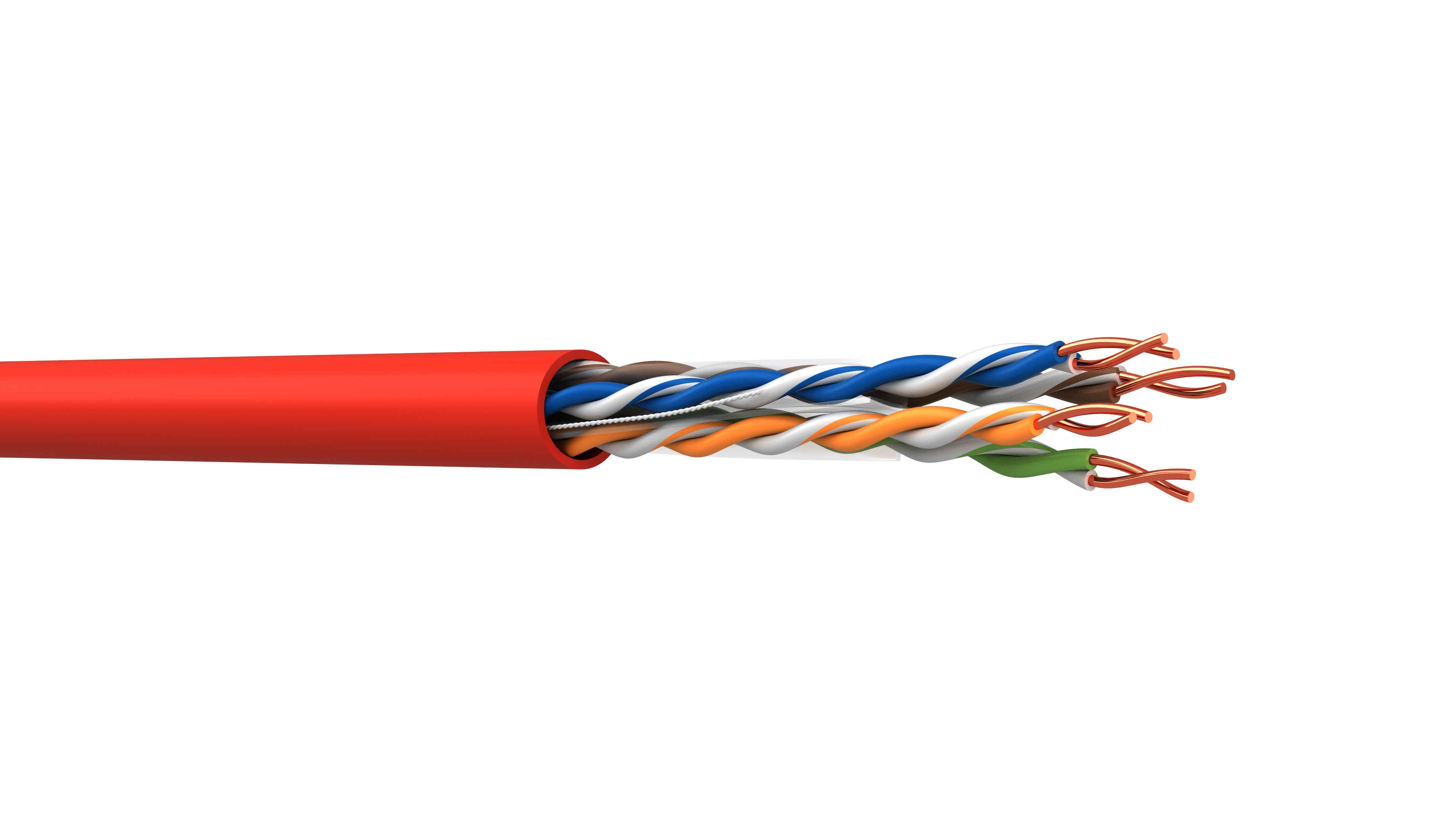

WEBRO CAT6 HDBaseT LSNH *RED* (305M) 4 Pair U/UTP, CPR Class ECA

Product Ref: 120452E-LSOH-RED-305


Conductor Material: Bare Copper, Solid
Insulation Material: High Density Polyethylene (HDPE)
Number of Pairs: 4
Pair Colours: Blue, Blue/White / Orange, Orange/White / Green, Green/White / Brown, Brown/White
Sheath Material: Low Smoke Non-Halogen (LSNH)
Sheath Colour: Red

Overall Diameter: 5.9mm ± 0.3mm
Temperature Range: Fixed -10°C to +60°C / Flexing 0°C to +50°C
Bend Radius: 8 x Overall Diameter
Weight: 40 kg/km

Max. Conductor DC Resistance @ 20°C: ≤ 95 Ω/km
Max. Resistance Unbalanced: < 2.5%
Max. Insulation Resistance: > 5000 MΩ.km
Mutual Capacitance: < 5.6 nF/100m
Capacitance Unbalanced: ≤ 1600 pF/km
Impedance @ 100 MHz: 100 Ω ± 15
Velocity of Propagation: 65 %
Delay Skew: < 45 ns / 100m
Dielectric Strength - DC: 1kV for 1minute
