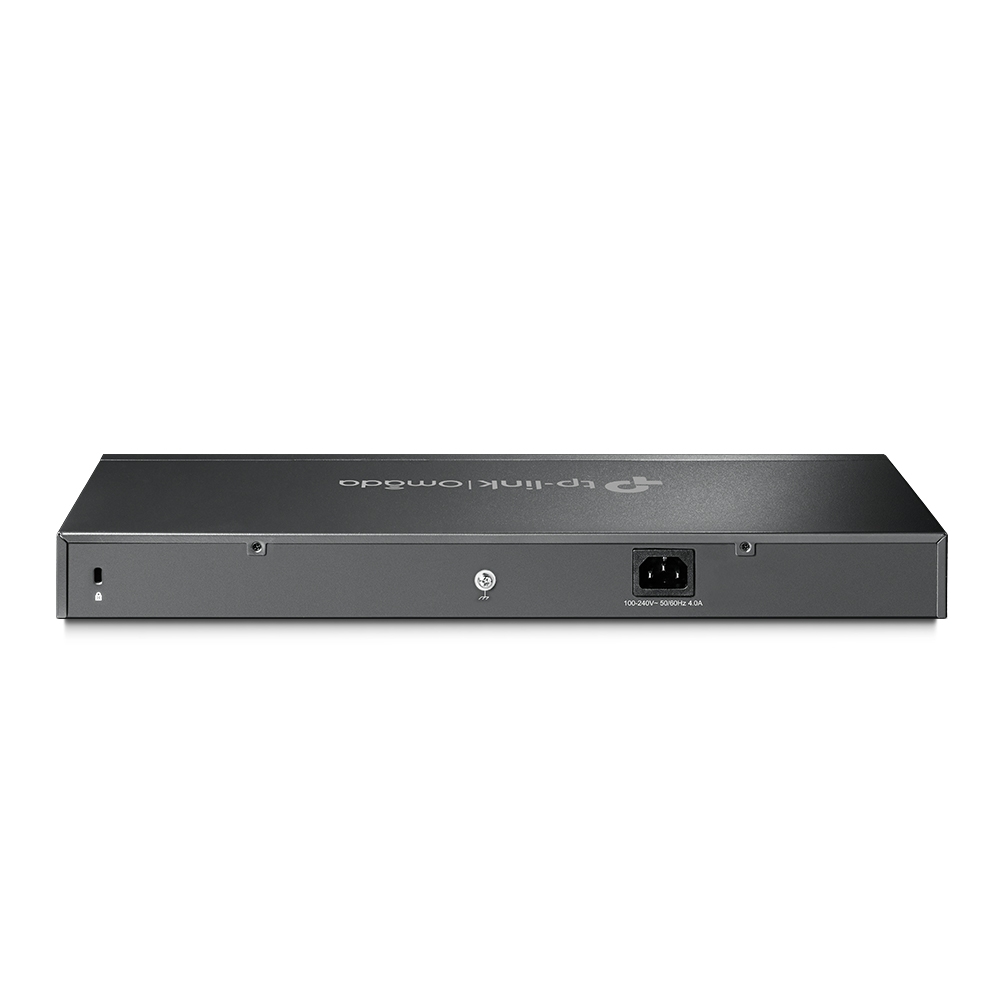

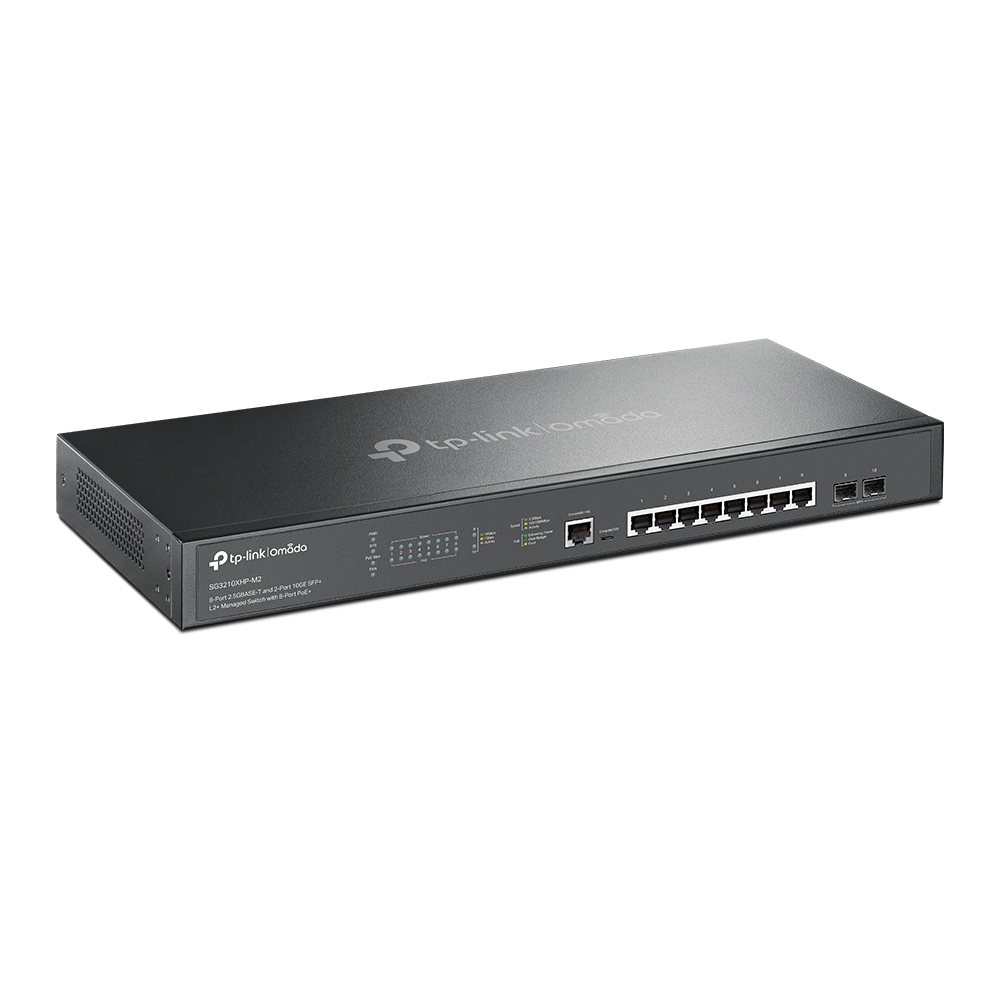

TP Link SG3210XHP-M2 Omada 8-Port 2.5G & 2-Port SFP, L2+ Managed Switch with 8-Port

Technical Specifications

General

Interface

• 8 x 100/1000Mbps/2.5Gbps RJ45 Ports
• 2 x 10GE SFP+ Slots

Console

• 1 x RJ45 Console Port
• 1 x Micro-USB Console Port

PoE

PoE Standard

• 802.3af/at

PoE Ports

• 8 (up to 30 W)

PoE Power Budget

• 240 W

Performance

Switching Capacity

• 80 Gbps

Packet Forwarding Rate

• 59.52 Mpps

MAC Address Table

• 16K

Packet Buffer

• 12 Mbit

Number of IP Interfaces

• 16

Number of Static Routers

• 48 (IPv4, IPv6)

Jumbo Frame

• 9 KB

Physical & Environmental

Power Supply

• 100-240 V AC~50/60 Hz

Max Power Consumption

• 17.24 W (110V/60Hz) (no PD connected)
• 291.49 W (110V/60Hz) (with 240 W PD connected)

Max Heat Dissipation

• 58.82 BTU/h (110 V/60 Hz) (no PD connected)
• 994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected)

Dimensions (W x D x H)

• 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in.)

Fan Quantity

• 2

Installation

• Rack Mountable

Operating Temperature

• 0ºC to 50ºC (32ºF to 122ºF)

Storage Temperature

• -40ºC to 70ºC (-40ºF to 158ºF)

Operation Humidity

• 10% to 90% RH, non-condensing

Storage Humidity

• 5% to 90% RH, non-condensing

Certification

• CE, FCC, RoHS

Software Features

Omada Support

• Support Omada Hardware Controller (OC200/OC300 - sold separately, see accessories tab), Software Controller, Cloud-Based Controller
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• ZTP (Zero-Touch Provisioning)
  • Zero-Touch Provisioning is supported when using Omada Cloud-Based Controller

L3 Features

• 16 IPv4/IPv6 Interfaces
• Static Routing
  • 48 static routes
• Static ARP
  • 128 static entries
• 512 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay
  • DHCP interface relay
  • DHCP VLAN relay
• DHCP L2 Relay

L2 Features

• Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports per

VLAN

• VLAN Group
  • Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN (QinQ)
  • Port-Based QinQ
  • Selective QinQ
• Voice VLAN

QoS

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
  • SP+WRR
• Bandwidth Control
  • Port/Flow based Rating Limiting
• Smoother Performance
• Action for Flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark

ACL

• MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type
• IP ACL
  • Source IP
  • Destination IP
  • Fragment
  • IP Protocol
  • TCP Flag
  • TCP/UDP Port
  • DSCP/IP TOS
  • User Priority
• Combined ACL
• IPv6 ACL
• Policy
  • Mirroring
  • Redirect
  • Rate Limit
  • QoS Remark
• ACL apply to Port/VLAN
• Time-based ACL

Security

• IP-MAC-Port Binding
  • 512 Entries
  • DHCP Snooping
  • ARP Inspection
  • IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
  • 512 Entries
  • DHCPv6 Snooping
  • ND Detection
  • IPv6 Source Guard: 100 Entries
• DoS Defend
• Static/Dynamic Port Security
  • Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio/pps control mode
• 802.1X
  • Port base authentication
  • Mac base authentication
  • VLAN Assignment
  • MAB
  • Guest VLAN
  • Support RADIUS authentication and accountability
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control

ISP Features

• 802.3ah Ethernet Link OAM
• L2PT (Layer 2 Protocol Tunneling)
• PPPoE ID Insertion
• Device Link Detect Protocol (DLDP)
• sFlow
• DDM

Management

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
  • Trap/Inform
  • RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

IPv6 Support

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbour discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
