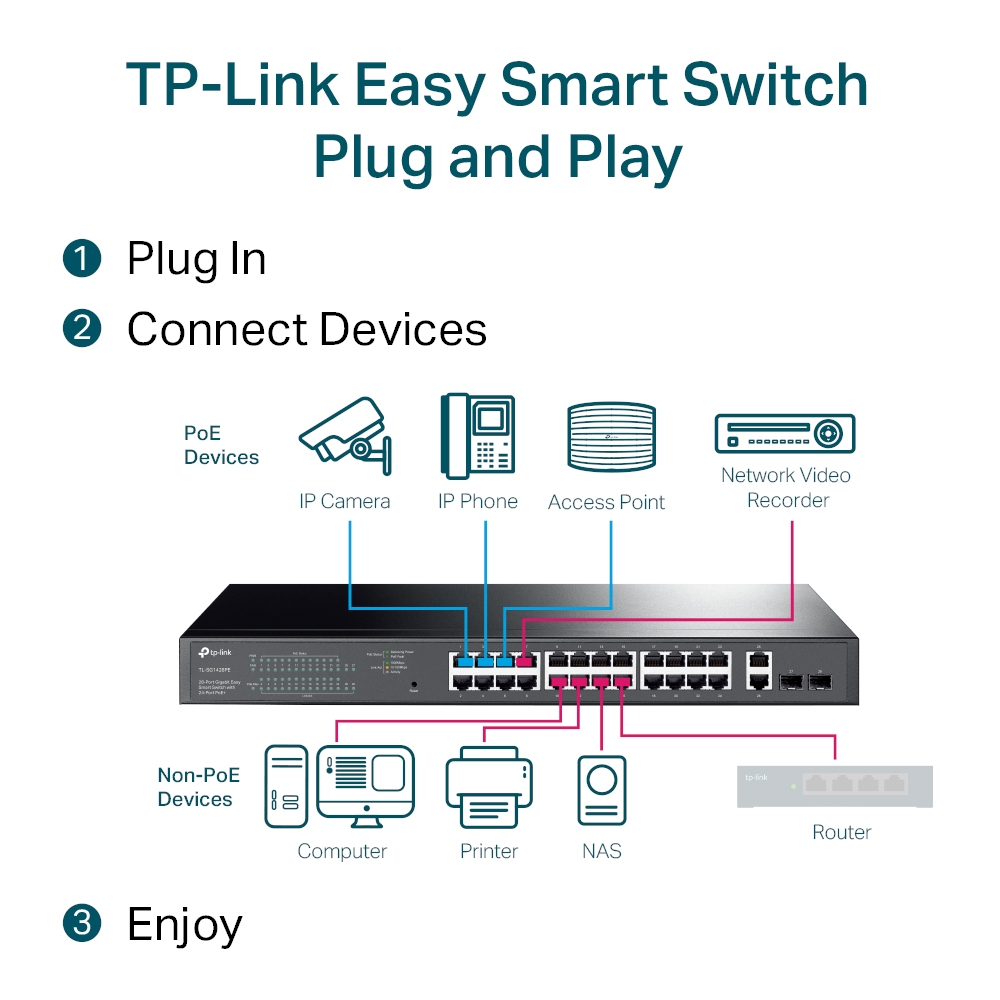

TP Link SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+250W
Product Ref: TL-SG1428PE
MPN: 68610
- Twenty-four (24) 10/100/1000Mbps RJ45 PoE+ Ports.
- Two (2) non-PoE 1GbE RJ45 slots and two (2) 1GbE SFP Slots.

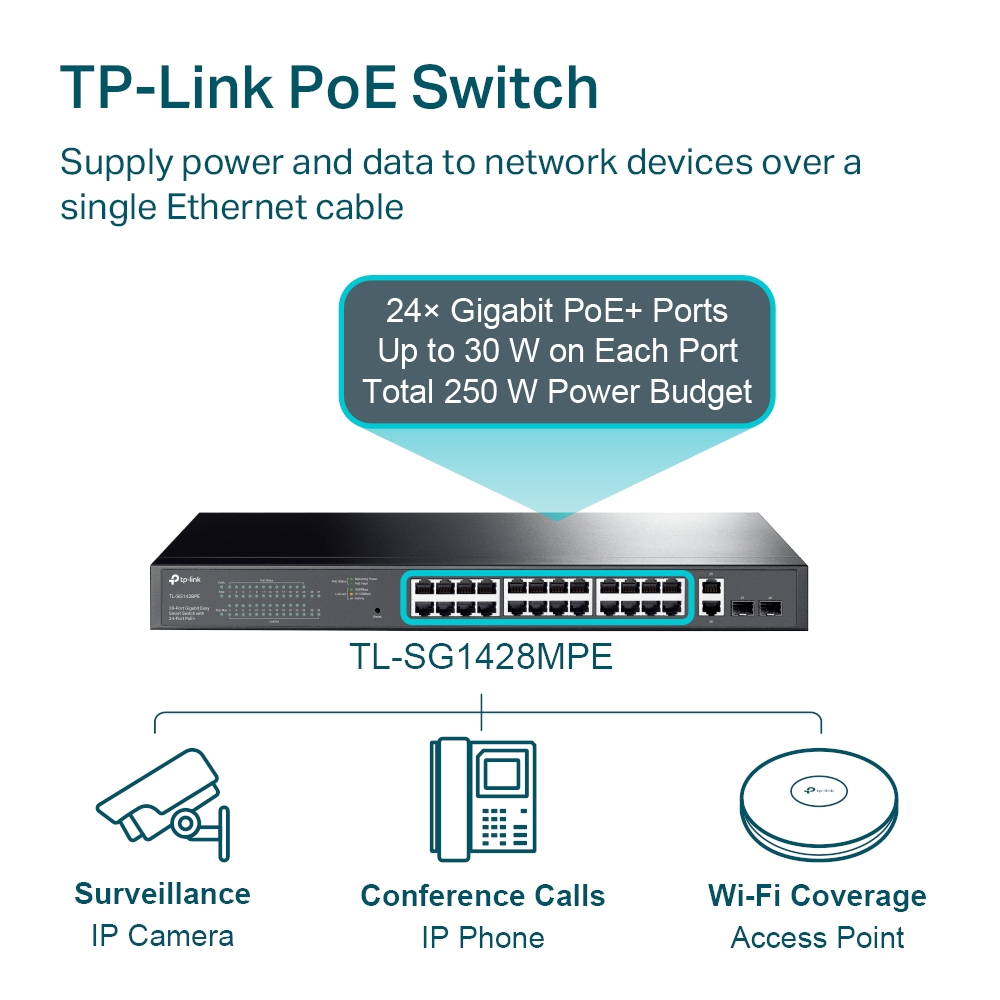

- PoE power budget up to 250W, making it ideal for small to medium business surveillance systems.
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring.
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices.
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimising traffic for IPTV.
- Intelligent power management can protect the switch from overload.
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
- 26 x 10/100/1000 Mbps RJ45 Ports
- 2 x Gigabit SFP Ports
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-X MMF, SMF
Fan Quantity
- 2 Fans
Physical Security Lock
- Yes
Power Supply
- 100-240V AC, 50/60 Hz
PoE+ Ports (RJ45)
- Standard: 802.3at/802.3af compliant
- PoE+ Ports: 24 Ports
- Power Supply: 250 W
Dimensions (W x D x H)
- 440 x 220 x 44 mm (17.3 x 8.7 x 1.73 in.)
Mounting
- Rack Mountable
Max Power Consumption
- 27 W (220/50Hz. no PD connected)
- 304.7 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation
- 92.07 BTU/h (no PD connected)
- 1039.03 BTU/h (with 250 W PD connected)
Performance
Switching Capacity
- 56 Gbps
Packet Forwarding Rate
- 41.7 Mbps
MAC Address Table
- 8K
Packet Buffer Memory
- 4.1 Mbit
Jumbo Frame
- 9 KB
Software Features
Quality of Service
- Support Port-based 802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
VLAN
- Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Management
- Web-Based GUI
- Easy Smart Configuration Utility
Transmission Method
- Store-And-Forward
Certification
- CE, FCC, RoHS
Environment
- Operating Temperature: 0ºC ~ 50ºC (32ºF ~ 122ºF)
- Storage Temperature: -40ºC ~ 70ºC (-40ºF ~ 158ºF)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
Package Contents
- 1 x TL-SG1428PE
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Rackmount Kit
- 1 x Rubber Feet
