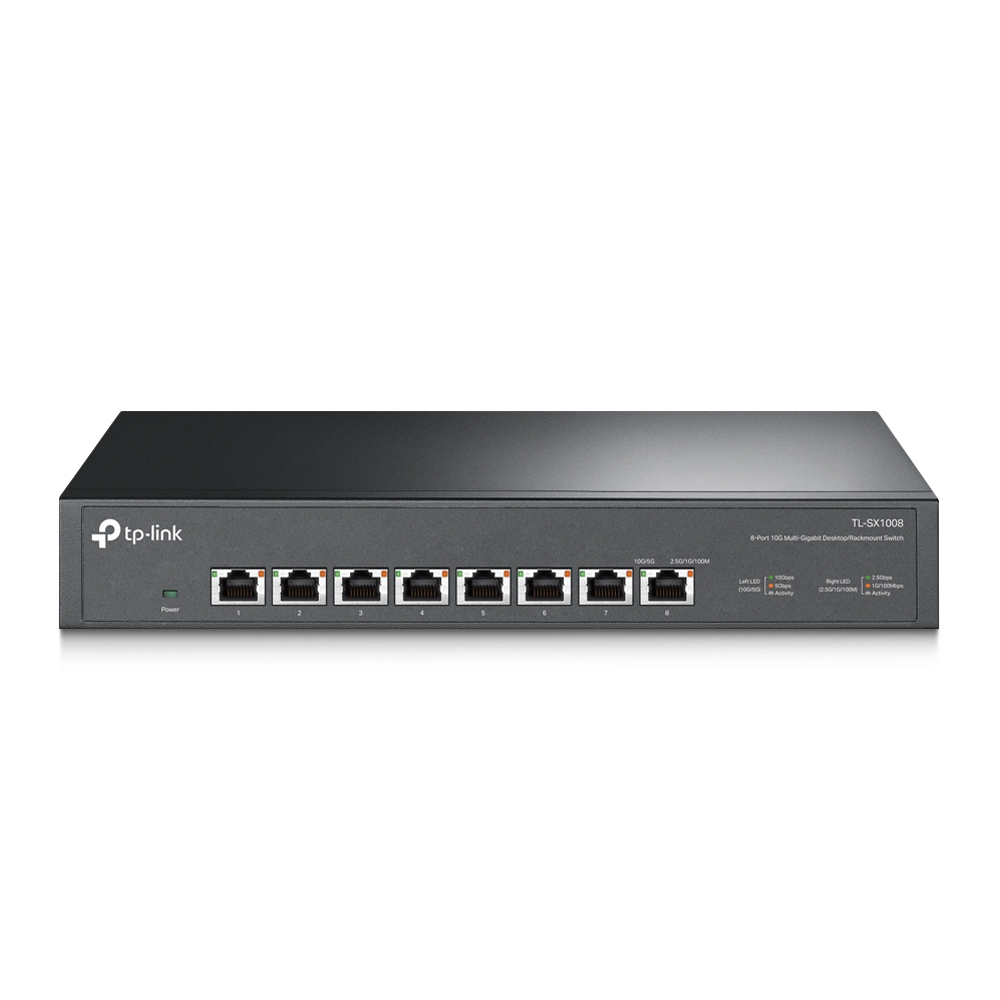

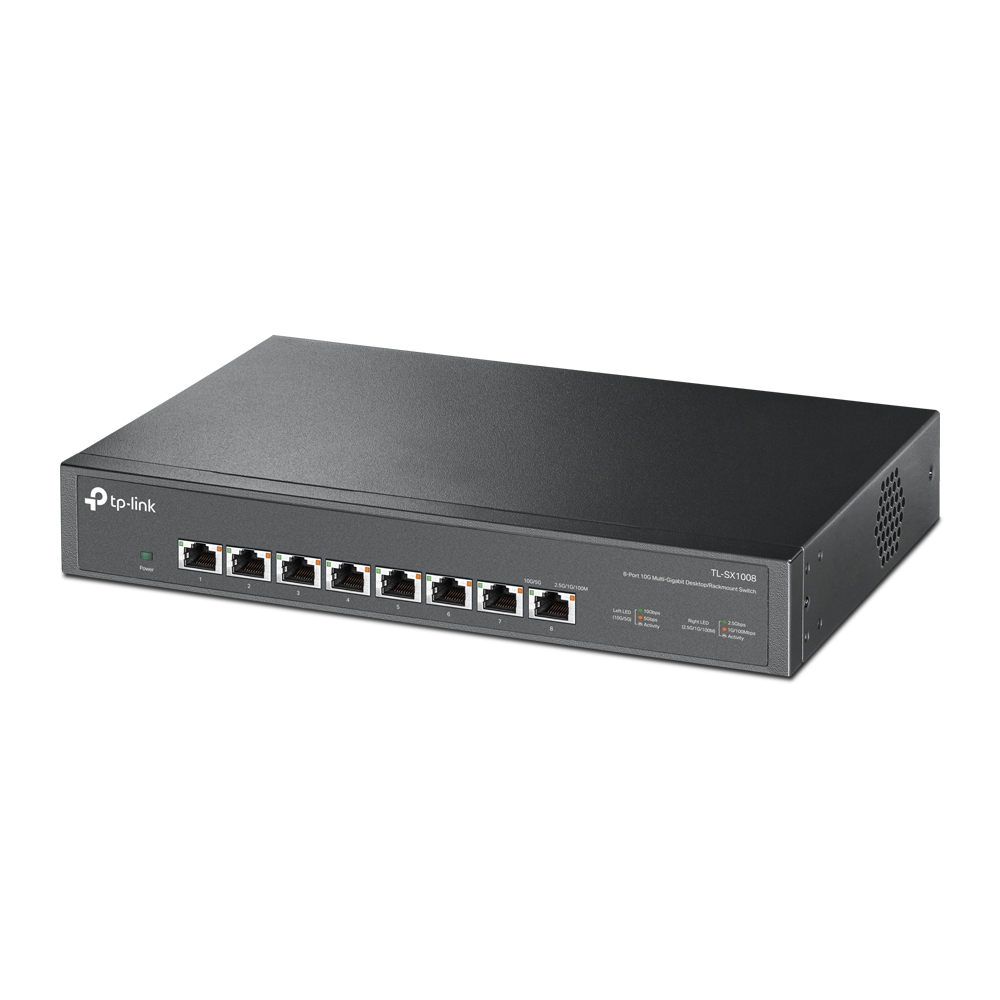

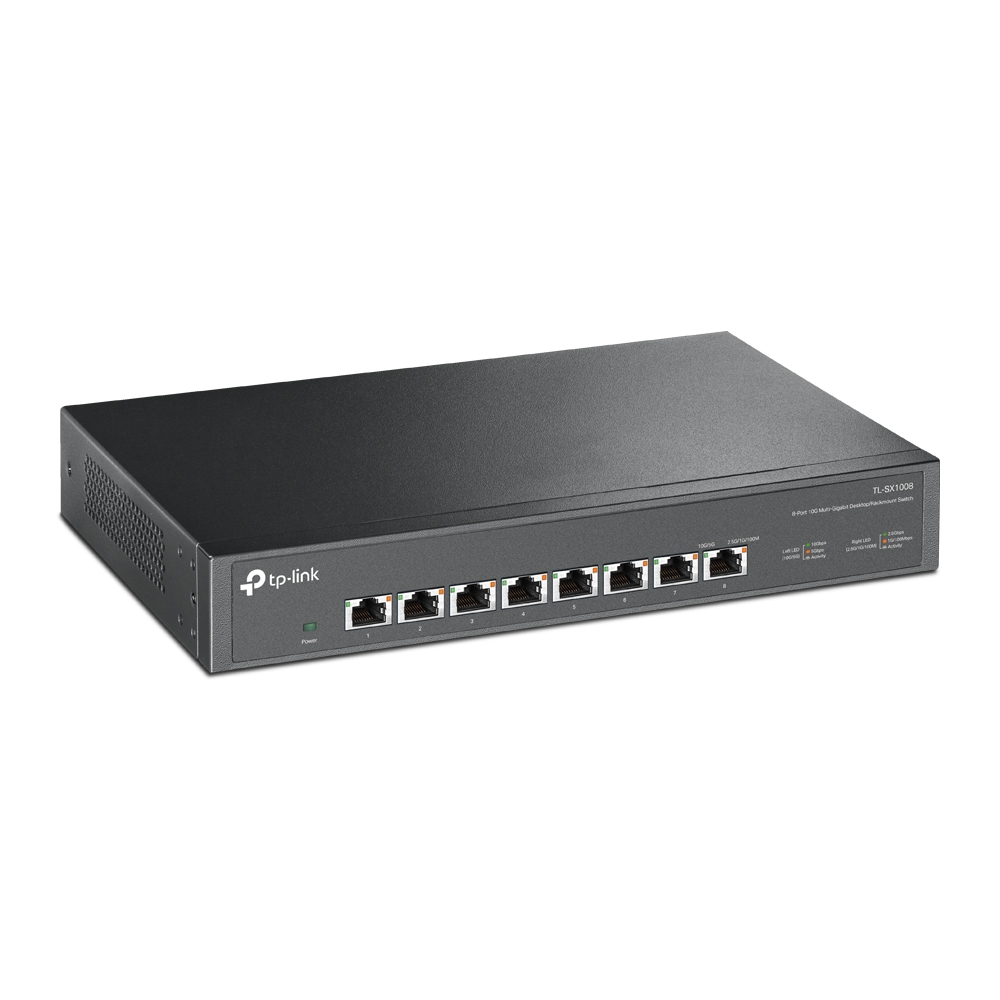

TP Link SX1008 8-Port 10Gbe Desktop Network Switch
Product Ref: TL-SX1008
MPN: 64901
- Eight 10 Gbps Ports
Eight (8) 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity. - Lightning-Fast Connections
Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more. - Ideal for Various Scenarios
Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment. - Optimal 5-Speed Connections
Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. - Low-Noise Operation
Intelligent fan speed adjustment ensures minimal noise. - Wide Operation Temperature
Durable metal casing and a heat dissipating design guarantee a wide operating temperature (0ºC – 50ºC). - Plug and Play
Allows for easy deployment without the need for a technician.
Technical Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
Interface
- 8 x 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
- 1 (Intelligent fan speed adjustment)
External Power Supply
- 100–240 VAC, 50/60 Hz, 0.8A
LED Indicator
- System Power: 1
- Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
Dimensions (W x D x H)
- 294 x 180 x 44 mm (11.6 x 7.1 x 1.7 in.)
Max Power Consumption
- 31.2 W
Performance
Switching Capacity
- 160 Gbps
Packet Forwarding Rate
- 119.0 Mpps
MAC Address Table
- 32 K
Packet Buffer Memory
- 2 Mb
Jumbo Frame
- 10 KB
Software Features
Advanced Features
- 802.3X Flow Control
- 802.1p/DSCP QoS
Transfer Method
- Store and Forward
Other Specifications
Certification
- CE, FCC, RoHS
Environment
- Operating Temperature: 0ºC – 50ºC (32ºF – 122ºF)
- Storage Temperature: -40ºC – 70ºC (-40ºF – 158ºF)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensingl
Package Contents
- 1 x TL-SX1008 8-Port 10GbE Multi-Gigabit Switch
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Rackmount Kit
- 1 x Rubber Feet
