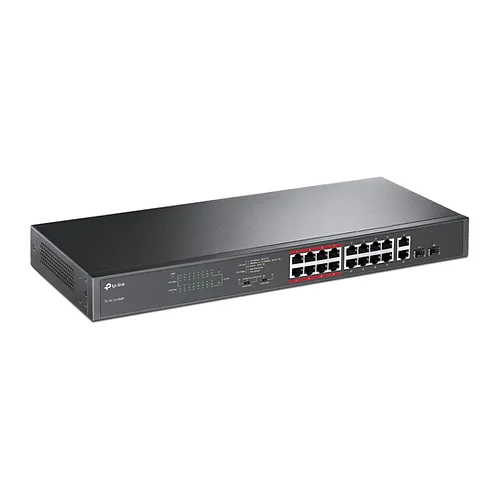

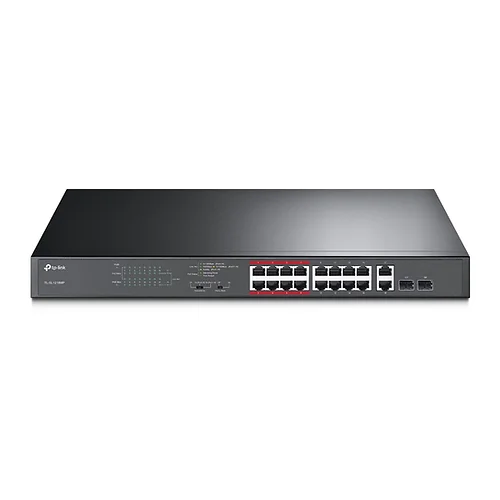

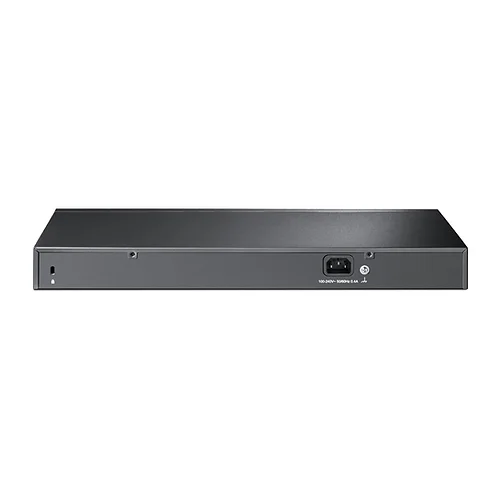

TP Link SL1218MP 16-Port 10/100 Mbps Rackmount Switch with 16-Port PoE+ 192W
Product Ref: TL-SL1218MP
MPN: 63970
- 16 x PoE+ 10/100Mbps Fast Ethernet RJ45 ports.
- 2 x Gigabit RJ45 ports.
- 2 x combo Gigabit SFP Ports.
- Up to 250m data and power transmission under extend mode, specially designed for surveillance system.
- Priority mode for ports 1-8 guarantees the quality of sensitive applications like video monitor.
- High PoE+ power budget with up to 30W for each PoE port and 192W for all PoE ports.
- Easy to use, with no configuration or installation needed.
Technical Specifications
General
Interfaces
- 16 x 10/100Mbps RJ45 Ports
- 2 x 10/100/1000Mbps RJ45 Ports
- 2 x Gigabit SFP Slots
PoE
PoE Standard
- 802.3af/at
PoE Ports
- Sixteen (16)
PoE Power Budget
- 192W max.
- Up to 30W per port
Performance
Switching Capacity
- 7.2Gbps
Packet Forwarding Rate
- 5.36Mpps
MAC Address Table
- 8K
Package Buffer
- 4.1Mbit
Jumbo Frame
- 10KB
Physical & Environment
Power Supply
- 100-240V AC, 50/60Hz
Max Power Consumption
- 217.22W (with 192W PD Connected)
- 18.73W (no PD Connected)
Max Heat Dissipation
- 741.15 BTU/h (with 192W PD Connected)
- 63.91 BTU/h (no PD Connected)
Dimensions (W × D × H)
- 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in.)
Fan Quantity
- Two (2)
Operating Temperature
- 0°C~40°C (32°F~104°F)
Storage Temperature
- -40°C~70°C (-40°F~158°F)
Operating Humidity
- 10%~90%RH non-condensing
Storage Humidity
- 5%~90%RH non-condensing
Certification
- CE, FCC
