TP Link POE260S 2.5G PoE+ Injector 30W
Product Ref: TL-POE260S
- Two (2) 2.5 Gbps ports ensure faster transmission.
- Complies with IEEE802.3af/at standards, supplies up to 30 W.

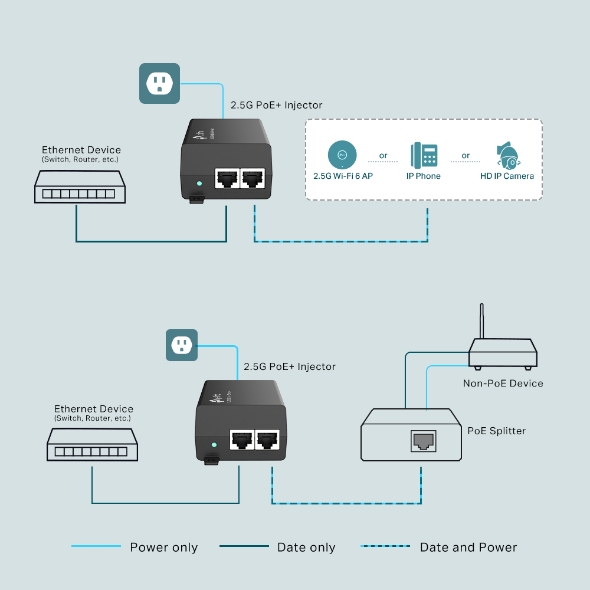

- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable.
- Automatically determines and supplies the exact power to meet the device's need.
- Wall-mounting and desktop design accommodates most installation scenarios.
- Plug & Play installation, requires no configuration.
- Integrated power supply.
Technical Specifications
Network Specifications
Standards and Protocols
- IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at
General Specifications
Certification
- FCC, CE, RoHS
Environment
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90%RH non-condensing
- Storage Humidity: 5% to 90%RH non-condensing
Hardware Specifications
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100 ohms STP (maximum 100 m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100 ohms STP (maximum 100 m)
- 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
- 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)
Ports
- 1 x 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port
- 1 x 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port
- 1 x AC socket
Power Consumption
- Input: 100-240 V, 50/60 Hz
- Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function
- Auto-Sensing Algorithm enables providing power with 802.3af/at PD
- Auto-determine the necessary power requirements
- Wall-mounting and desktop installation supported
- Plug-and-Play
LED Indicator
- ON: Supplying power normally
- OFF: No power supply
Dimensions ( W x D x H )
- 4.9 x 2.3 x 1.4 in (125 x 59.4 x 36.8 mm)
Package
Package Contents
- 1 x TL-POE260S
- 1 x Power Cord
- 1 x RJ45 Cable
- 1 x Wall Mounting Kit
- 1 x Installation Guide
