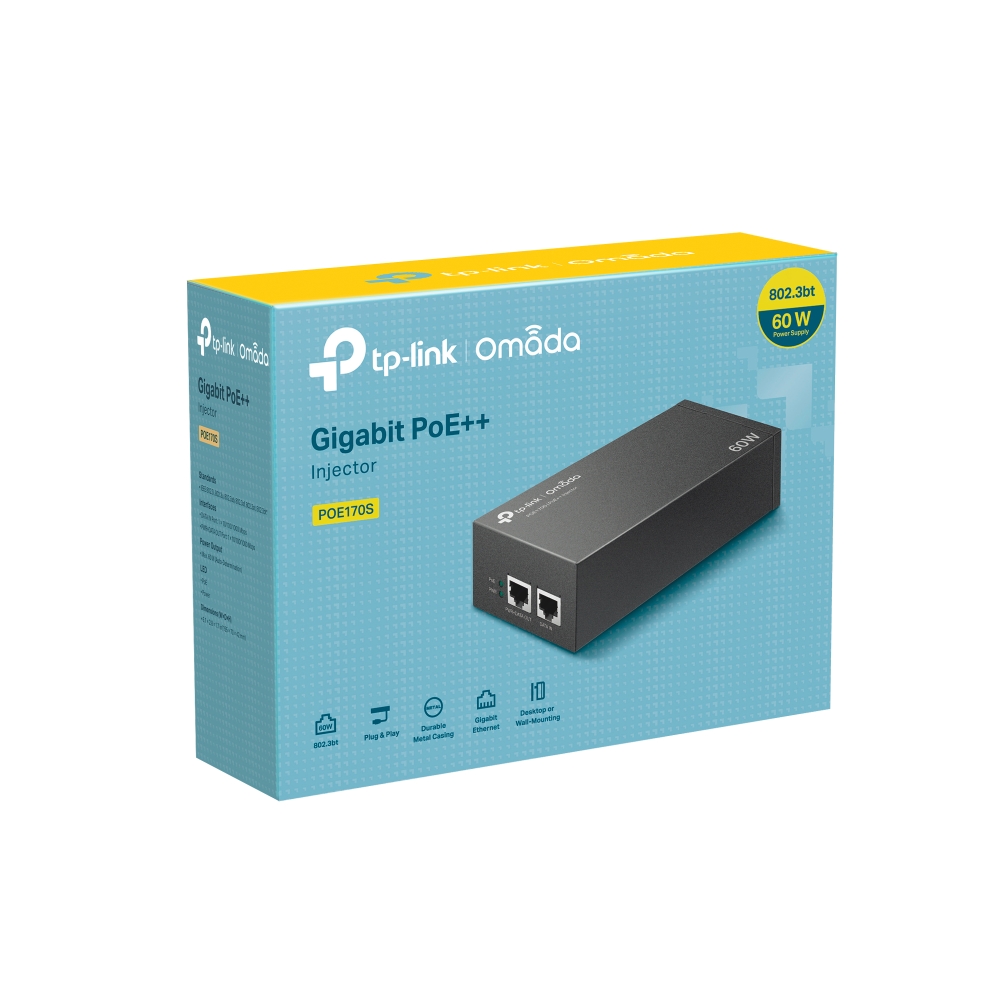

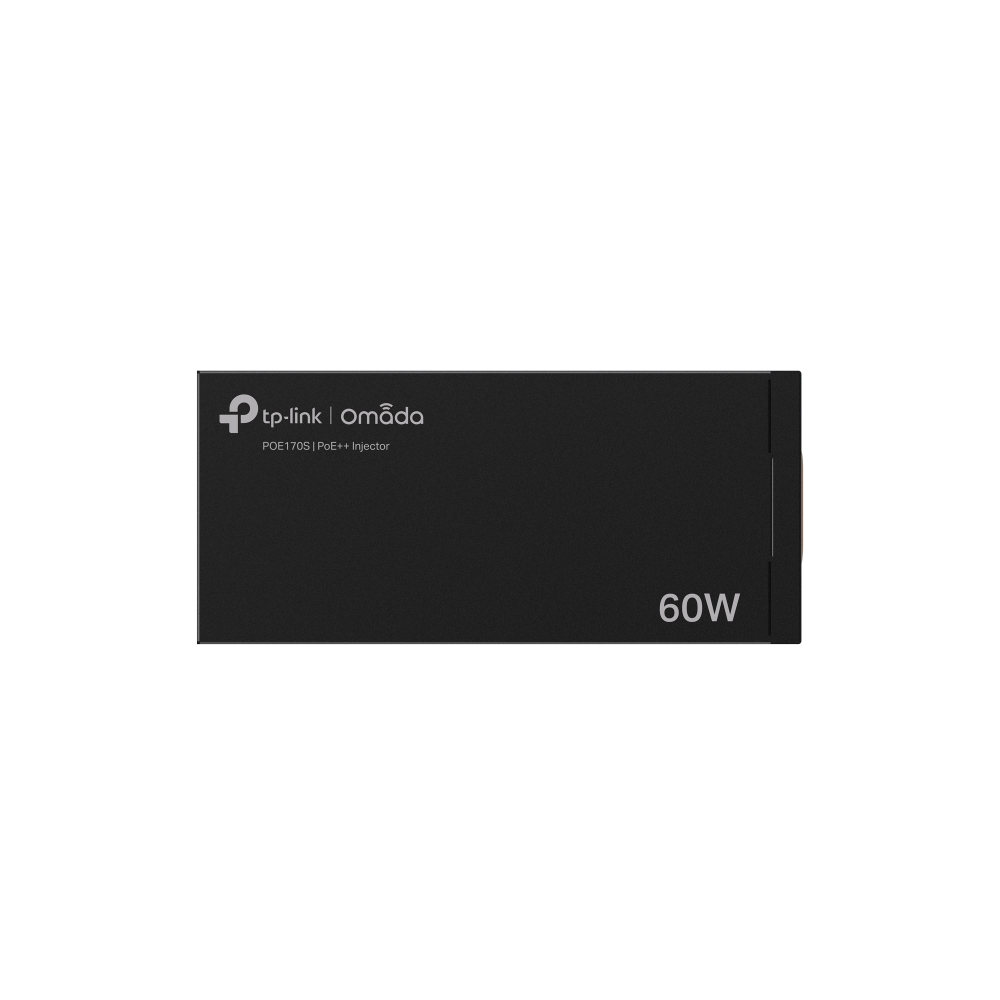

TP Link POE170S PoE++ Injector 60W

Product Ref: TL-POE170S

MPN: 73667

  • IEEE 802.3bt compliant.
  • Two (2) Gigabit ports ensure faster transmission.
  • Complies with IEEE802.3af/at/bt standards, supplies up to 60 W.
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable.
  • Automatically determines and supplies the exact power to meet the device's need.
  • Wall-mounting and desktop design accommodates most installation scenarios.
  • Plug & Play installation, requires no configuration.
  • Integrated power supply.
  • Durable metal casing.

Technical Specifications

Network

Standards and Protocols

  • IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt

General

Certification

  • FCC, CE, RoHS

Environment

  • Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Humidity: 10% to 90%RH non-condensing
  • Storage Humidity: 5% to 90%RH non-condensing

Hardware Features

Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
  • EIA/TIA-568 100 ohms STP (maximum 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
  • EIA/TIA-568 100 ohms STP (maximum 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports

  • 1 x 10/100/1000Mbps RJ45 data-in port
  • 1 x 10/100/1000Mbps RJ45 power+data-out port
  • 1 x AC socket

Power Consumption

  • Input: 100-240 V, 50/60 Hz, 1.6 A
  • Output: Auto-determine the necessary power requirements (max. 60 W)

Basic Function

  • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD
  • Auto-determine the necessary power requirements
  • Wall-mounting and desktop installation supported
  • Plug-and-Play

LED Indicator

  • ON: Supplying power normally
  • OFF: No power supply

Dimensions ( W x D x H )

  • 155 x 70 x 42 mm (6.1 x 2.8 x 1.7 in)
