TP Link POE150S PoE Injector
Product Ref: TL-POE150S
MPN: 45680
- IEEE 802.3af standard compliant.
- Delivers power up to 100 meters.
- Auto-determine the necessary power requirements.
- Plug-and-Play, requires no configuration.
- External power adapter supply.
Technical Specifications
Standards and Protocols
- IEEE 802.3
- 802.3u
- 802.3af CSMA/CD
- TCP/IP
Basic Function
- Compatible with IEEE 802.3af compliant PDs
- Delivers power up to 100 meters
- Auto-determine the necessary power requirements
- Plug-and-Play

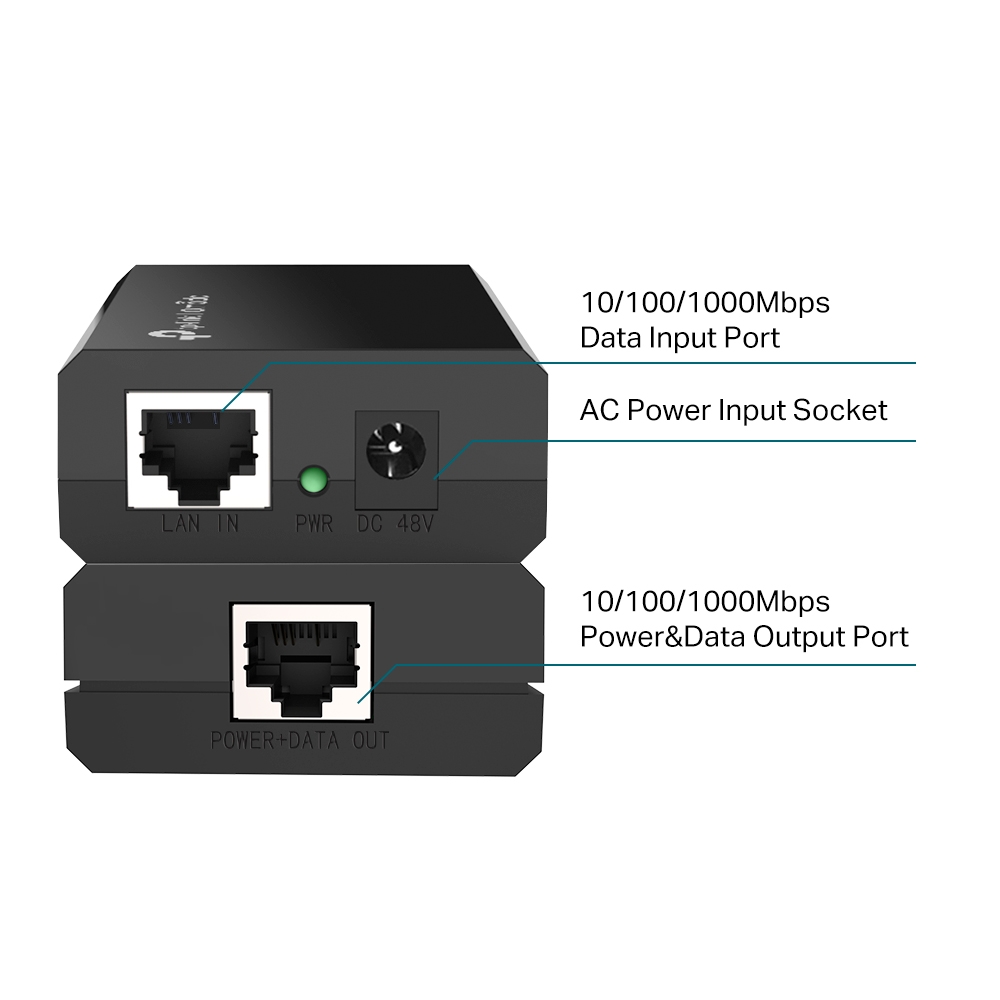

Ports
- LAN Port 2x 10/100/1000 Auto-Negotiation RJ45 port (Auto MDI/MDIX)
- Power
Safety & Emission
- FCC, CE
Dimensions (W*D*H)
- 3.2*2.0*0.9 in.(81*52*24 mm)
Environment
- Operating Temperature: 0C~40C (32F~104F)
- Storage Temperature: -40C~70C (-40F~158F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Power Output
- 15.4W (Max. 48VDC)
