TP Link FC111B-20 Fibre Single-Mode Media Converter (SC UPC Connector)

Product Ref: TL-FC111B-20

MPN: 68731

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards.
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.

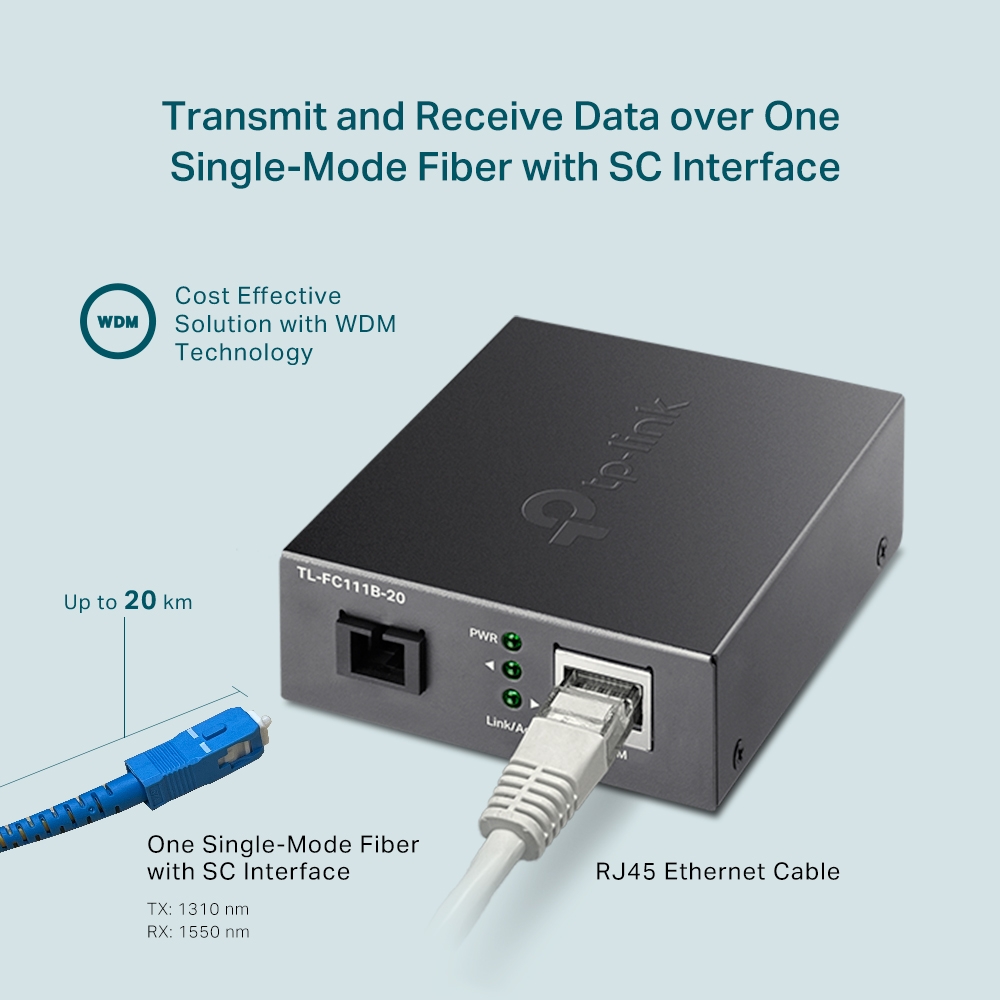

  • Adopts WDM technology, transmitting and receiving data on one single fibre.
  • Extends fibre distance up to 20km.

Technical Specifications

Network

Standards and Protocols

  • IEEE802.3, IEEE802.3i, IEEE802.3u

Environment

Operating Temperature

  • 0ºC to 50ºC (32ºF to 122ºF)

Storage Temperature

  • -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

  • 10% to 90% RH non-condensing

Storage Humidity

  • 5% to 90% RH non-condensing

Hardware Features

Network Media

  • 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (<100 m)

Power Supply

  • External Power Adapter: 5 V/0.6 A

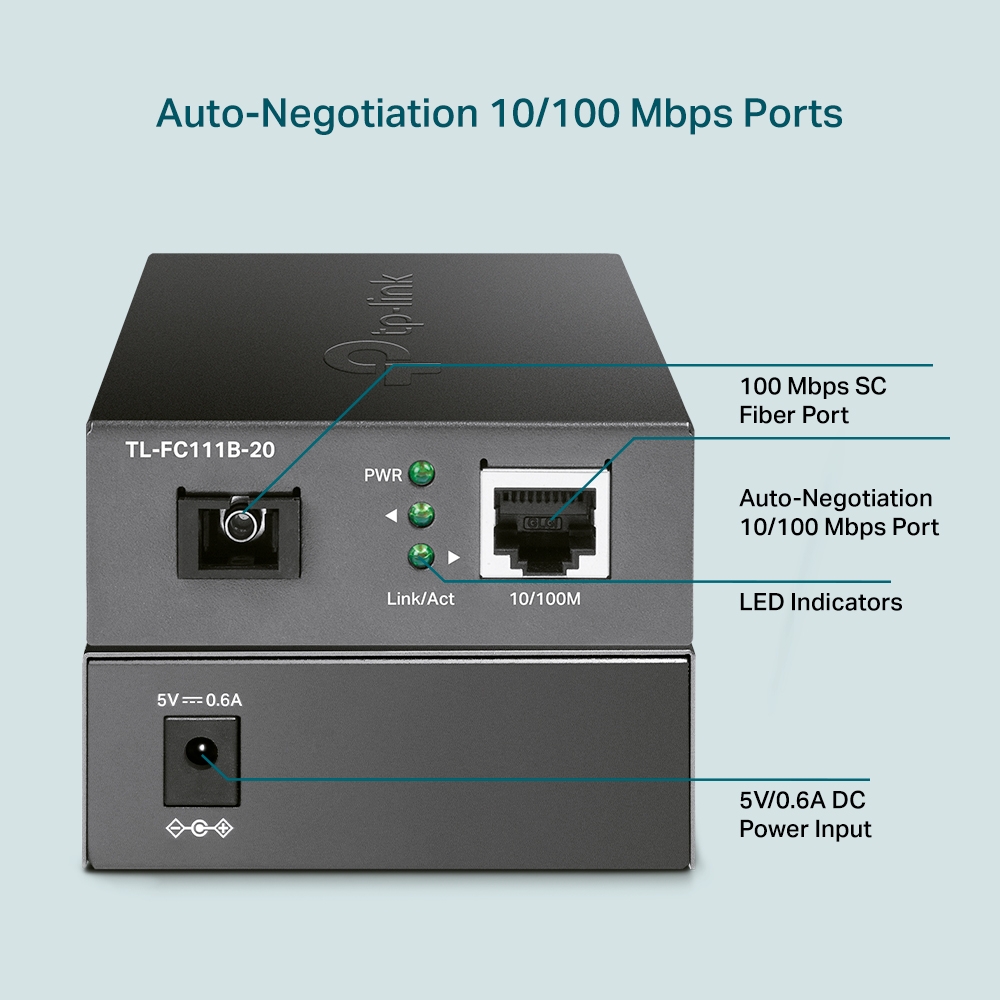

LED

  • PWR, Link/Act

Dimensions (W x D x H)

  • 94.5 x 73 x 27 mm

Wave Length

  • 1310 nm TX, 1550 nm RX

Antenna

Connector Type

  • 1 SC fibre optic, 1 RJ45 jack

Media Converter & Module

Fibre Type

  • 9/125 µm single-mode fibre (<20 km)
