TP Link EAP655-WALL Omada 2976Mbps WiFi 6 Wireless Wall Plate Access Point
Product Ref: EAP655-WALL
MPN: 76029
- Blazing-Fast AX3000 WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds - Higher Network Efficiency
Deliver data to more devices at the same time with less lag. - Complete In-Room WiFi Coverage
Guaranteed strong signals and corner-to-corner WiFi coverage. - Multiple Gigabit Ports

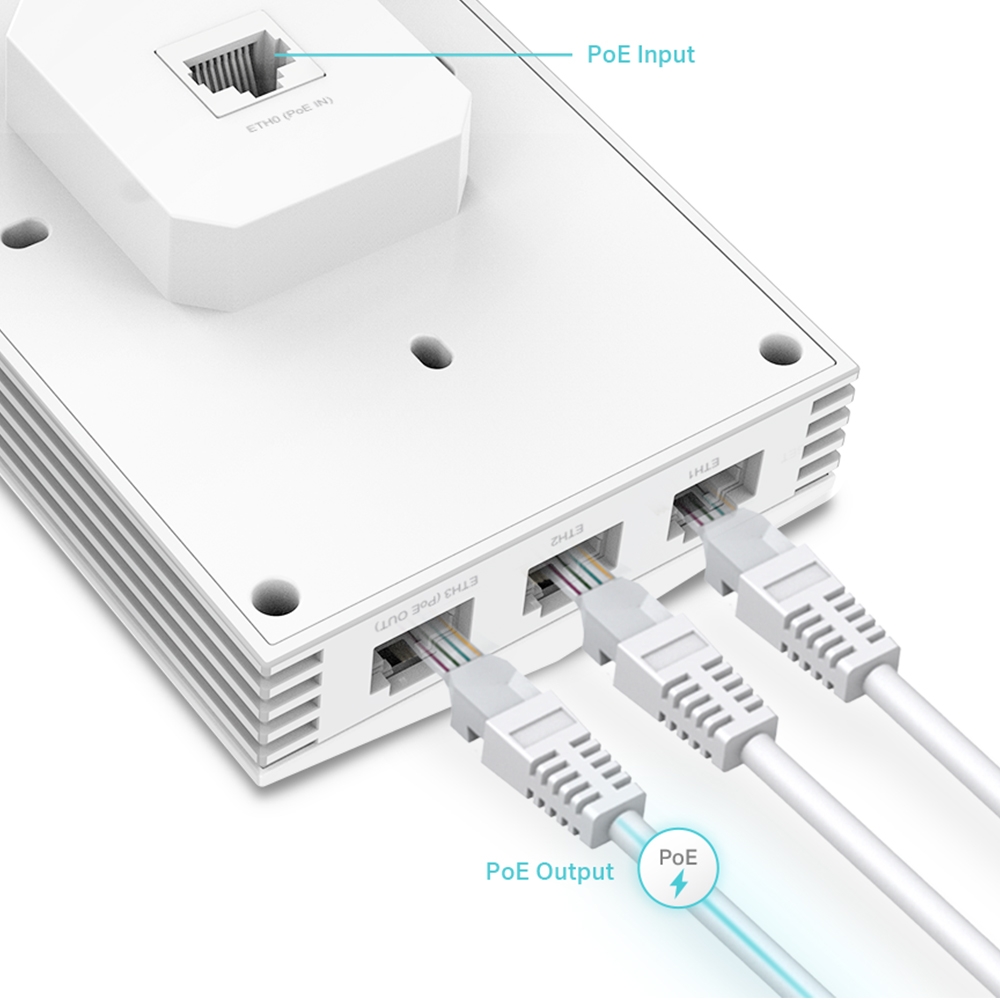

Connect multiple devices with three (3) downlink gigabit ports, one with PoE pass-through. - Centralised Cloud Management
Integrates into Omada for cloud access and remote management. - Secure Guest Network
Implement multiple authentication options (SMS/Facebook WiFi/ Voucher) packed with high-quality wireless security technologies. - Easy Installation and PoE Support
Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. - 160 MHz Channel
Double the data at peak transmission times on a single stream with HE160. - Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption. - Seamless Roaming
Uninterrupted streaming when moving between APs.
Technical Specifications
Hardware Features
Interface
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
- Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical Security Lock
- No
Button
- Reset, LED
Power Supply
- 802.3af/at PoE
Power Consumption
- EU: 12W (802.3at PoE, PoE Out off)
- US: 12.6W (802.3at PoE, PoE Out off)
Dimensions
- 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Antenna
- 2 Dual-Band Antennas
- 2.4 GHz: 2× 3 dBi
- 5 GHz: 2× 5 dBi
Wireless Features
Concurrent Clients
- 100+
Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming
- Beamforming
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- <20 dBm (2.4GHz, EIRP)
- <23 dBm (5GHz band1 & 2, EIRP)
- <26 dBm (5GHz band3, EIRP)
- FCC:
- < 21 dBm (2.4 GHz)
- < 21 dBm (5 GHz)
Management
Omada App
- Yes
Centralised Management
- Omada Hardware Controller (OC300, sold separately)
- Omada Hardware Controller (OC200,sold separately)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes. Requiring the use of OC300 or OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
System Logging Local/Remote Syslog
- Local/Remote Syslog
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
Others
Certification
- FCC, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70° (-40°F – 158°F)
- Operating Humidity: 10 – 90% RH non-condensing
- Storage Humidity: 5 – 90% RH non-condensing
Package Contents
- 1 x AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
- 1 x Installation Guide
- 1 x Mounting Kits
