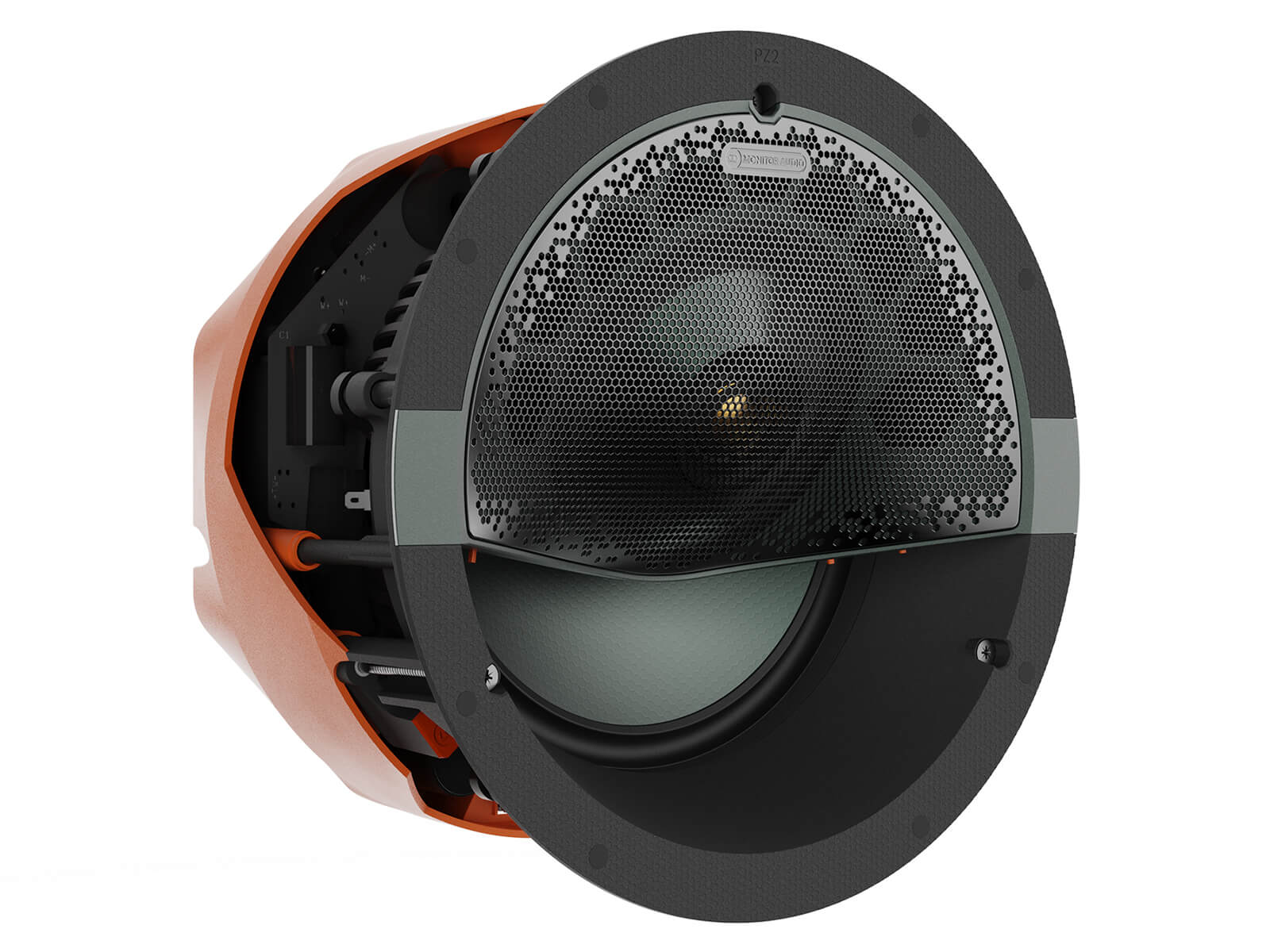

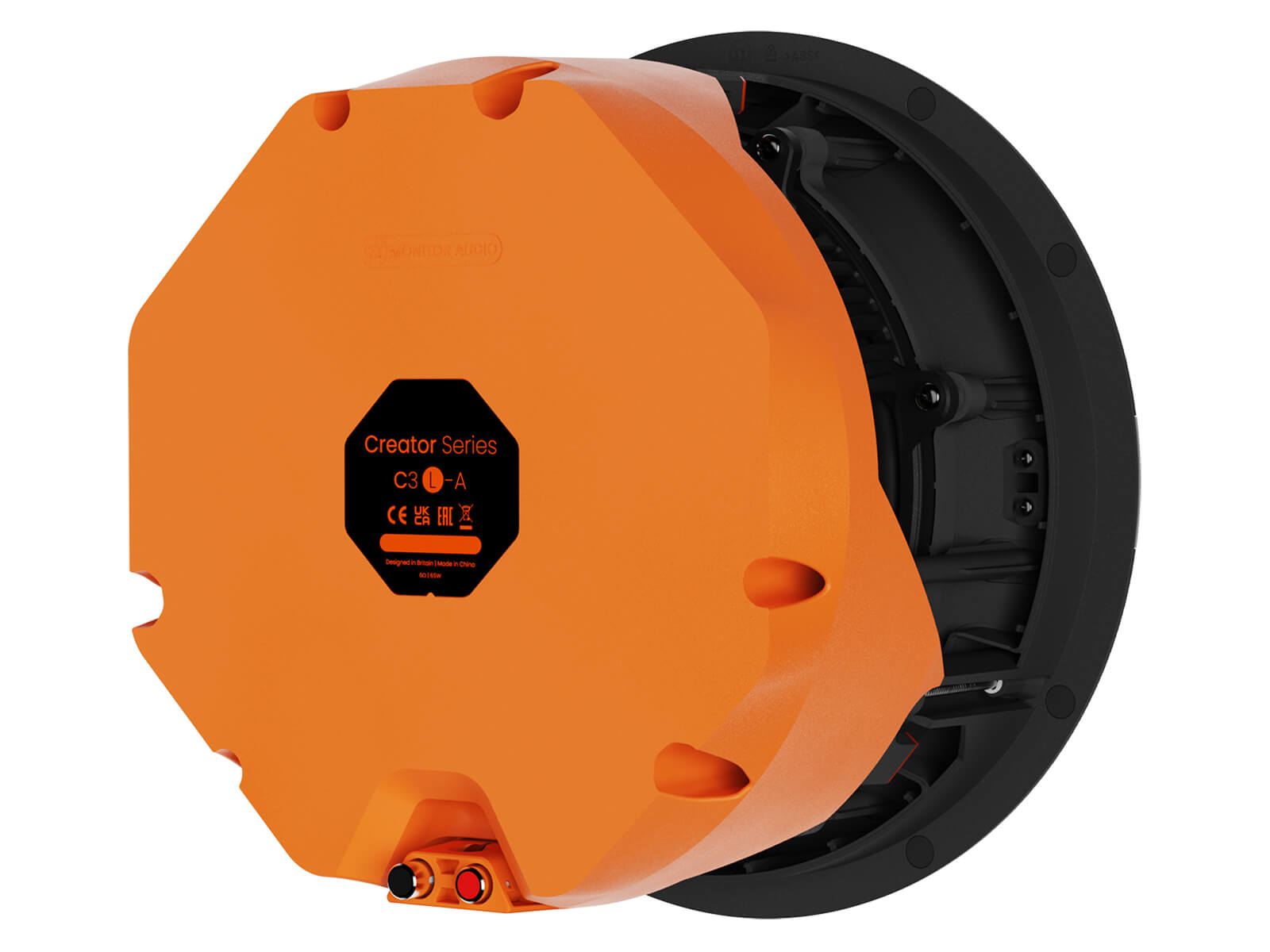

Creator Series C3L-A Fixed Angle In-Ceiling Large
Product Ref: SCSC3LA
C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.
The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.
Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Technical Specifications
System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz – 35 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.6 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed)
89 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
119 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 225 W
Drive Unit Complement
1 x 9" (229 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
1 x 1" (25 mm) IDC II tweeter
Crossover Frequency
LF/MF: 700 Hz
MF/HF: 3 kHz
Mounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
248 mm (93/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 161 mm (1015/16 x 1015/16 x 65/16")
Weight (each)
5.1 kg (11 lb 3 oz)
Pre-Construction Bracket
CL-B
Cabinet Finish
Matt black & Orange & Green
Sold As
Single Unit
Corner Switch
On/Off
HF Switch
- /0/ +
MF Switch
- /0/ +
Product Features
- Ideal for installations where high-performance acoustics are desired
- Angled IDC II projects sound into the room for pin-point accuracy
- Three-way design
- Mid-frequency ‘mid-pod array’
- 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229 mm) RDT III bass driver
- 1 x 4" (102 mm) IDC II mid-range driver
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
