DELUXX 16:9 Electric 4K Fibre
Product Ref: 1000004617

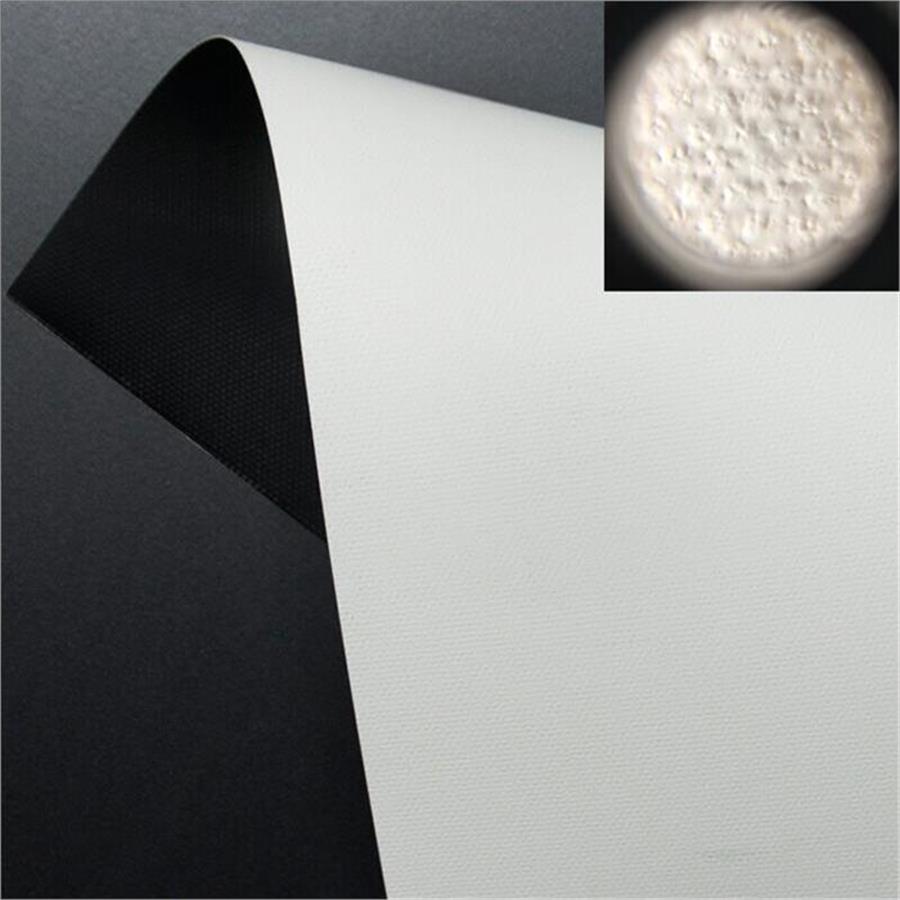

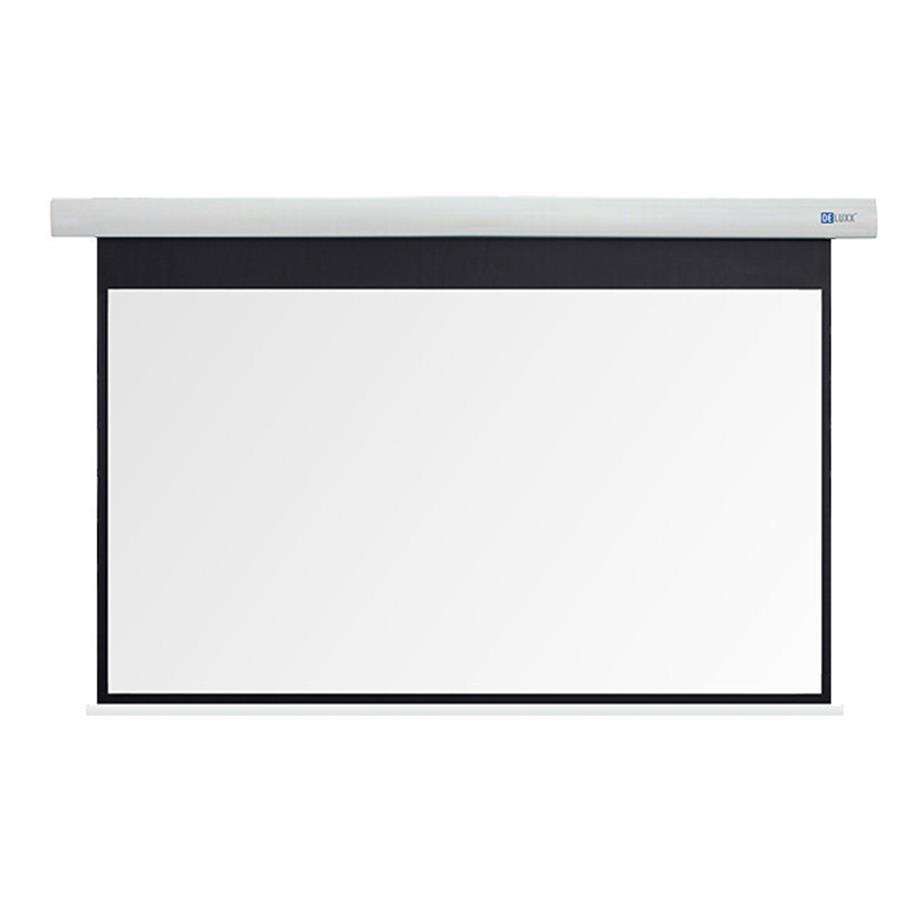

With the DELUXX 4k Fibre MWHT Electric screen, you choose ahigh-quality, electric screen with a high degree of connectivity anduser-friendliness in a shapely matt-white housing. This electric screenintegrates inconspicuously in the living room and / or home cinema. The DELUXXprojection fabric "4k Fibre" is on a fiberglass fabric basis ratherthan pure PVC or vinyl. This means its temperature stable and can be used in moretemperature-sensitive areas (please note the enclosed instructions).
A very homogeneous image reflection with wide viewing anglemakes this “Type D” screen (diffusely reflective) the ultimate choice for allprojection systems.
The gain of 1.0 is neutral without falsifying colour values.A wide viewing angle of 160°, homogeneous reflection and high colour fidelityunderline the performance.
The black back coating blocks any incoming light almost 100%and thus strengthens in this context the contrast range of the projection.
The 4k fibre fabric is characterized by good flatness. Thisis very good for a non-rope tensioning screen and allows straight-lineprojection with classic projectors (long-throw). The strong, stabilizingfiberglass backing creates an extremely long life without deforming orstretching effects, as can occur with pure PVC screens.
w). The strong, stabilizing fiberglass backing creates an extremely long life without deforming or stretching effects, as can occur with pure PVC screens.
Select Option
- DELUXX 16:9 Cinema Electric 4K Fibre (177 x 99cm) - (80")
- DELUXX 16:9 Cinema Electric 4K Fibre (332 x 186cm) - (150")
- DELUXX 16:9 Cinema Electric 4K Fibre (221 x 124cm) - (100")
- DELUXX 16:9 Cinema Electric 4K Fibre (298 x 168cm) - (135")
- DELUXX 16:9 Cinema Electric 4K Fibre (354 x 199cm) - (160")
- DELUXX 16:9 Cinema Electric 4K Fibre (203 x 114cm) - (90")
- DELUXX 16:9 Cinema Electric 4K Fibre (243 x 136cm) - (110")
- DELUXX 16:9 Cinema Electric 4K Fibre (265 x 149cm) - (120")
Technical Specifications
Screen Fabric:
- Visible, projection area: 177 x 99 cm, (80 ")
- 1.0 Gain 4K Fibre Cloth also suitable for 4K projection
- Wide viewing angle of over 150 ° and suitable for all projection systems (DLP, LCD, LCOS etc. in the long-throw)
- Wide 160 degree viewing angle
- Black masking 5cm left, right and bottom,
- 66.8cm black drop at the top
- Dimensionally stable & rigid worm shaft with large diameter for optimum flatness and clearness
Assembly and design:
- Matte white aluminium screen housing in a subtle design
- Intelligent, inconspicuous & flexible mounting kit for wall or ceiling installation incl. drilling template
- Easy installation and plug & play connection Power cable via cold device coupling
- Almost 100% light blocking through black back coating
- Very quiet DELUXX quality tubular motor: durable and smooth running
- Case dimensions: 206 x 10.3 x 9.5 cm (WxHxD), 13.5 kg
Certifications:
- ROHS, REACH, CE - 2014/53 / EU
Control of the screen:
- Radio receiver integrated + separate infrared receiver eye with each associated remote control
- Side buttons on the housing with 3 functions: up, stop and down
- Trigger: 5V-20V (AC / DC)
- RJ12 (RS232 / RS485 protocol) connection for RTI, Crestron, Control4 etc.
- Potential-free contacts via RJ12, relay controllable
Delivery:
- DELUXX Electric Screen with "DELUXX 4k Fibre Matt White (MWHT)" fabric
- Fabric: Type D, matte white, luminance factor acc. DIN19045 approx. 1.0
- Power cable in white
- RF remote control
- IR remote control
- 5m trigger cable
- IR reception eye
- Wall / ceiling mounting bracket
- Drilling template for perfect installation
- Instructions & screen handling hints
- Required: batteries 3x CR2032
