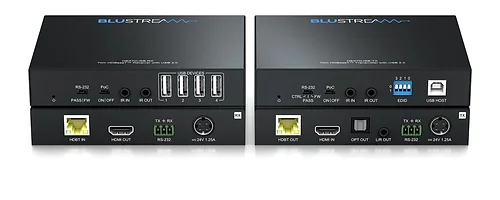

Blustream HDBaseT USB Extender Set - 70m (4K 60Hz 4:2:0 up to 40m)

Product Ref: HEX70USB-KIT

The HEX70USB-KIT 4K HDBaseT USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI to lengths of 70m (4K 60Hz 4:2:0 to 40m), USB 2.0 extension, bi-directional IR and RS-232, HDMI audio breakout, bi-directional PoC, and advanced EDID management. HDCP2.2 compliant.

Technical Specifications

HEX70USB-TX

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Port: 1 x USB Type-B (Host)

  • IR Input ports: 1 x 3.5mm stereo jack

  • IR Output ports: 1 x 3.5mm mono jack

HEX70USB-RX

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female

  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio

  • RS-232 serial port: 1 x 3-pin Phoenix connector

  • USB/KVM Port: 4 x USB Type-A (Peripherals)

  • IR Input ports: 1 x 3.5mm stereo jack

  • IR Output ports: 1 x 3.5mm mono jack



  • Casing Dimensions (W x D x H ): 135mm x 105mm x 25mm (TX/RX)

  • Shipping Weight (Kit): 0.8kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

  • Power Supply: 24V/1.25A DC, 4-pin DIN connector

Product Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps

  • USB Type-A connections support 5V 500mA output per port

  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions

  • Bi-directional IR pass-through

  • Bi-directional RS-232 pass-through

  • Supplied with Blustream IR receiver and emitter

  • Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end

  • HDCP 2.2 compliant with advanced EDID management

  • HDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently
