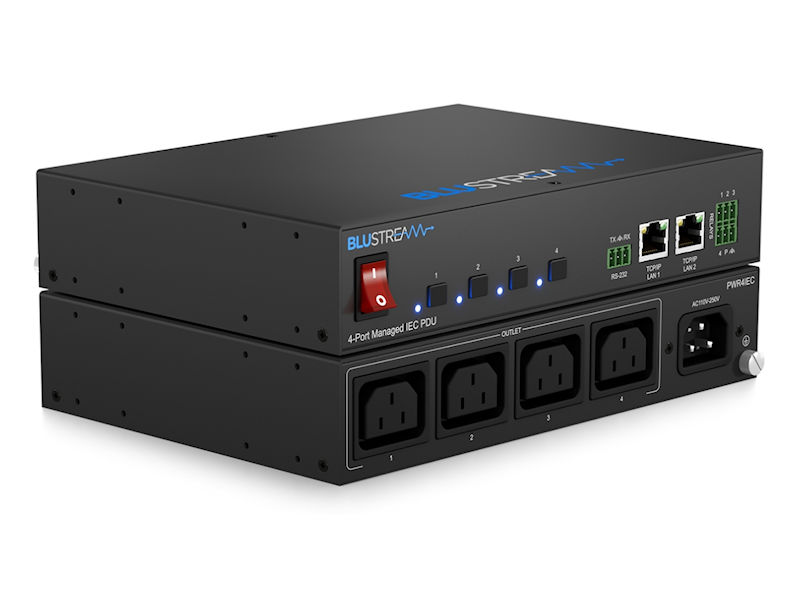

Blustream 4-Port Managed IEC PDU
Product Ref: PWR4IEC
The PWR4IEC is an outlet-level metered and switched smart PDU. The unit features 1 x IEC C14 inlet for power (110-250V at up to 10A) and 4 x IEC C13 output outlets for supply to high-power consumption devices.
The PDU supports TCP/IP and RS-232 control, with a redundant TCP/IP port as a back-up. Front panel buttons for manual switching of power to individual outlets, and a single mains switch for overall system power.
The PWR4IEC supports advanced power management features including scheduling, sequencing and power consumption. The relay connections (x5) can also be used for automatic control of power to both inlet and individual outlet stages when triggered from 3rd party control platforms or BMS systems. Remote access and monitoring can be set-up and achieved via the web-GUI.
Technical Specifications
- Power Input Ports: 1 x C14 IEC 10A
- Power Output Ports: 4 x C10 IEC 10A (total)
- Relay Control: 2 x 3-Pin Phoenix connector
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- TCP/IP Control: 2 x RJ45, female
- Rack-Mountable: 1U rack height, rack ears included
- Casing Dimensions (W x D x H): 218mm x 132mm x 44mm
- Dimensions Including Connections (W x D x H): 218mm x 142mm x 44mm
- Shipping Weight: 1.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Input: 110-250V AC
Product Features

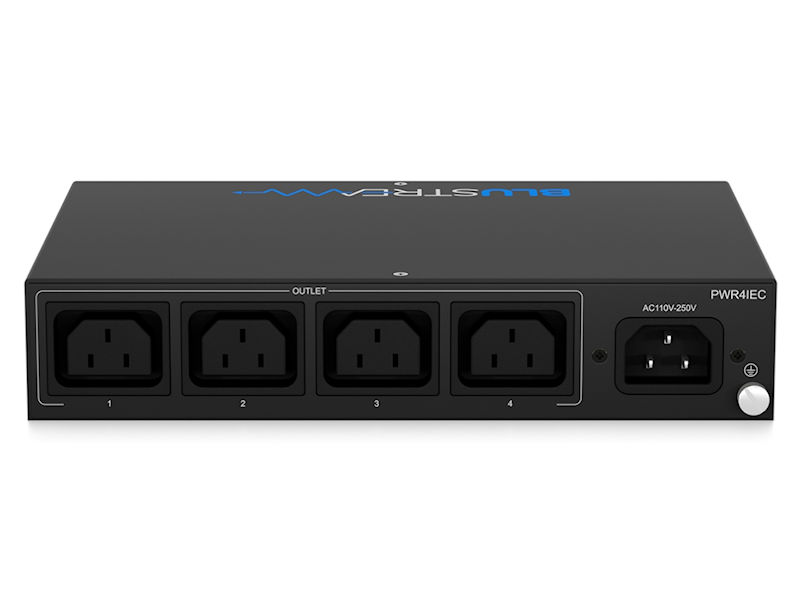

- Single C14 IEC inlet with 4x C10 IEC outlets
- Products supports 110-250V AC power input (up to 10A)
- Monitoring and metering of: voltage, current, power, and energy consumption
- Overload protection and interference filtering
- Advanced power management features including scheduling and power on/off sequencing
- Control via TCP/IP, RS-232, front panel buttons, or relays
- Dual TCP/IP network ports providing uninterrupted network service / access with SSL connectivity
- Relays for automated switching of inlet, and individual power outlets
- Provides remote monitoring with password authentication through web-GUI
- Support multiple network and IoT protocols
- 1U design for 19" rack mount integration - rack mounting kit included
