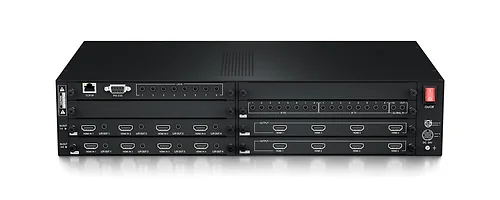

Blustream Custom Pro 8x8 HDMI2.0 Matrix-supports 4K HDR, IP / RS-232

Product Ref: PRO88HDMI-V2

Custom Pro 8x8 HDMI Matrix delivers 4K 18Gbps HDR performance for the custom installation market. The PRO88HDMI-V2 is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix featuring Bi-directional IR and a web browser interface module for control and configuration of the matrix.

Technical Specifications

  • Video Input Connectors: 8 x HDMI Type A, 19-pin female

  • Video Output Connectors: 8 x HDMI Type A, 19-pin, female

  • Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)

  • TCP/IP Control: RJ45, female

  • Ethernet / Network: RJ45, female

  • RS-232 Serial Port: DB-9, female

  • Rack-Mountable: 2U rack height, rack ears included

  • Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet

  • Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet

  • Shipping Weight: 5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 24V/8A DC

Product Features

  • Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs

  • Supports 18 Gbps 4K UHD video including HDR, HDR10+ and Dolby Vision

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Control via front panel, IR, RS-232 & TCP/IP

  • 3rd Party drivers available for major control brands

  • Advanced EDID management

  • HDCP 2.2 compliant
