WiiM PRO *BLACK*

Technical Specifications

• SUPPORTED STREAMING SERVICES

Spotify Connect, Tidal, Qobuz, Amazon Music, Deezer and SoundCloud Supported

• SMART HOME TECHNOLOGIES

Works with Chromecast Audio, Google, Siri and Alexa

• INTERNET RADIO SUPPORT

TuneIn, iHeartRadio, vTuner and Radio Paradise

• APPLE AIRPLAY SUPPORT

AirPlay 2

• MQA COMPATIBILITY

Partial MQA Support

• ROON SUPPORT

Roon Ready

• NETWORK CONNECTIVITY

Wi-Fi & Ethernet

• AUDIO CODECS SUPPORTED

MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG Supported

• CPU SPECIFICATIONS

Quadcore A53

• MEMORY

512MB Flash + DRAM

• MULTI-ROOM STREAMING

Multiple

• TONE CONTROL

Adaptive EQ and Graphic Equaliser built-in

• SIGNAL TO NOISE RATIO

(Line In) 102 dB

• OUTPUT LEVEL (UNBALANCED):

Max. 2 V

• THD +N

(Line In) 0.009 %

• RCA LINE INPUT(S)

1

• BLUETOOTH VERSION

Bluetooth 5.1 Receiver and Transmitter

• OPTICAL INPUT(S)

1 (24-bit, 192kHz)

• DAC CHIP

TI PCM5121

• FILE LIMIT SUPPORT (PCM)

24-bit, 192kHz

• DIGITAL OUTPUT(S)

Coaxial, Optical

• OUTPUT OPTIONS

Switch variable output to fixed level

• VARIABLE ANALOGUE OUTPUT(S)

1 x RCA Pair

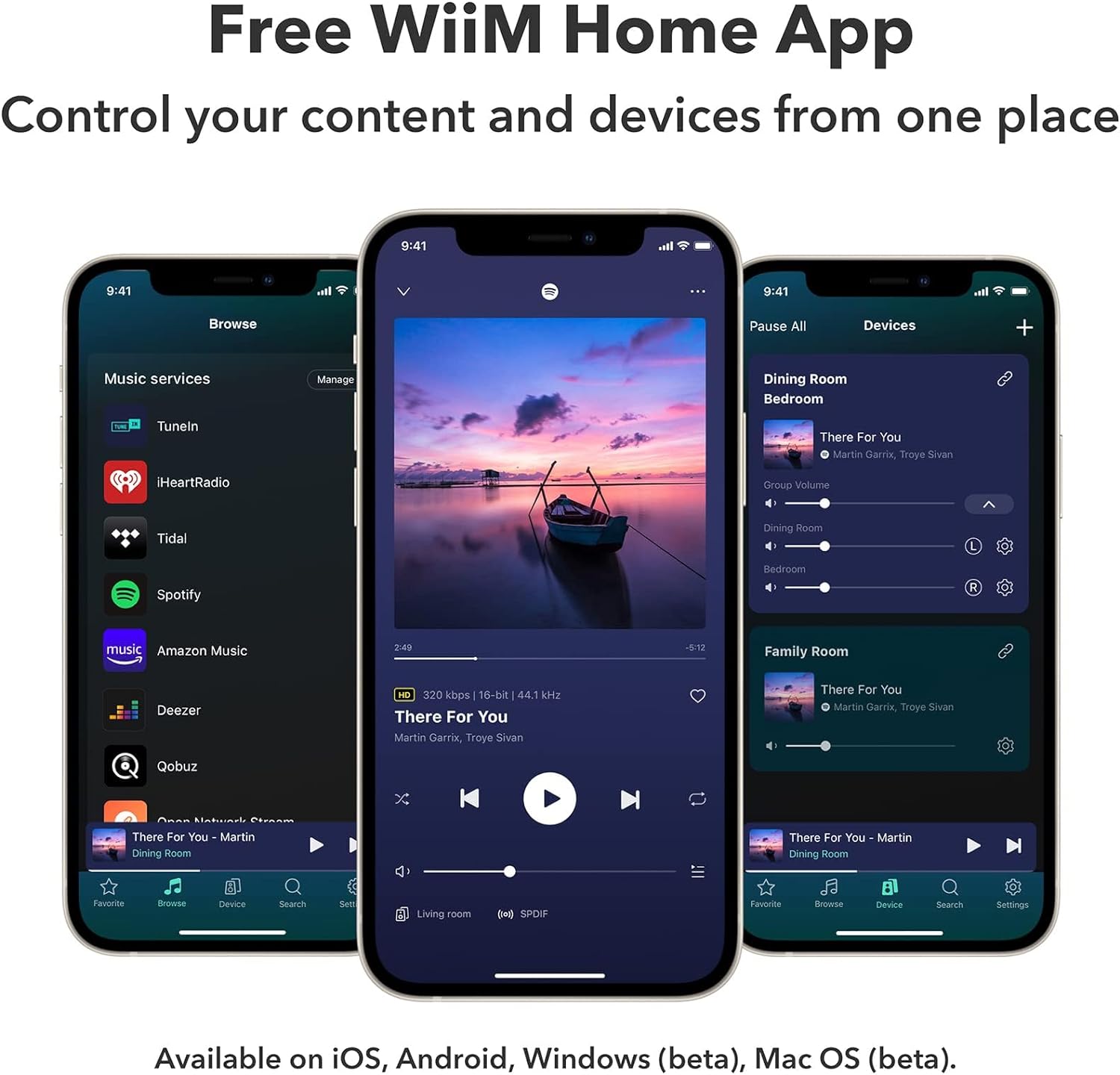

• APP CONTROL

WiiM Home

• EXTERNAL POWER SUPPLY RATING

5V-1.5A DC

• DIMENSIONS (W X H X D)

140 x 42 x 140 mm

• WEIGHT

0.33 kg

Product Features

Experience the Power of Seamless Streaming with WiiM Pro

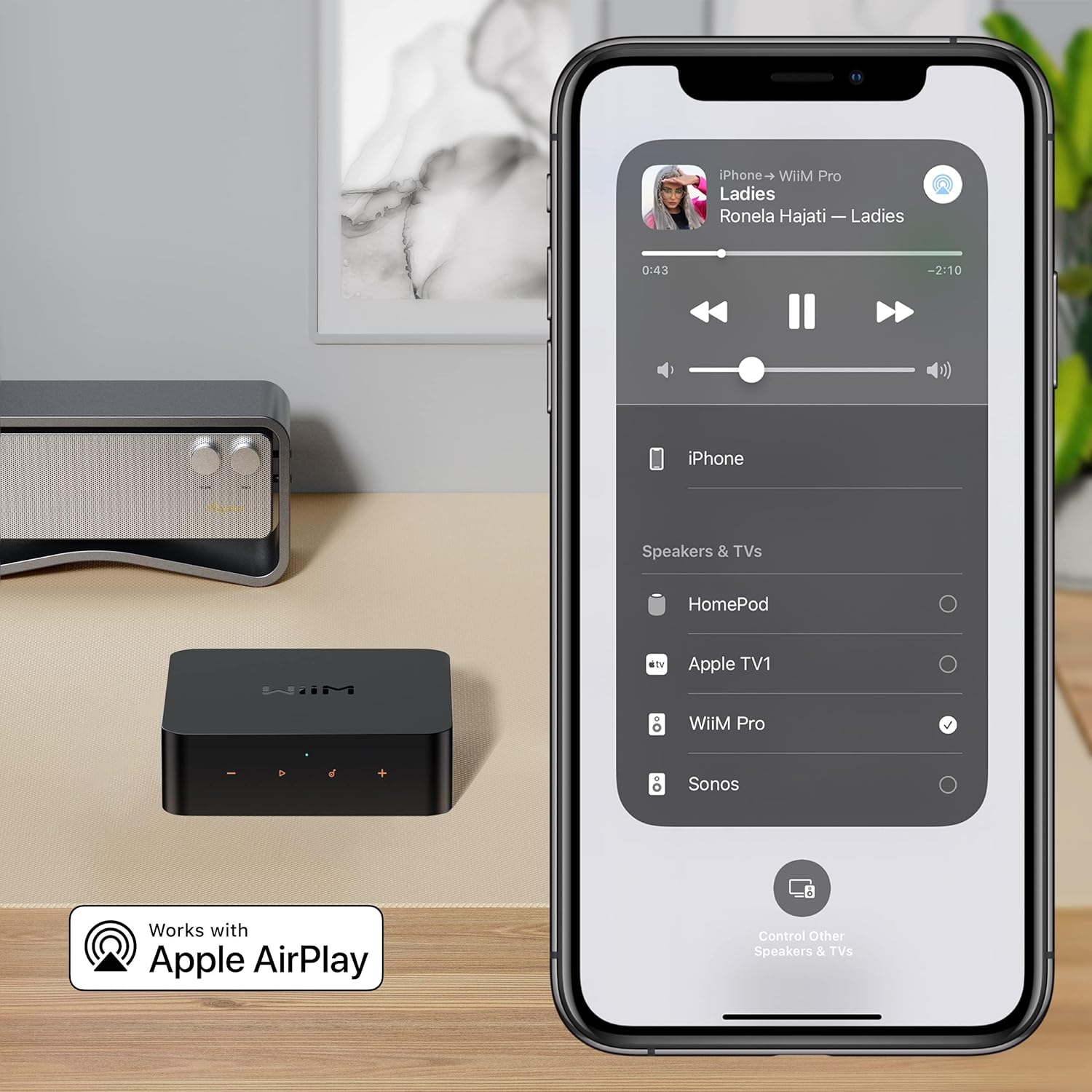

Your stereo system is about to get a major upgrade. WiiM Pro can transform your stereo into AirPlay 2 enabled speakers, streaming your favorite music from iOS and Mac devices or TV audio from Apple TV. Connect your Apple devices to your preferred audio devices simply and cost-effectively. Also, enjoy Chromecast streaming music, TV audio, podcasts, and more from hundreds of Chromecast-enabled apps to multiple audio devices simultaneously.

Experience High-Resolution, Gapless Playback

WiiM Pro allows you to wirelessly stream up to 24-bit/192 kHz music on both digital and analog outputs. Enjoy your music without interruptions and experience bit-perfect output via its digital optical or Coax output. While not all music services offer 24-bit/192 kHz content, Amazon Music Ultra HD, Qobuz, and your own music library can support this high-res output. TIDAL Connect users can enjoy TIDAL Master with MQA core decoder up to 24-bit/96kHz.

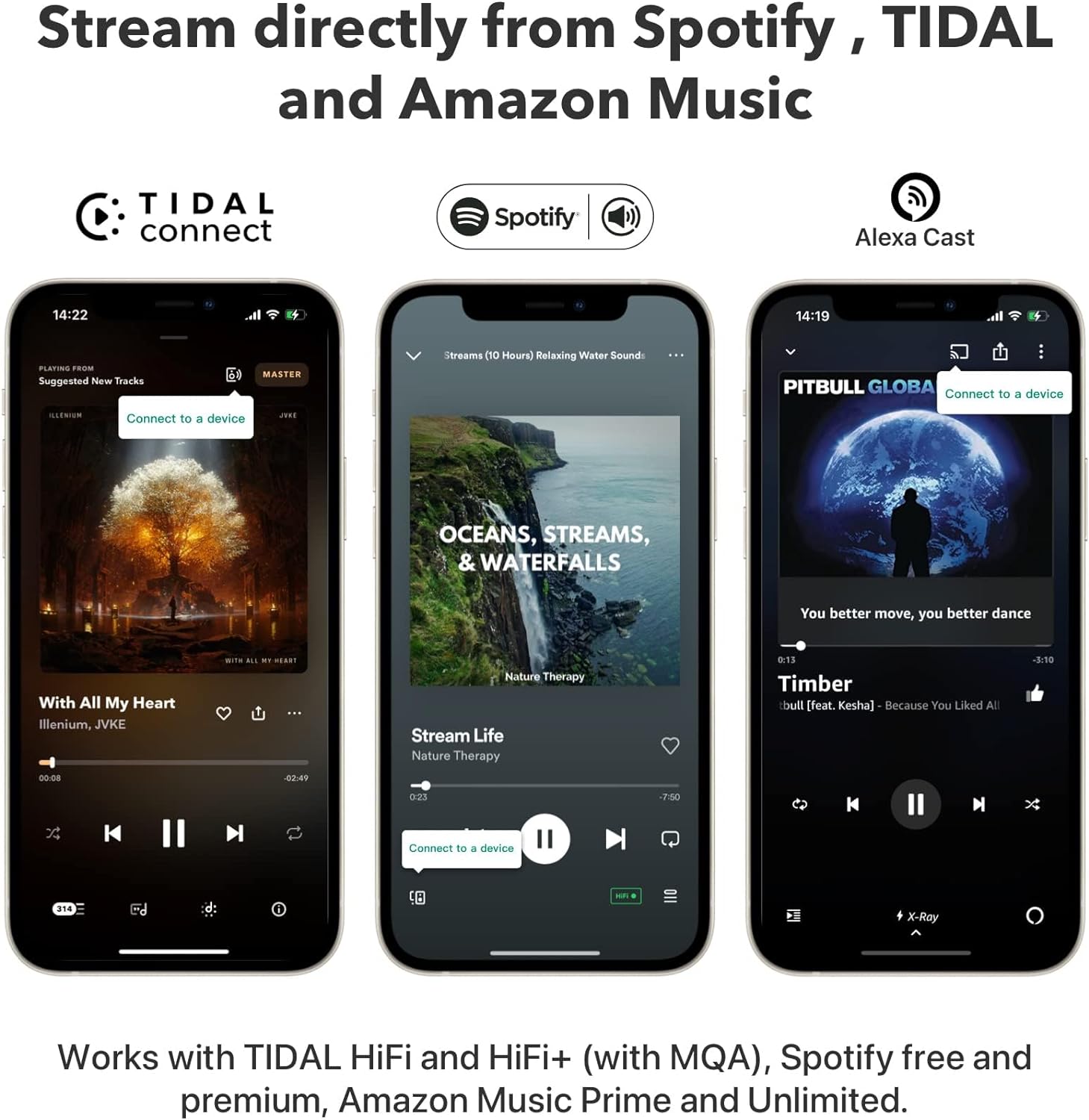

Stream Directly from Your Favorite Music Apps

Stream music directly from Spotify, TIDAL, or Amazon Music app using Spotify Connect, TIDAL Connect, or Alexa. This offers superior audio quality and a longer working range compared to traditional Bluetooth or AirPlay 2 receivers, freeing up your mobile device for other tasks. This feature is compatible with Spotify Free/Premium users, TIDAL's HiFi and Master quality (with MQA), and Amazon Prime Music.

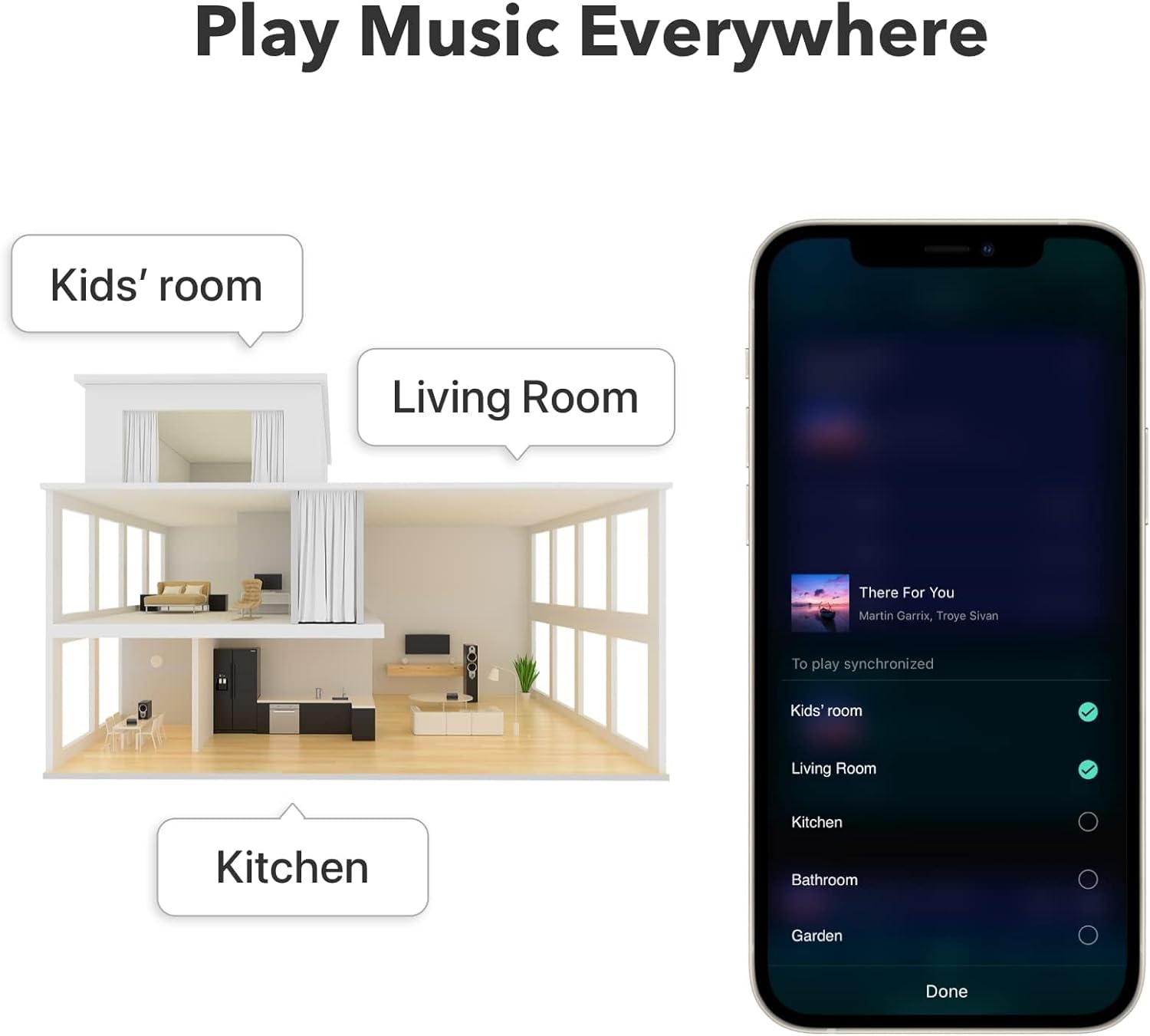

Seamless Multiroom Streaming

With WiiM Pro, enjoy the convenience of streaming music across your entire home using a variety of smart speakers, including AirPlay 2, Chromecast, Amazon Alexa, or our proprietary multiroom function. Create groups with other AirPlay 2, Google Home, or Alexa devices like Echo and HomePod, or even link multiple WiiM devices for synchronized playback on multiple audio devices simultaneously. You can also transmit SPDIF-in or Line-In audio to AirPlay-enabled devices.

Upgrade Your Listening Experience

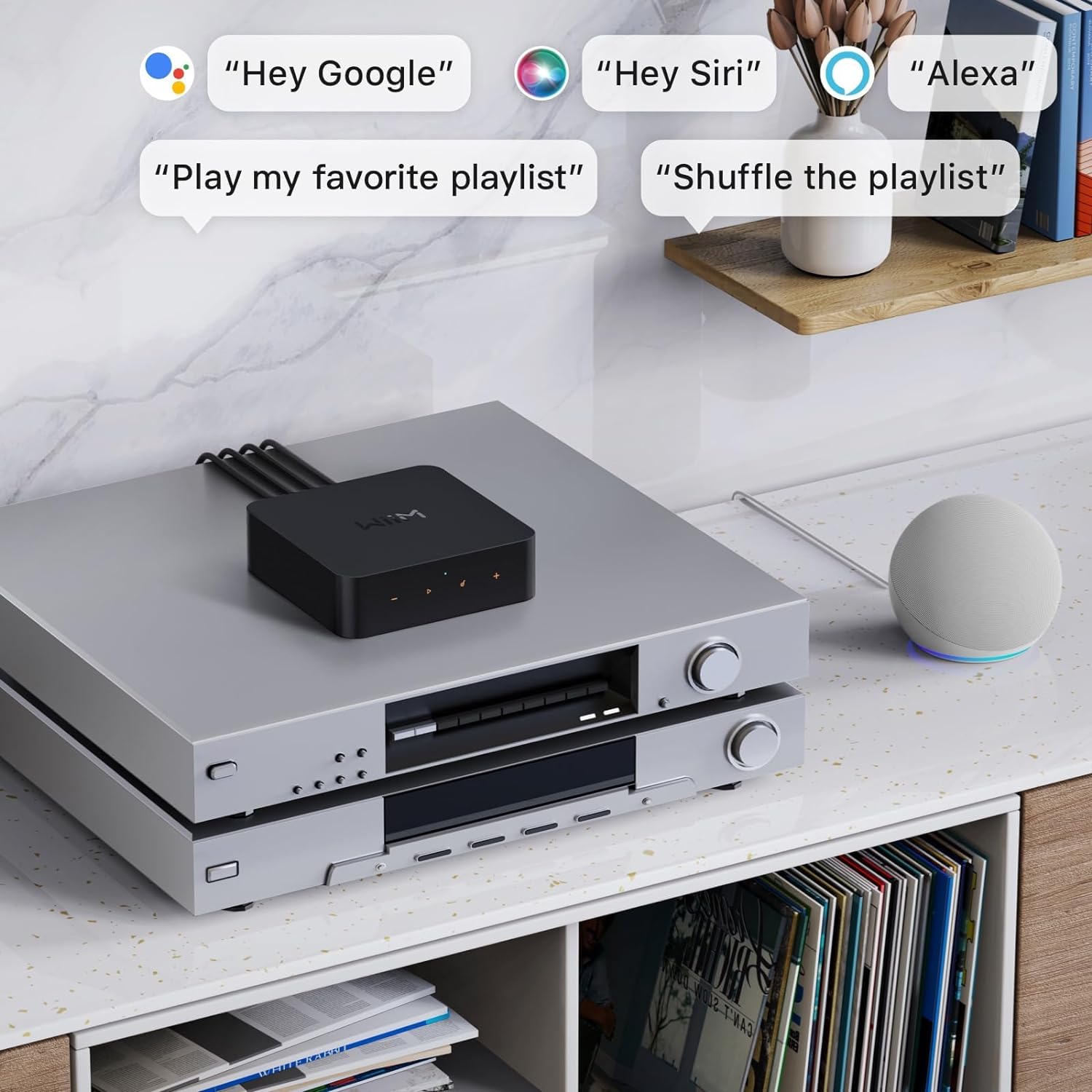

Use the remote with your voice to search and control via Alexa (No extra Alexa built-in device needed). To play or pause, skip song, control volume, mute audio, and launch your preset favorite song, radio station, podcast with one tap. The four preset buttons can also be customized for other device control actions.
