All Weather In-Ceiling AWC265-T2
Product Ref: SAWC265T2

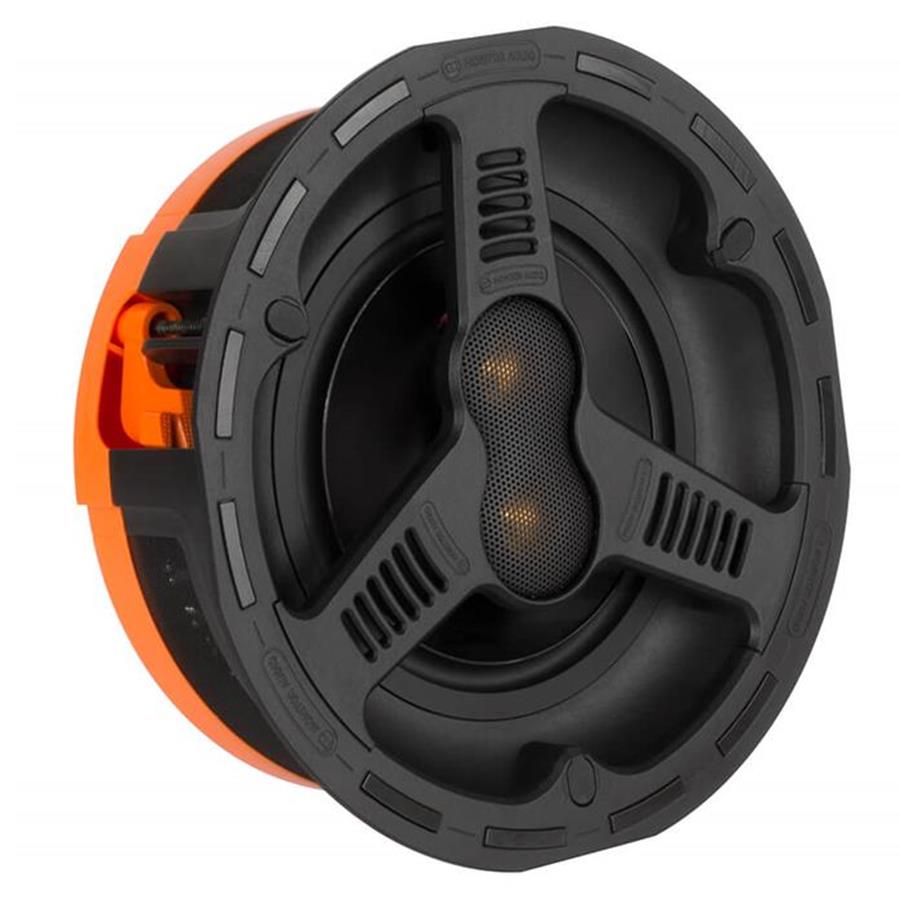

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on the AWC265-T2 to deliver high performance stereo sound from a single unit where space is limited.
Technical Specifications
Frequency Response
60 Hz — 30 kHz
Sensitivity (1W@1M)
88 dB (both channels driven)
Nominal Impedance
8 + 8 ohms
Maximum SPL
105.8 dBA
Power Handling (RMS)
60 W
Recommended Amplifier Requirements
20 — 60 W
Drivers
6.5" C-CAM cone bass driver
2 x 1" C-CAM Gold Dome tweeters (fixed angle)
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Connection
2 x (2 pairs) Gold plated push style terminal
Overall Diameter (Including Grille)
251.71 mm (915/16")
Overall Depth (Including Grille)
93.5 mm (31/2")
Cut-Out Hole Diameter
211 mm (81/4")
Mounting Depth
88.5 mm (31/2")
Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.04 kg (4 lb 8 oz)
Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)
Back Box
Sold As
Single Unit
Product Features
- High Performance C-CAM bass and high frequency drivers

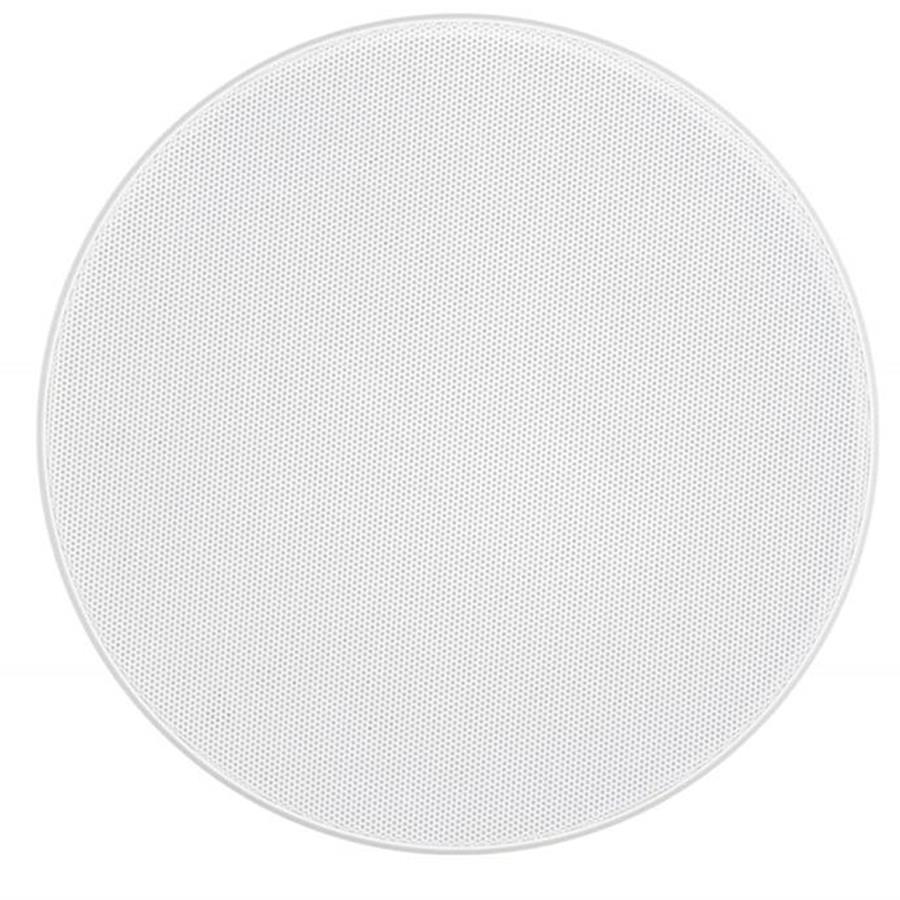

- Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
- Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
- IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
- Patented Tri-Grip Dog-Leg fixings for easy, long-lasting installation
- EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
- Gold plated push terminals with silicon cover
- Stainless fixing screws with Silicone covers
- Tweeter level attenuation (internal) – set prior to installation
- Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
