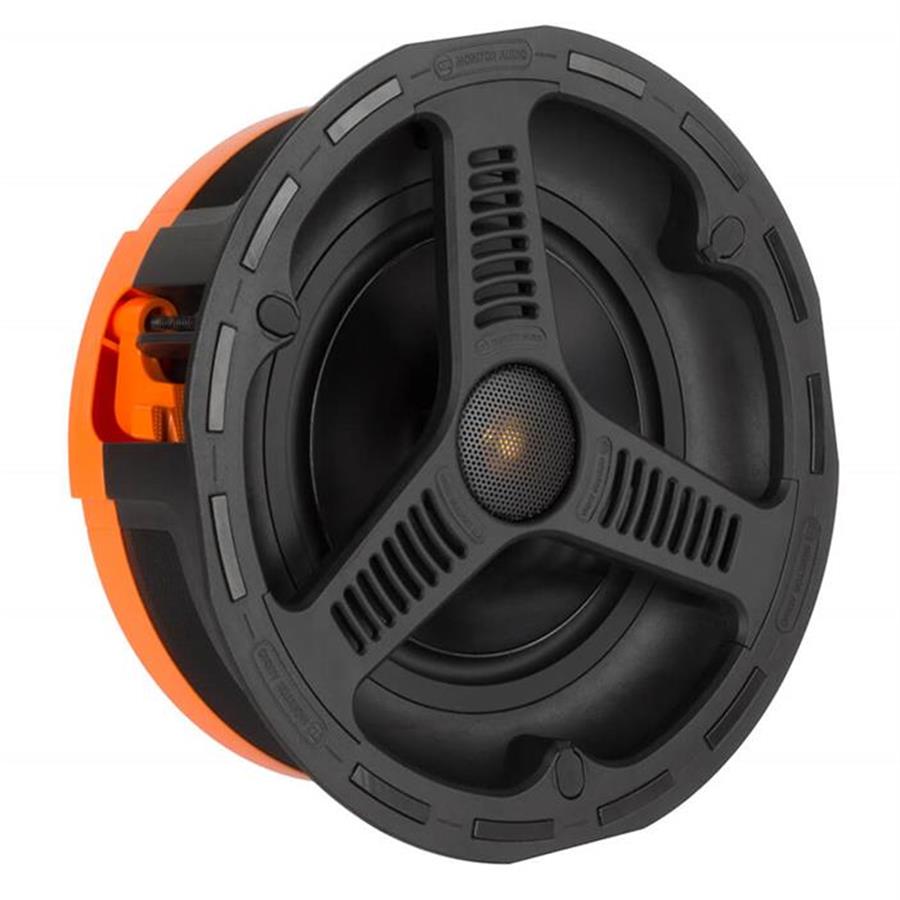

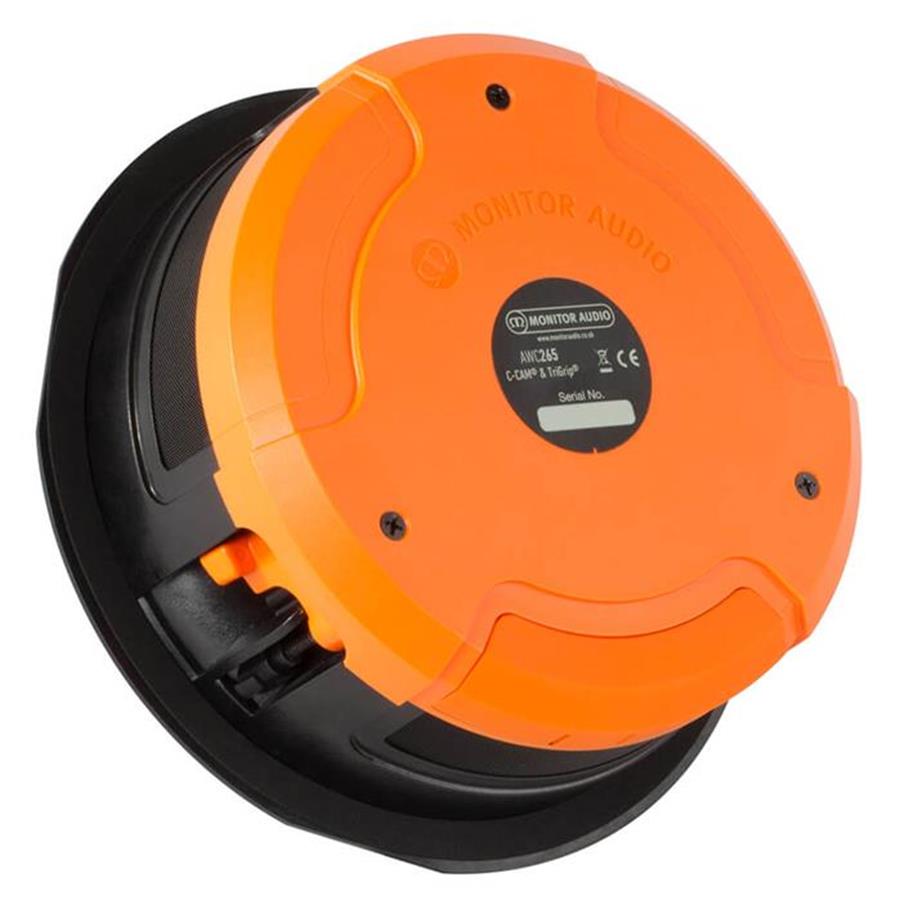

All Weather In-Ceiling AWC265

Technical Specifications

Frequency Response

60 Hz — 30 kHz

Sensitivity (1W@1M)

88 dB

Nominal Impedance

8 ohms

Maximum SPL

105.8 dBA

Power Handling (RMS)

60 W

Recommended Amplifier Requirements

20 — 60 W

Drivers

6.5" C-CAM cone bass driver
1" C-CAM Gold Dome tweeter (fixed angle)

Controls

HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation

Adjustment Controls

2 x (1 pair) Gold plated push style terminal

Overall Diameter (Including Grille)

251.71 mm (915/16")

Overall Depth (Including Grille)

93.5 mm (31/2")

Cut-Out Hole Diameter

211 mm (81/4")

Mounting Depth

88.5 mm (31/2")

Optional Square Grille - Outer Dimensions

249 x 249 mm (9 3/16")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

Grille

SS430 Stainless Steel

Magnets

Samarium Cobalt

Operating Temperature Range

-34° to 79° C -29° to 174° F

Weight

2.04 kg (4 lb 8 oz)

Pre-Construction Bracket

CB6 Pre-Construction Bracket (Purple)

Back Box

CCBOX-R | CMBOX-R

Sold As

Single Unit

Product Features

• Quick and easy installation
• High Performance C-CAM bass and high frequency drivers

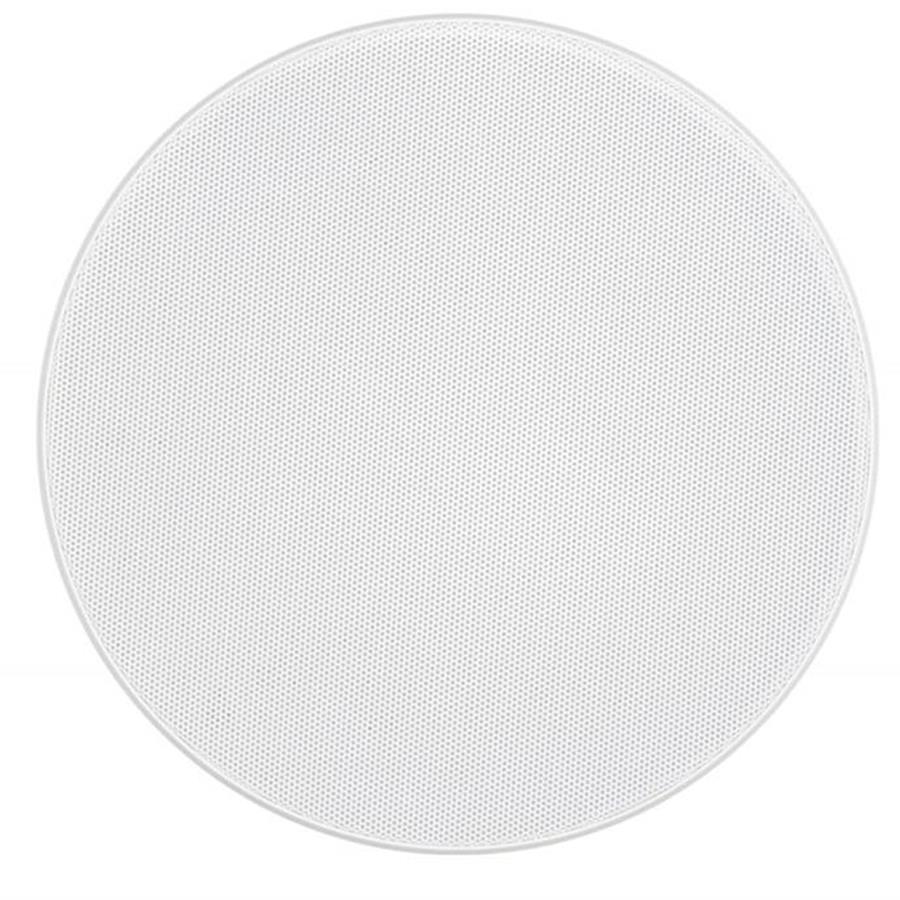

• Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
• Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
• IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
• Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
• EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
• Gold plated push terminals with silicon cover
• Stainless fixing screws with Silicone covers
• Tweeter level attenuation (internal) – set prior to installation
• Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
