Creator Series W3M In-Wall Medium
Product Ref: SCSW3M

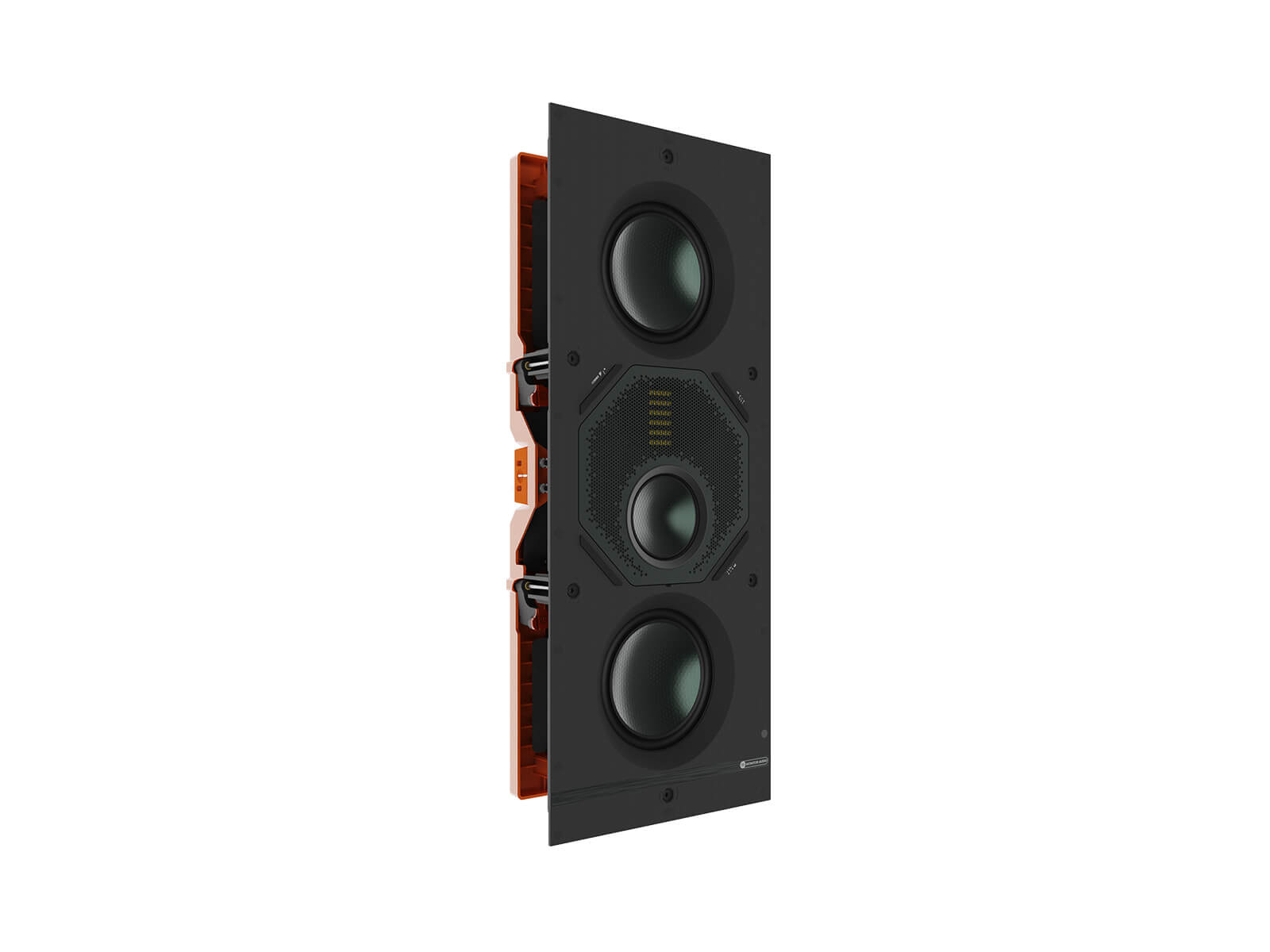

This high-performance, large Tier 3 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model based on the Platinum Series 3G, and features the very latest acoustic technologies from Monitor Audio. This includes an MPD II high-frequency transducer, developed for the THX Certified Ultra Cinergy range. The precision specification of the Micro Pleated Diaphragm technology is designed to produce accurate, lifelike sound without any distortion. This is coupled with a C-CAM midrange driver and two RDT III bass drivers.
This combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. This really is the last word in installed performance.

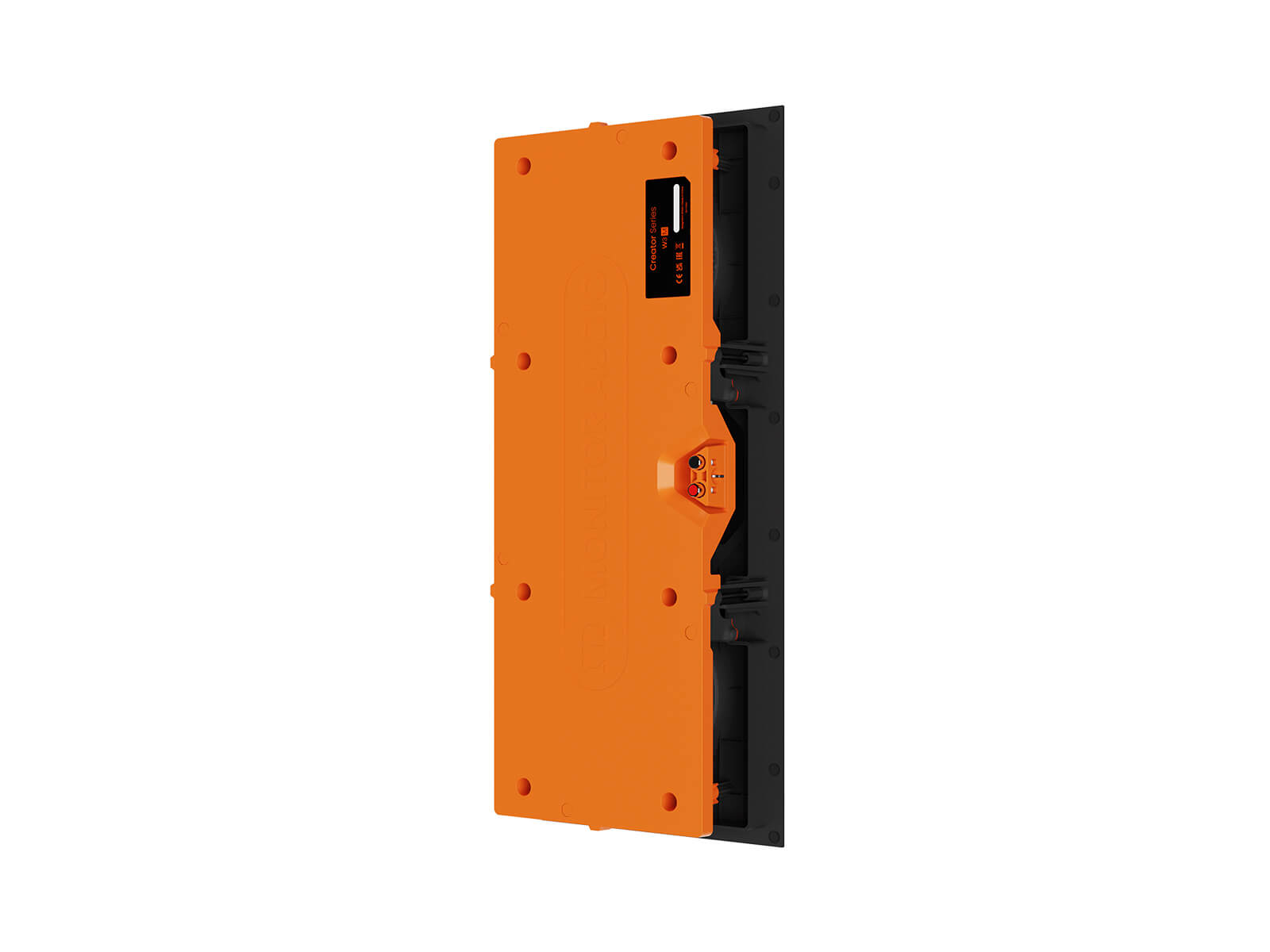

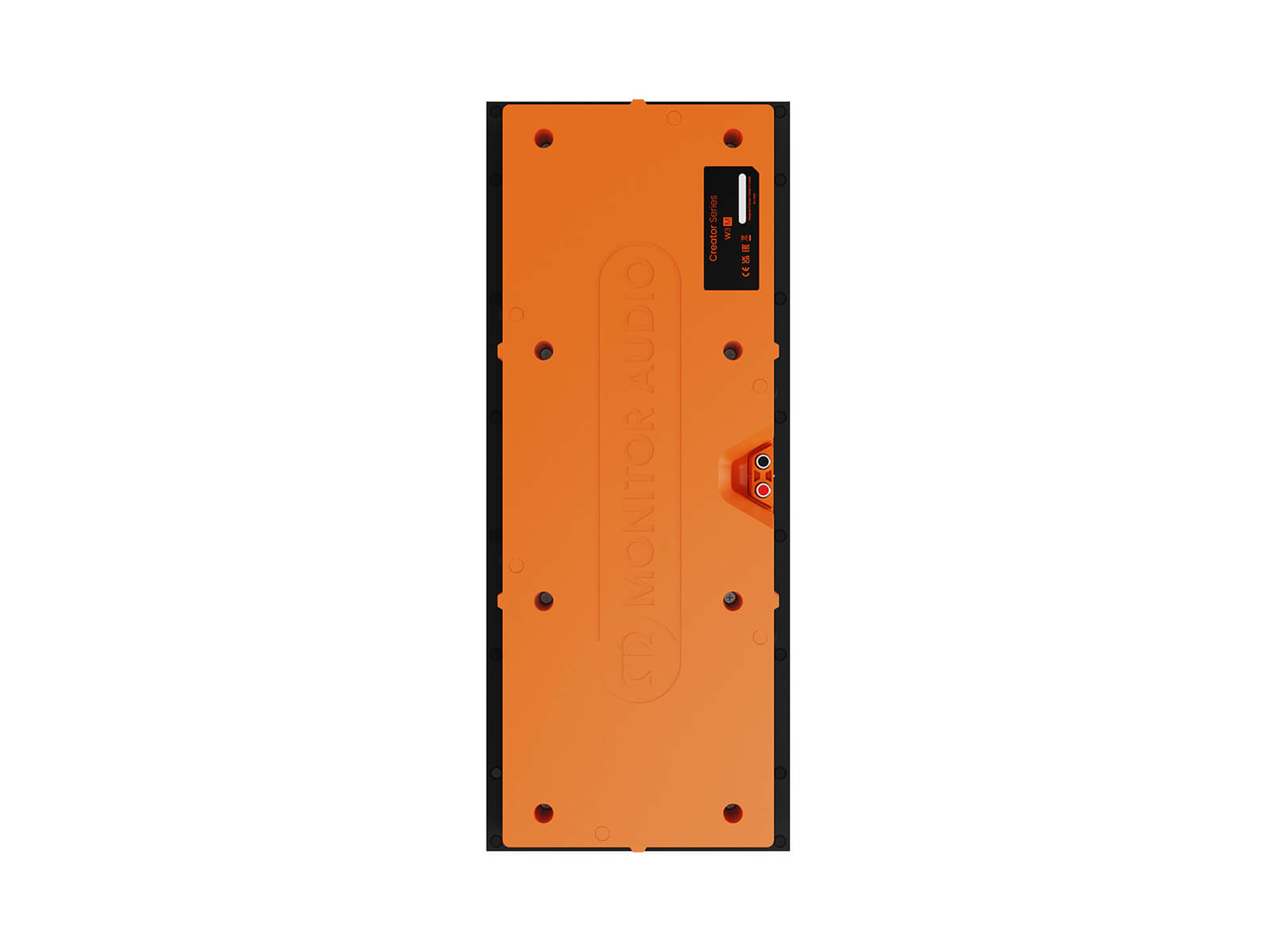

It has a cut out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Technical Specifications
System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz – 60 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.8 Ohm @ 150 Hz
Sensitivity (2.83Vrms@1m, Installed)
88 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
122 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 225 W
Drive Unit Complement
2 x 5" (127 mm) RDT III bass driver
1 x 3" (76 mm) C-CAM midrange driver
1 x MPD II transducer
Crossover Frequency
LF/HF: 650 kHz
MF/HF: 3.5 kHz
Mounting Depth
85 mm (33/8")
Cutout L x W
527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille (H x W x D))
540 x 211 x 90 mm (211/4 x 85/16 x 39/16")
Weight (each)
4.7 kg (10 lb 6 oz)
Pre-Construction Bracket
WM-B
Cabinet Finish
Matt black & Orange & Green
Sold As
Single Unit
Corner Switch
On/Off
MF Switch
- /0/ +
HF Switch
- /0/ +
Product Features
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- 1 x MPD II transducer for breathtakingly precise high-frequency performance
- 1 x 3" (76 mm) C-CAM midrange driver
- 2 x 5" (127 mm) RDT III bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation
- Tri-Grip II for easy and secure fitment
