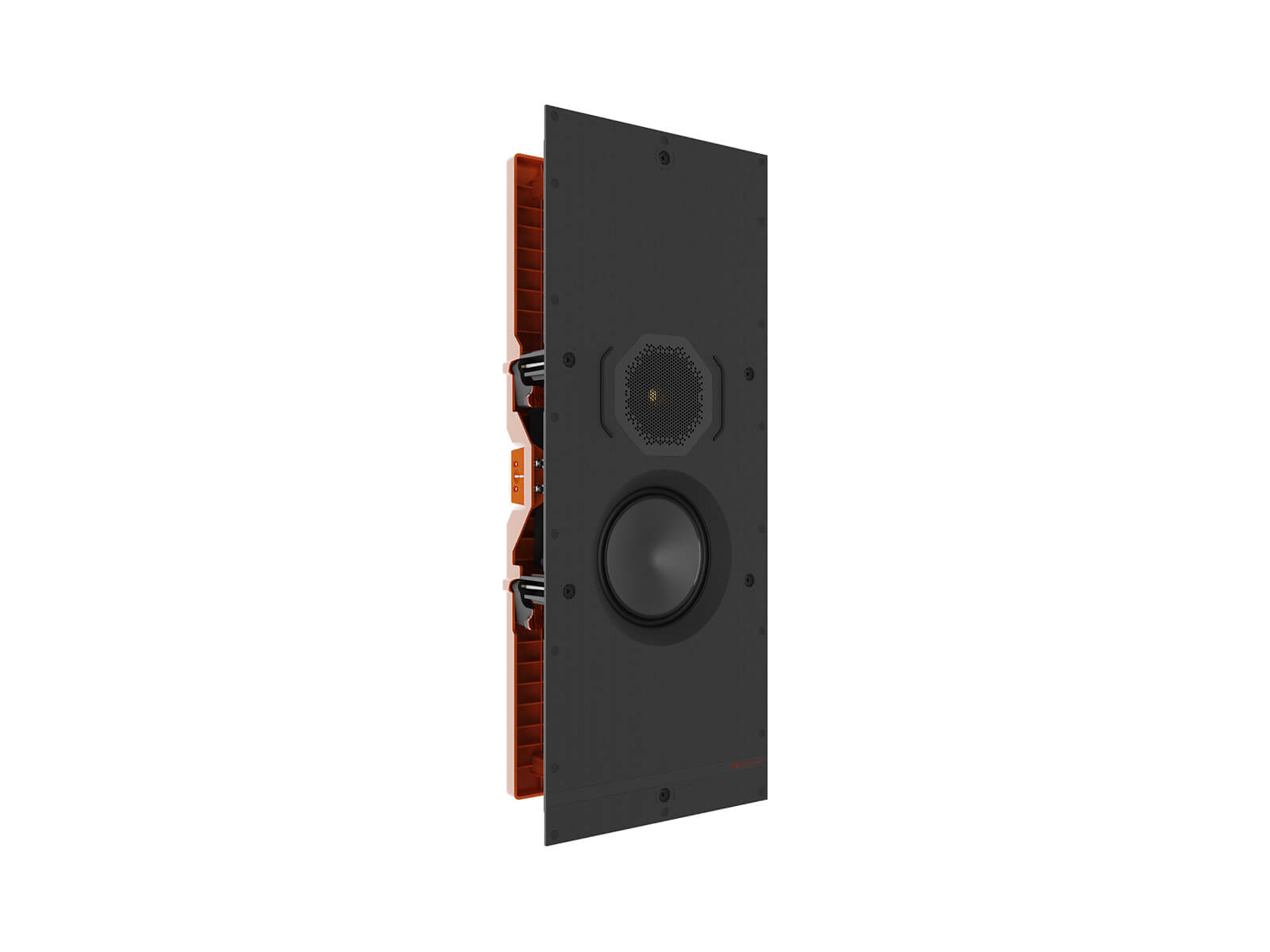

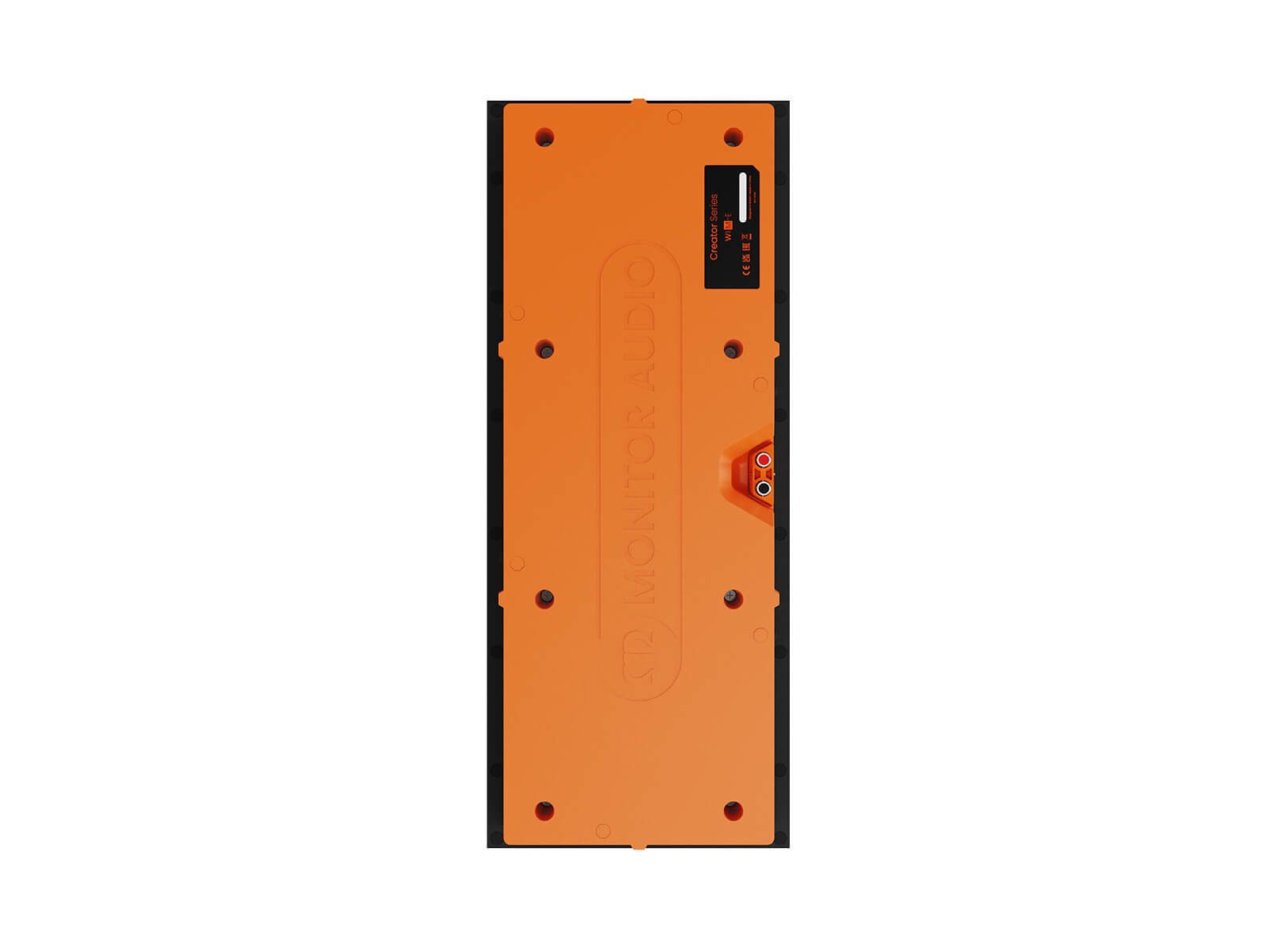

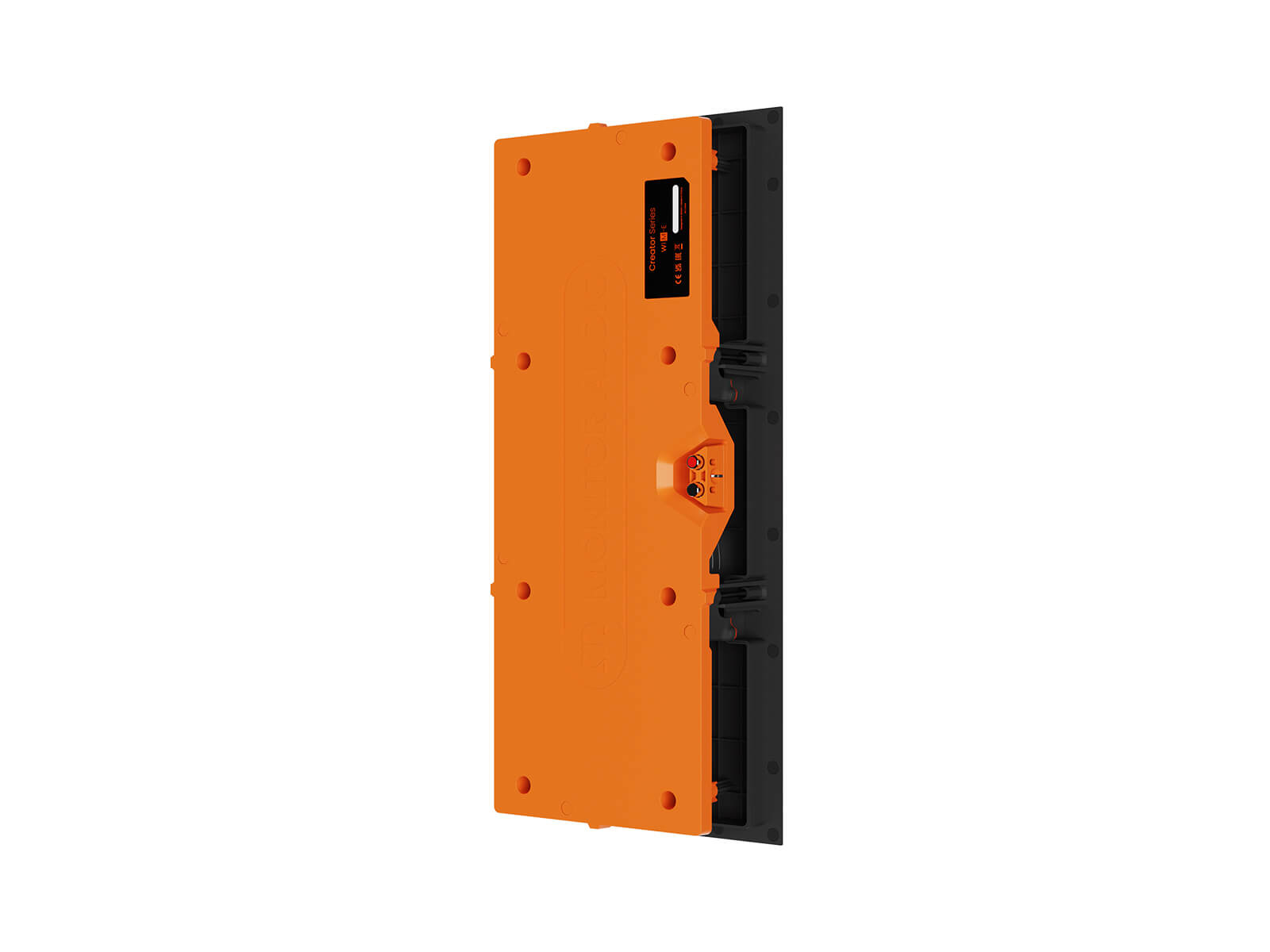

Creator Series W1M-E In-Wall Medium

Product Ref: SCSW1ME

This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Technical Specifications

System Format

2–Way

Channels

1

Frequency Response, Installed (-6dB)

40 Hz – 30 kHz​

Nominal Impedance

8 ohm

Minimum Impedance (20Hz to 20kHz)

6.5 Ohm @ 200 Hz
(6.2 Ohm @ 20 kHz)

Sensitivity (2.83Vrms@1m, Installed)

84 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

110 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

50 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

25 – 100 W

Drive Unit Complement

1 x 5" (127 mm) C-CAM mid-bass driver
1 x 1" (25 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 2.5 kHz

Mounting Depth

85 mm (33/8")

Cutout L x W

527 x 198 mm (203/4 x 713/16")

External Dimensions (Including Grille (H x W x D))

540 x 211 x 90 mm (211/4 x 85/16 x 39/16")

Weight (each)

2.6 kg (5 lb 11 oz)

Pre-Construction Bracket

WM-B

Cabinet Finish

Matt black & Orange​

Sold As

Single Unit

Product Features

  • Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
  • Two-way design
  • 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
  • 1 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment
