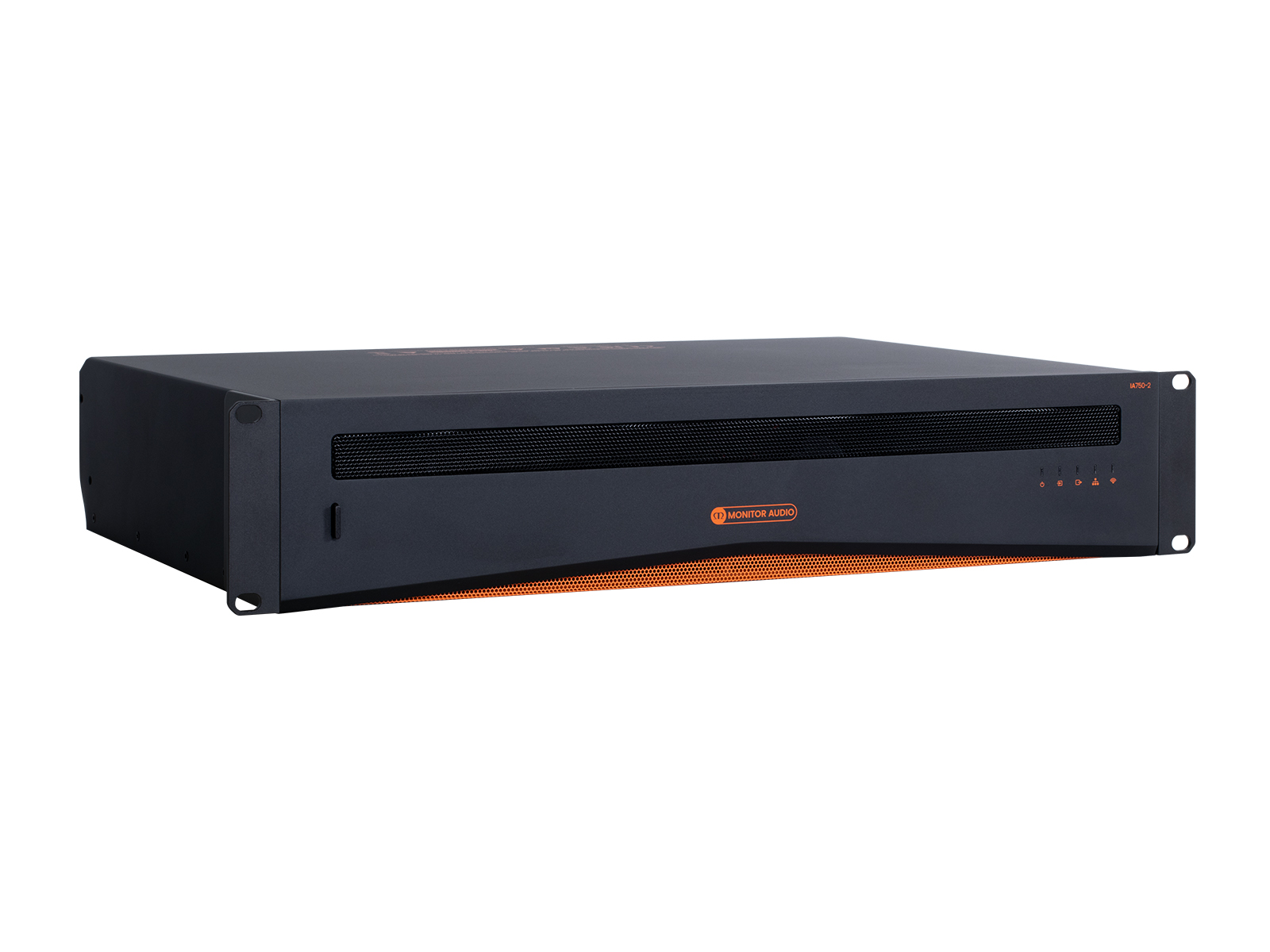

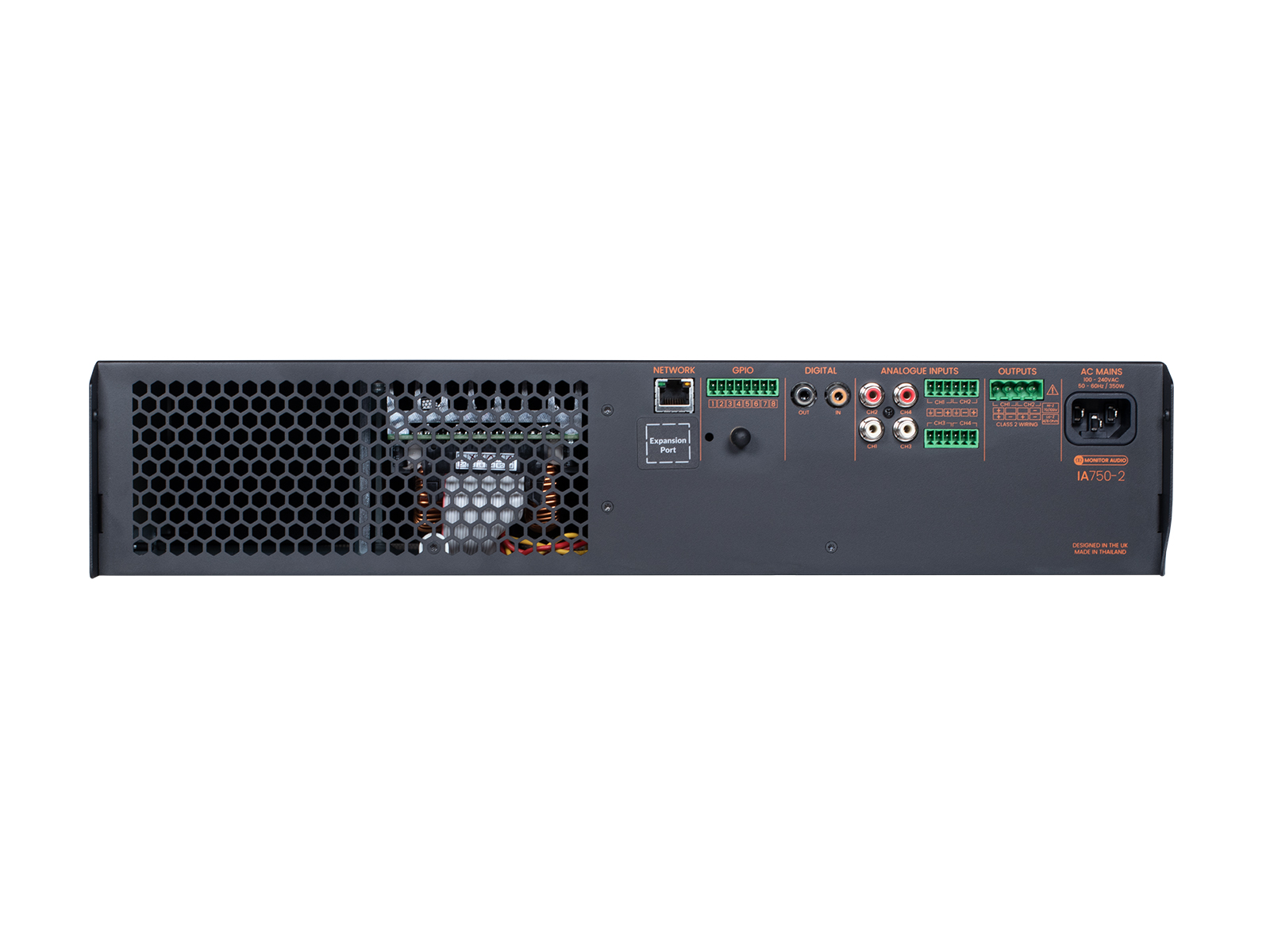

CI Amp IA750-2
Product Ref: IA7502
The IA750-2 is perfect for larger installations and outdoor systems. It offers two channels of 750 W each, plus it is ideal for subwoofer installations thanks to its power sharing technology where it can deliver 1500 W to Monitor Audio’s Cinergy Sub15. A 2U full width high power amplifier, it features full DSP matrix configuration using a web app configurator and is a breeze to install and use.
Technical Specifications
Channels
2
Output Power @ 2 Ohms
2 x 750W SE
Output Power @ 4 Ohm
2 x 750W SE, 1 x 1500W BTL
Output Power @ 8 Ohm
2 x 400W SE, 1 x 1500W BTL
Output Power @ 70V
1 x 1200W BTL
Output Power @ 100V
1 x 1500 W BTL
Maximum Total Output Power, all channels driven
1500 W
Power Consumption
350 W
Thermal Output
1200 BTU
Polarity (Default)
Non-inverting
Dimensions
88 x 440 x 329 mm (36/16 x 175/16 x 1215/16”)
Output Voltage
80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded)
Signal to Noise Ratio
>108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load)
THD+N (typical)
<0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power)
Frequency Response
+0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power
Protection Circuits
Short circuit -, DC, Undervoltage -, Temperature – and Overload protection
Power Supply
Switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating Voltage/Frequency
Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
Standby Consumption
<0.5W
Accessories
Rack mount kit (pre-installed)
Power Ratings
1% THD @ 120Vac and 230Vac
Cabinet Finish
Black Anodised
Product Features
- 2 x 750 W
- Fully customisable DSP amplifier with web configurator
- Full width 2U rack format
- High performance Class D amplifiers ensure excellent power and sound delivery
- Power Sharing technology
- Supports 70/100V line level speakers
