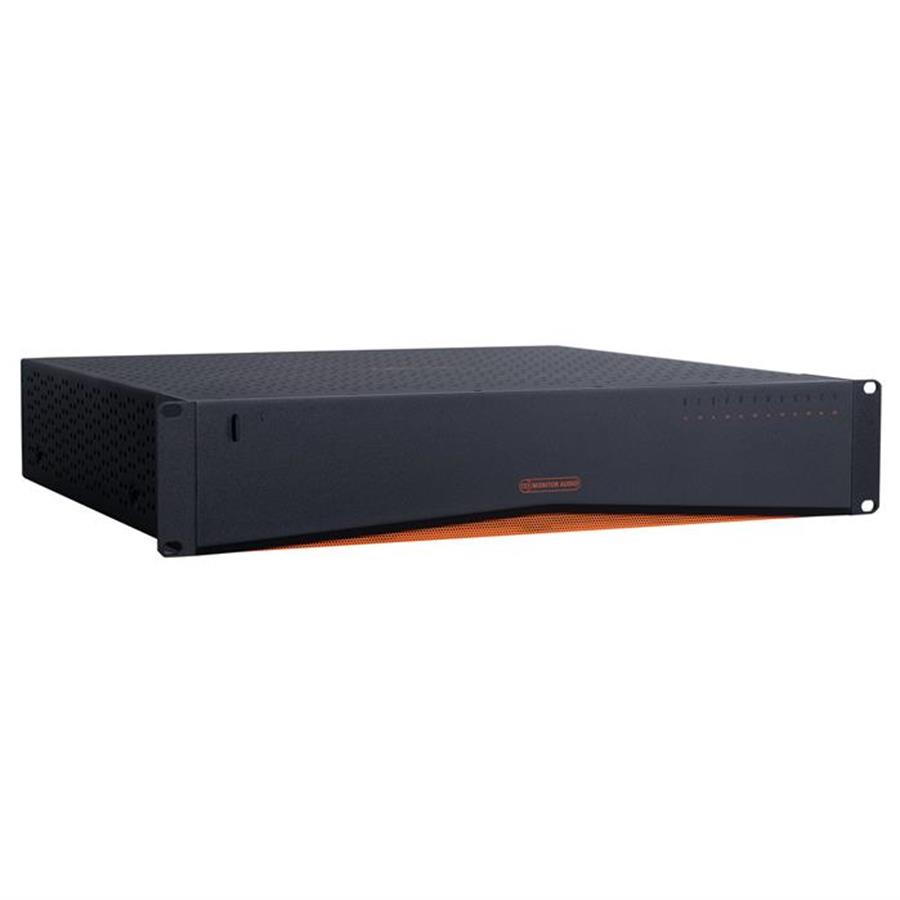

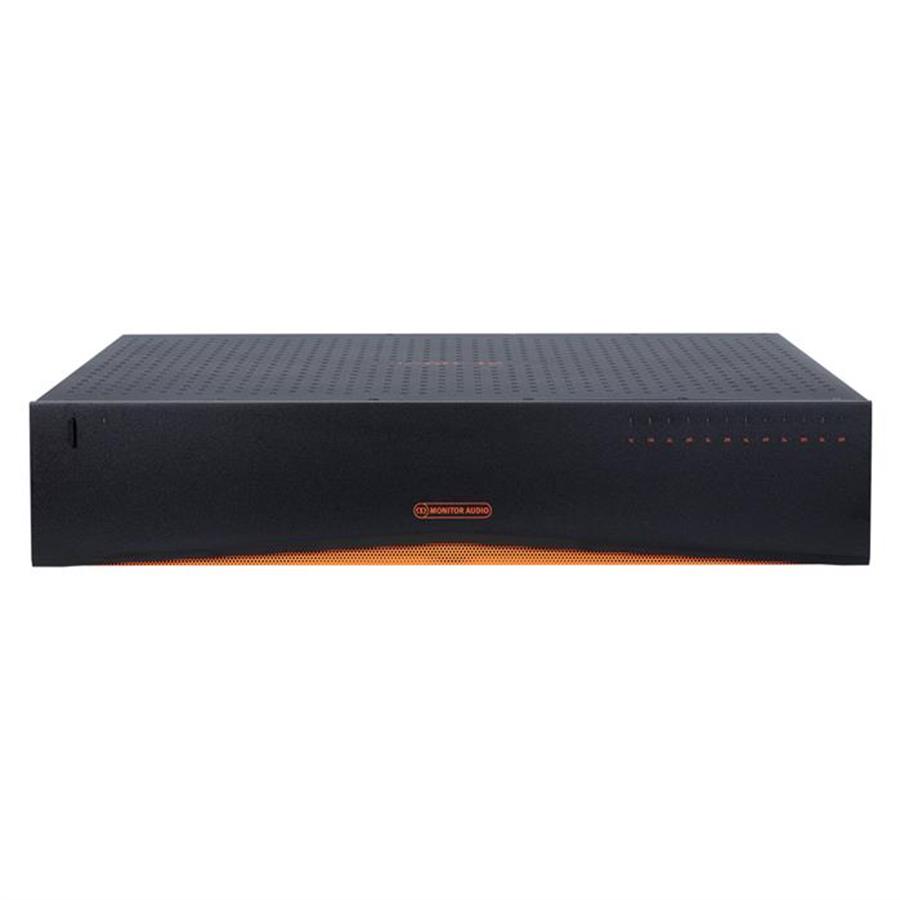

CI Amp IA60-12
Product Ref: IA6012
The IA60-12 powers up to 12 channels (6 stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology, this model takes our unrivalled experience of the custom installation sector, and delivers an audio engine ready to excel.
Technical Specifications
'Connect' IP Control
N/A
Channel Number
12 (6 Stereo Pairs)
Power (W / Channel) | 4 ohms
60 W
Power (W / Channel) | 8 ohms
45 W
Power (W / Channel) | Bridge (8 ohms)
100 W (6CH)
Power (W / Channel) | 70V
N/A
Input Impedance
20 K ohms
Output Impedance (Loop RCA)
600 ohms
Input Sensitivity
100 mV / 1 W, 700 mV – Full power
Maximum Input Voltage
2.9 V
Signal to Noise (SN:R)
-100 dB (20 Hz – 20 kHz)
Frequency Response
5 Hz – 50 kHz
Total Harmonic Distortion THD + N@1 KHz
0.03%
Rack Height
2U
Dimensions (Excluding Feet (H x W x D))
86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16")
Dimensions (Including Feet (H x W x D))
97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16")
Width (including rack brackets)
482 mm (19")
IP Communication
N/A
Mains Operating Voltage
100 –120 V @ 60 Hz
220 – 240 V @ 50 Hz
Fuse Rating
10 A (T10AL ~ 250VAC)
Standby Power Consumption
<0.5 W (green mode)
Networked Standby Power Consumption
N/A
Weight
7.34 kg (16 lb 2 oz)
Sold As
Single Unit
Product Features

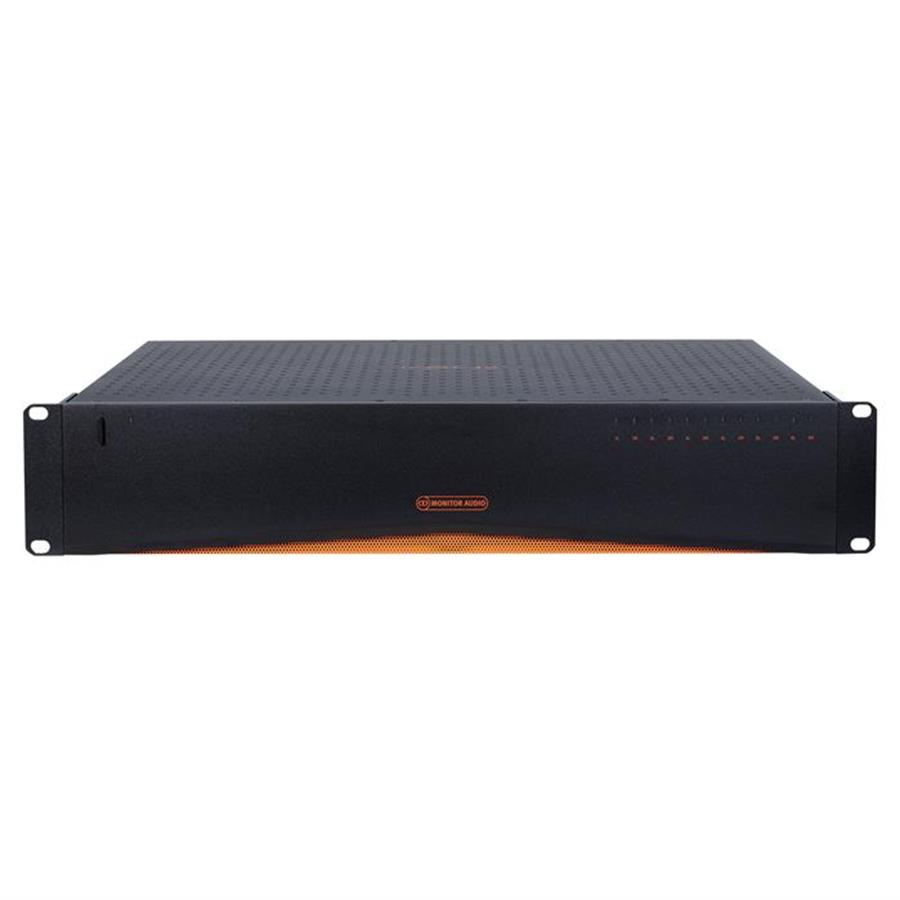

From our line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.

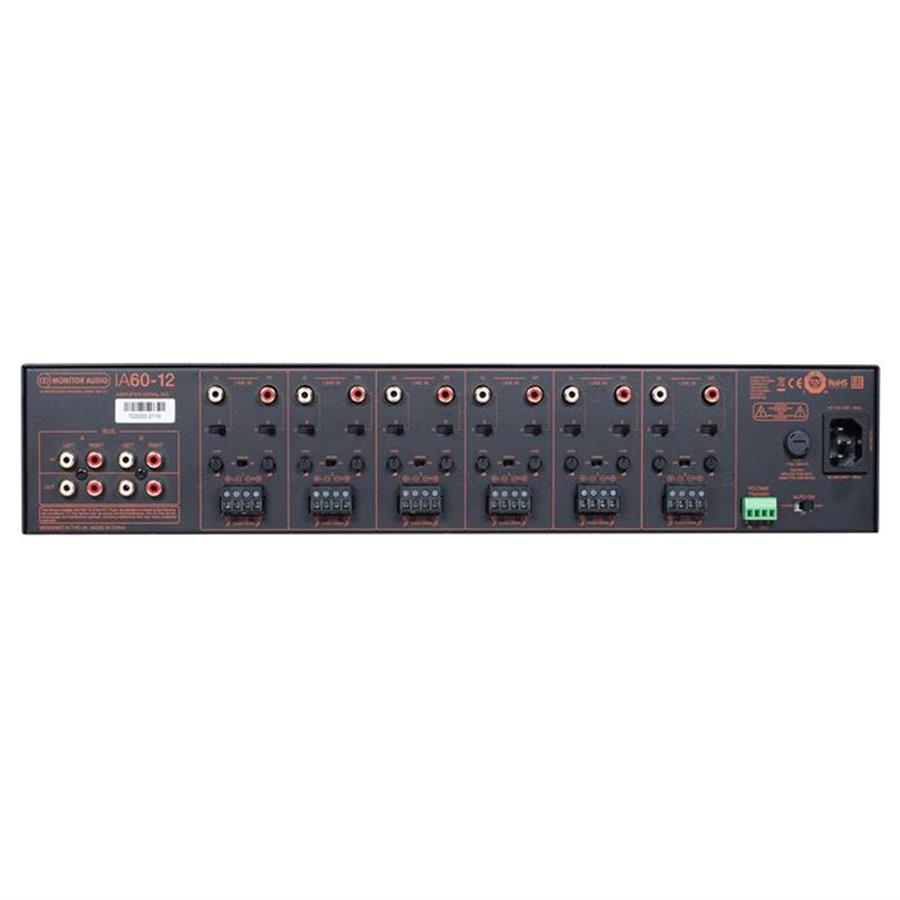

This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully your project.
