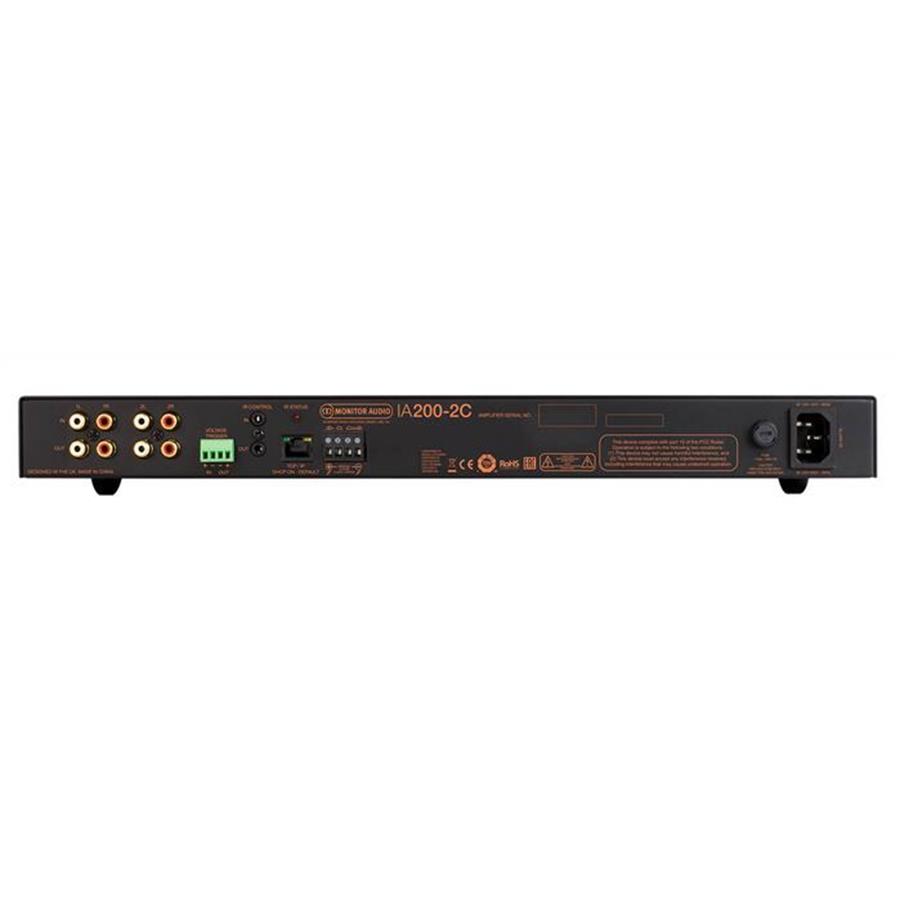

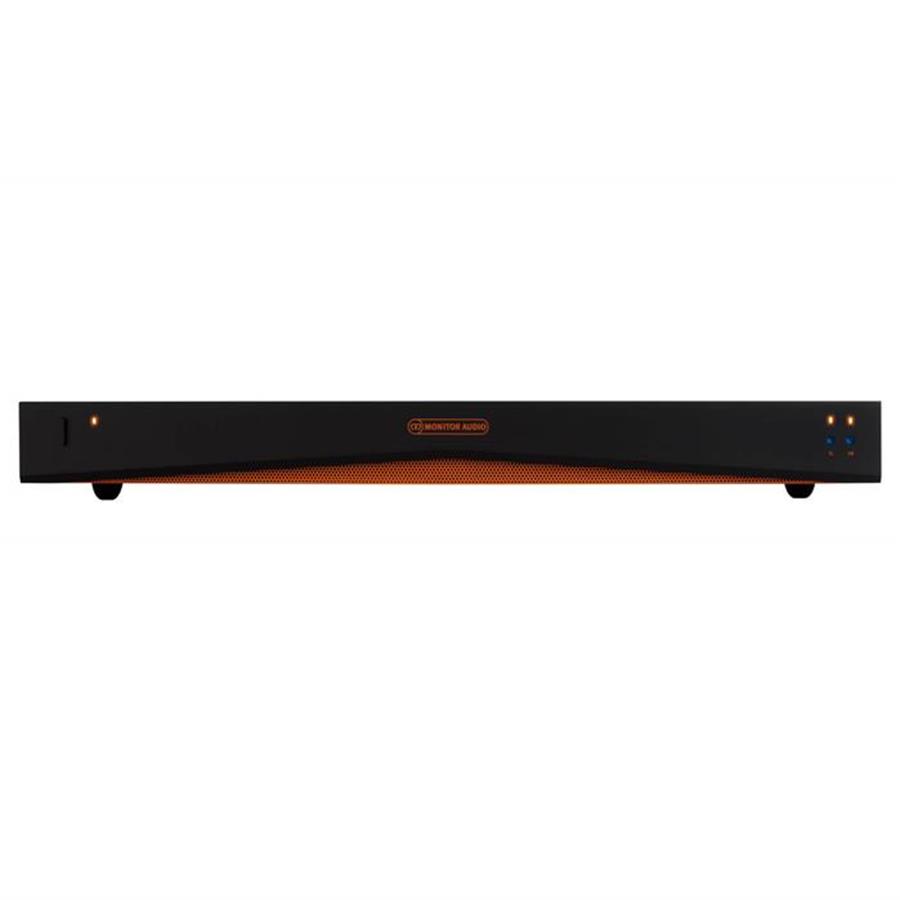

CI Amp IA200-2C +Connect

Product Ref: IA2002C

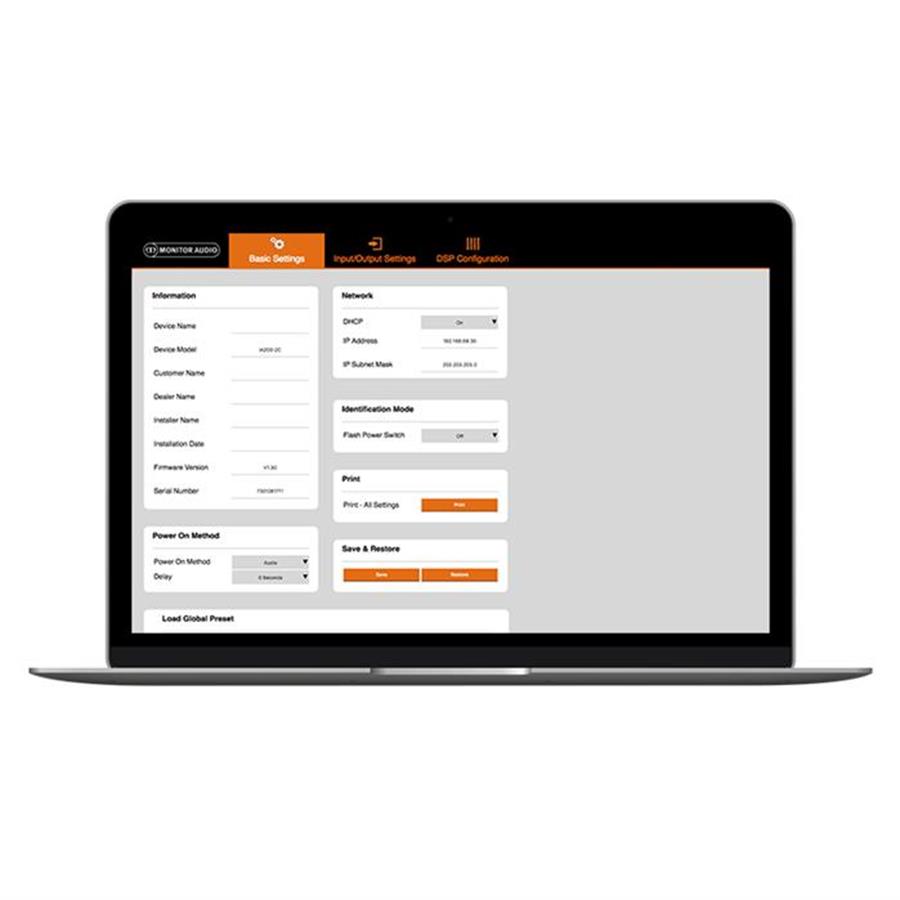

The IA200-2C Installation Amplifier supplies up to 200 watts per channel at 4 ohms. As a Monitor Audio ‘Connect’ amplifier, it utilises our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

A slim 1U rack height, it universally fits into most racks whilst delivering 93% energy efficiency. The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. A visual match for the rest of the Monitor Audio Installation Amplifier line, the IA200-2C is ready for any project.

Technical Specifications

'Connect' IP Control

Yes

Channel Number

2 (1 Stereo Pair)

Power (W / Channel) | 4 ohms

200 W

Power (W / Channel) | 8 ohms

150 W

Power (W / Channel) | Bridge (8 ohms)

470 W (1CH)

Power (W / Channel) | 70V

N/A

Input Impedance

20 K ohms

Output Impedance (Loop RCA)

600 ohms

Input Sensitivity

100 mV / 1 W, 1230 mV – Full power

Maximum Input Voltage

2.9 V

Signal to Noise (SN:R)

-100 dB (20 Hz – 20 kHz)

Frequency Response

5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz

0.03%

Rack Height

1U

Dimensions (Excluding Feet (H x W x D))

42.4 x 438 x 427 mm (111/16 x 171/4 x 1613/16")

Dimensions (Including Feet (H x W x D))

52.8 x 438 x 427 mm (21/16 x 171/4 x 1613/16")

Width (including rack brackets)

482 mm (19")

IP Communication

TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage

100 – 120 V @ 60 Hz
220 – 240 V @ 50 Hz

Fuse Rating

5 A (T5AL ~ 250VAC)

Standby Power Consumption

<0.5 W (green mode)

Networked Standby Power Consumption

<2 W

Weight

5.3 kg (11 lb 10 oz)

Sold As

Single Unit
