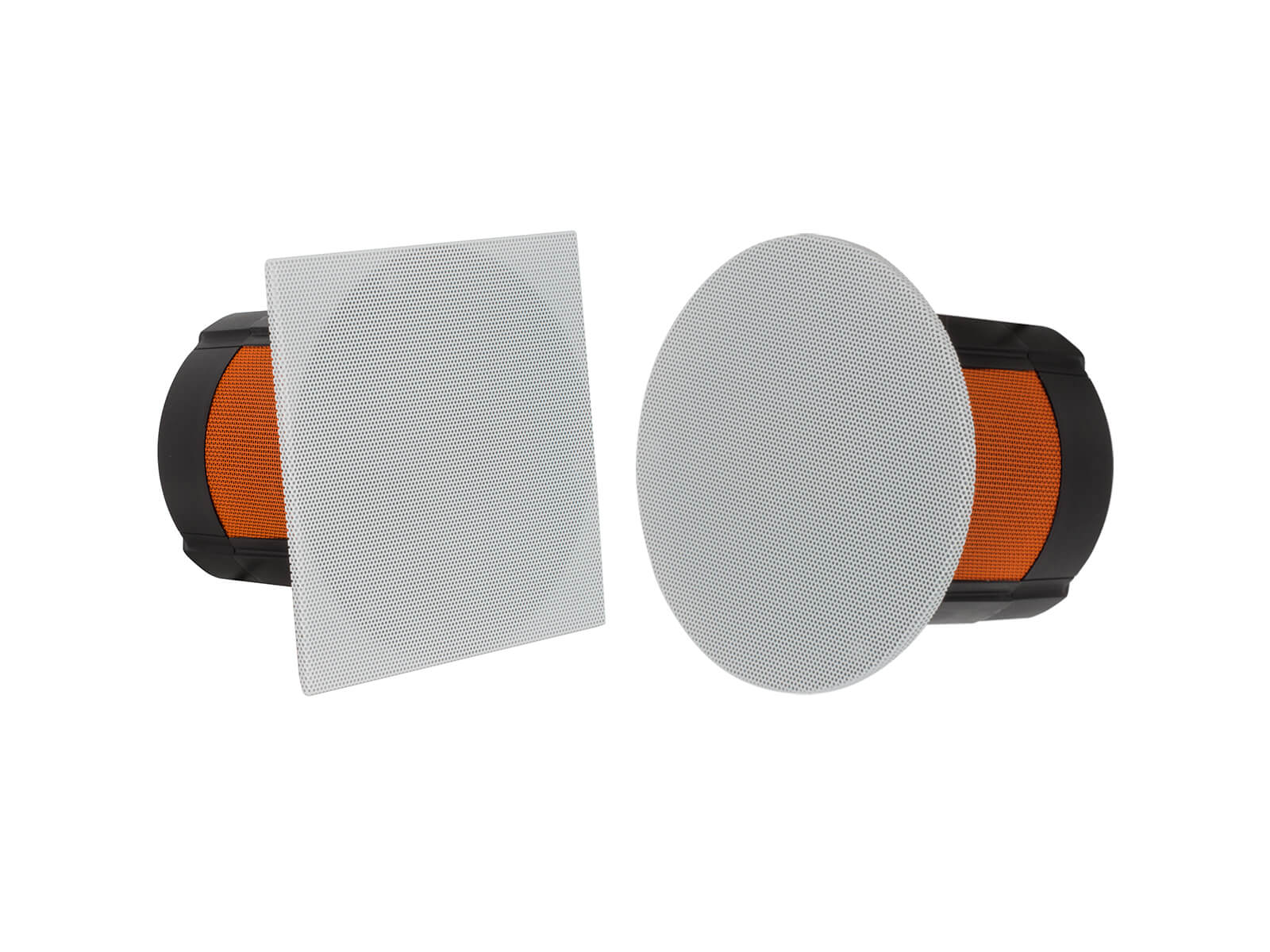

CF230 Mini In-Ceiling
Product Ref: SCF230
MPN: SCF230
The CF230 is Monitor Audio’s most visually discreet speaker system, providing an abundance of design possibilities for integrators, architects and installers. Its ingeniously designed retrofit and pre-construction make it a dream to install, while its C-CAM-based driver array delivers the superb audio this British maker is famed for.
Technical Specifications
Frequency Response (-6 dB)
100 Hz – 25 kHz
Sensitivity (1W@1M)
82.5 dB
Nominal Impedance
8 ohms
Maximum SPL
98 dBA (each – full range)
103.3 dBA (each – Using crossover)
Power Handling (RMS)
30 Watts (full range – IEC268-5 rating)
100 Watts Music program (Using High Pass crossover filter @120 Hz)
Recommended Amplifier Requirements
10-30 Watts (full range)
10-100 Watts (Using High Pass crossover filter @120 Hz)
Drive Unit Complement
3" Bass/mid-range driver, featuring C-CAM cone. Coincident mounted 19 mm tweeter with C-CAM Gold Dome
Overall Diameter (Including Grille)
112 mm (47/16")
Mounting Depth
81.5 mm (3 3/16")
Cut-Out Hole Diameter
Flush 120 mm (43/4")
Retrofit 90 mm (39/16")

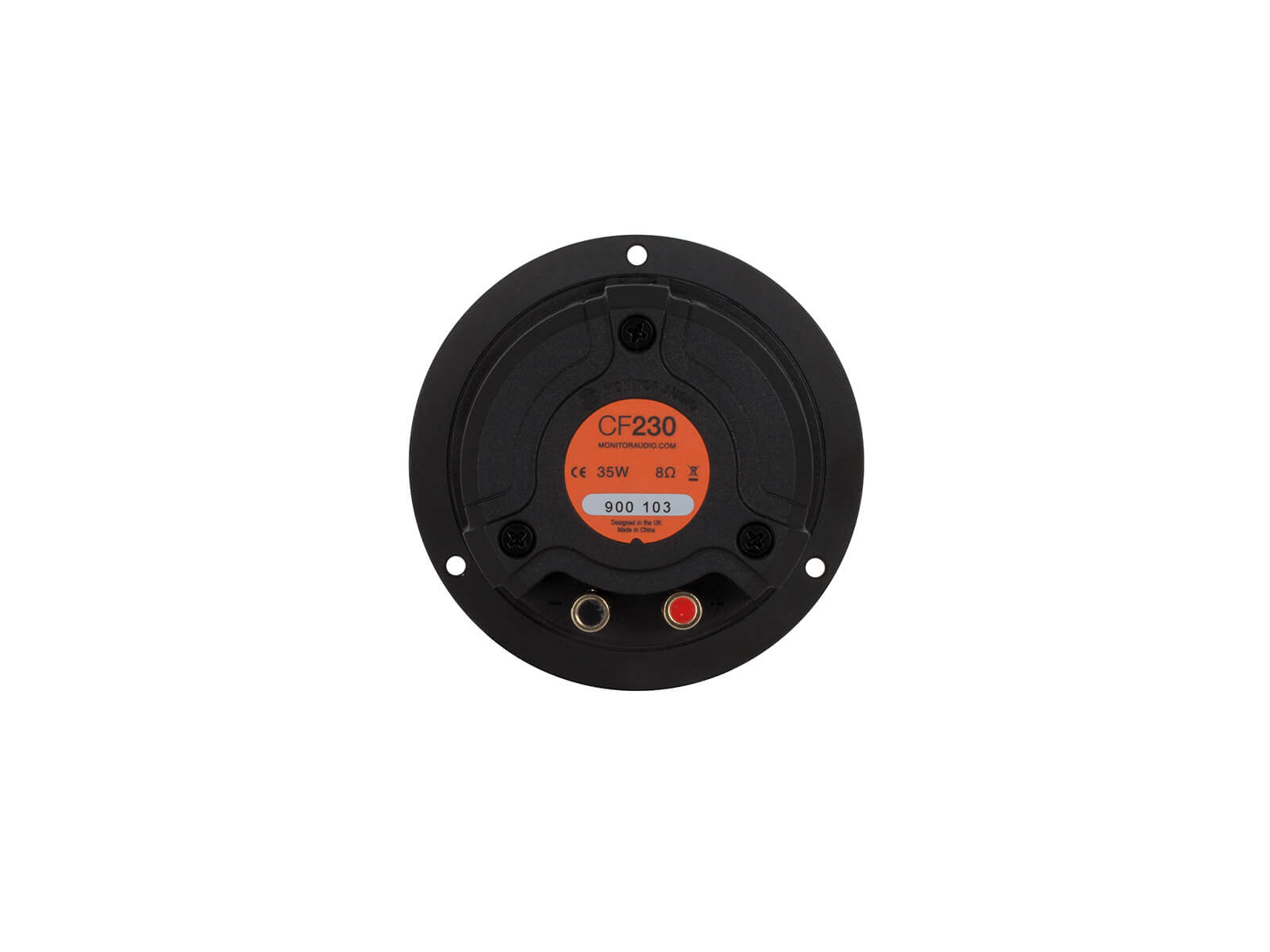

Connection
Sprung push type terminals – Gold plated
Weight
0.44 kg (1 lb)
Colour / Finish
White grille - paintable
Pre-Construction Bracket
Flush Fit - CFB3-R Pre-Construction Bracket (round) and CFB3-SQ Pre-Construction Bracket (square)
Retrofit - CFB3-KIT Bracket
Pre-construction bracket – Pink (included in above kits)
Sold As
Single Unit
