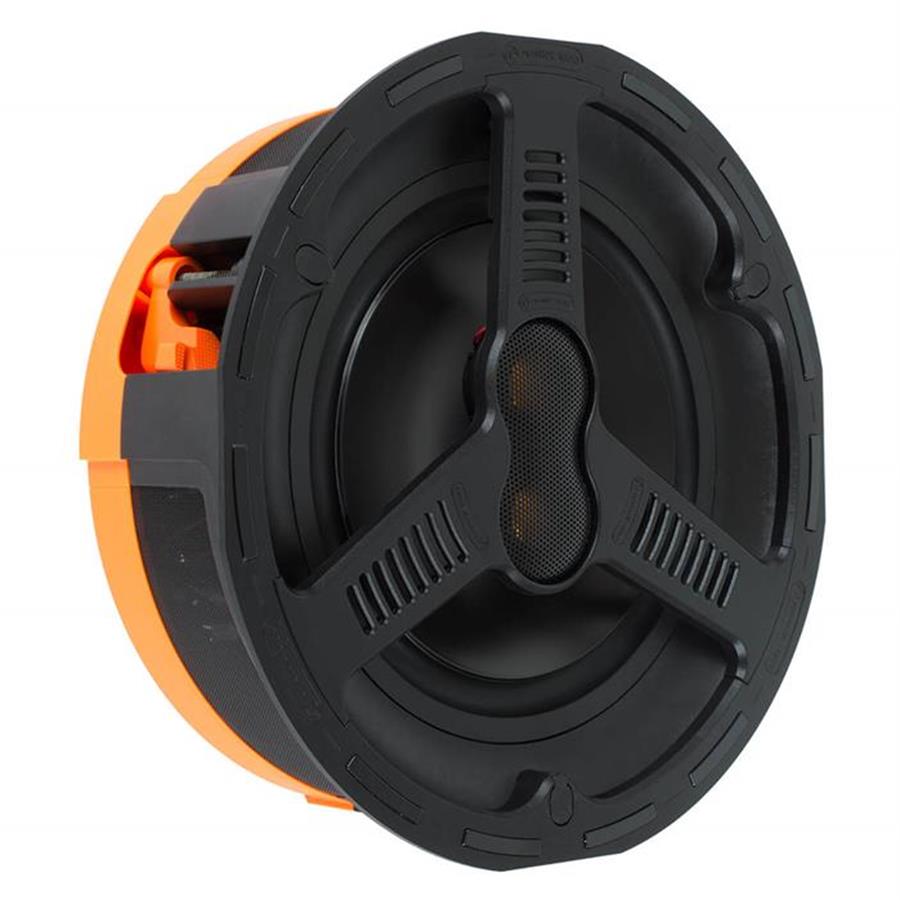

All Weather In-Ceiling AWC280-T2

Product Ref: SAWC280T2

Anodised black for stealthy in-wall/ceiling integration, the C-CAM bass drivers combine co-axially with Monitor Audio’s renowned 1" C-CAM tweeters, which are twinned and angled on the AWC280-T2 to deliver high performance stereo sound from a single unit where space is limited.

Technical Specifications

Frequency Response

50 Hz — 30 kHz

Sensitivity (1W@1M)

88 dB (both channels driven)

Nominal Impedance

8 + 8 ohms

Maximum SPL

109 dBA

Power Handling (RMS)

100 W

Recommended Amplifier Requirements

20 — 100 W

Drivers

8" C-CAM cone bass driver
2 x 1" C-CAM Gold Dome tweeters (fixed angle)

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation

Connection

2 x (2 pairs) Gold plated push style terminal

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

102.5 mm (41/32")

Cut-Out Hole Diameter

247 mm (93/4")

Mounting Depth

97.6 mm (37/8")

Optional Square Grille - Outer Dimensions

285 x 285 mm (111/4")

Fixing Type

3 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)

Grille

SS430 Stainless Steel

Magnets

Samarium Cobalt

Operating Temperature Range

-34° to 79° C -29° to 174° F

Weight

2.8 kg (6 lb 2 oz)

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CCBOX-R | CMBOX-R

Sold As

Single Unit

Product Features

Technology

  • High Performance C-CAM bass and high frequency drivers
  • Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
  • Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
  • IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
  • Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
  • EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
  • Gold plated push terminals with silicon cover
  • Stainless fixing screws with Silicone covers
  • Tweeter level attenuation (internal) – set prior to installation
  • Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
