Blustream Digital to Analogue Audio Converter (DAC)

Product Ref: DAC12AU

The DAC12AU is designed to convert either coaxial or optical signals from a digital signal to analogue stereo audio.

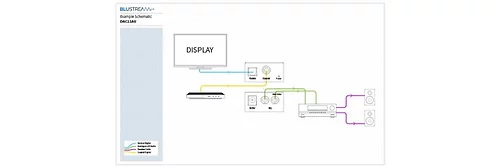

The DAC12AU also includes a digital converter which converts optical audio in to a coaxial digital output. This provides the perfect cost effective solution when connecting the digital audio output from a TV display to an analogue input on an amplifier.

The DAC12AU utilises 192kHz sample rates for enhanced sound reproduction.

Technical Specifications

  • Audio Input Connectors: 1 x optical digital & 1 x coaxial RCA (S/PDIF)
  • Audio Output Connectors: 2 x Analogue stereo left / right & 1 x Coaxial RCA (S/PDIF)
  • Dimensions (W x H x D): 50mm x 26mm x 42mm
  • Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
  • Shipping Weight: 0.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC

Product Features

  • Digital to Analogue audio Converter) converts either optical or coaxial digital to analogue stereo left / right audio output
  • Converts optical digital audio input to coaxial digital audio output
  • Auto-detects digital connection in use
  • Optical digital input has priority over coaxial digital input
  • Outputs coaxial digital and analogue L/R audio concurrently*
  • Supports sample rates 32 kHz, 44.1kHz, 48 kHz, 96 kHz & 192 kHz up to 24-bit resolution
  • Plug-and-play

    * DAC12AU does not down mix Dolby / DTS / multi-channel audio signals
