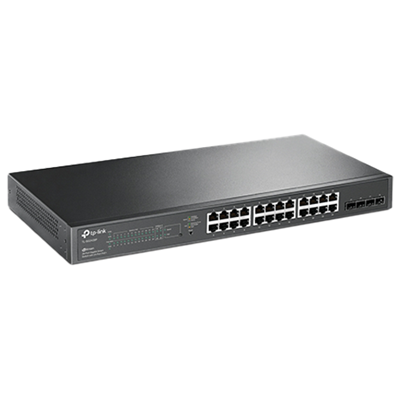

TP Link SL2428P Omada 24-Port 10/100Mbps Smart Switch with 24-Port PoE+ 250W
Product Ref: TL-SL2428P
MPN: 68158
- Twenty-four (24) 10/100Mbps Fast Ethernet ports.
- Four (4) 10/100/1000Mbps RJ45 uplink ports.
- Two (2) combo Gigabit SFP slots.
- Total PoE power budget of 250W.
- Integrated security strategy including 802.1Q VLAN, Port Security, and Storm control help protect LAN area investment.
- L2/L3/L4 QoS and IGMP snooping optimise voice and video applications.
- WEB/CLI managed modes, SNMP, RMON bring abundant management features.
- Dual Firmware Image improves the reliability and uptime of your network.
Technical Specifications
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface
- 24 x 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 4 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 2 x Combo Gigabit SFP Slots
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
Fan Quantity
Physical Security Lock
PoE Budget
Dimensions (W x D x H)
- 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
Mounting
Max Power Consumption
- 18.8 W (220 V / 50 Hz with no PD connected)
- 286.7 W (220 V / 50 Hz with 250 W PD connected)
Max Heat Dissipation
- 64.1 BTU/h (with no PD connected)
- 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected)
PERFORMANCE
Switching Capacity
Packet Forwarding Rate
MAC Address Table
Jumbo Frame
SOFTWARE FEATURES
Quality of Service
- 802.1p CoS/ DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Actions for flows
- Mirror(to supported interface)
- Redirect(to supported interface)
- Rate Limit
- QoS Remark
- Storm Control
- Multiple Control Modes(kbps/ratio/pps)
- Broadcast/Multicast/Unknown-Unicast Control
L2 Features
- Link Aggregation
- static link aggregation
- Up to 8 aggregation groups and up to 8 ports per group
- 802.3ad LACP
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
- Loopback Detection
- Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- CPU Mirroring
- Device Link Detect Protocol(DLDP)
L2 Multicast
- 512 IPv4,IPv6 shared multicast groups
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
- Static Group Config
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Multicast VLAN Registration
- Multicast Filtering
IPv6 Support
VLAN
- VLAN Group
- 802.1Q tag VLAN
- MAC VLAN
- Protocol VLAN
- GVRP
- Voice VLAN
Access Control List
- Support up to 230 entries
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
Security
- AAA
- 802.1X
- Port based authentication
- MAC(Host) based authentication
- Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
- MAB
- Guest VLAN
- Support Radius authentication and accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Gurad
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Gurad
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS1.0
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC based access control
Management
- Web-based GUI and CLI management
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- System Log
- 802.1ab LLDP/ LLDP-MED
MIBs
- MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
OTHERS
Certification
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC OS, NetWare, UNIX or Linux.
Environment
- Operating Temperature: 0ºC~50ºC (32ºF~122ºF);
- Storage Temperature: -40ºC~70ºC (-40ºF~158ºF)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
